Name:	009L7053 Danfoss Shut-off ball valve, GBC 16s
Brand:	Danfoss
Model No.:	GBC 16s
Part No.:	009L7053
Country of origion:	China
G.W:	0.306kgs/pc
Product Name Description:	Shut-off ball valve
Outlet size [in]:	5/8 in
Inlet size [in]:	5/8 in
Outlet size [mm]:	16.00
Inlet size [mm]:	16.00
Outlet connection type:	Solder, ODF
Inlet connection type:	Solder, ODF
Quantity per packing format:	25 pcs

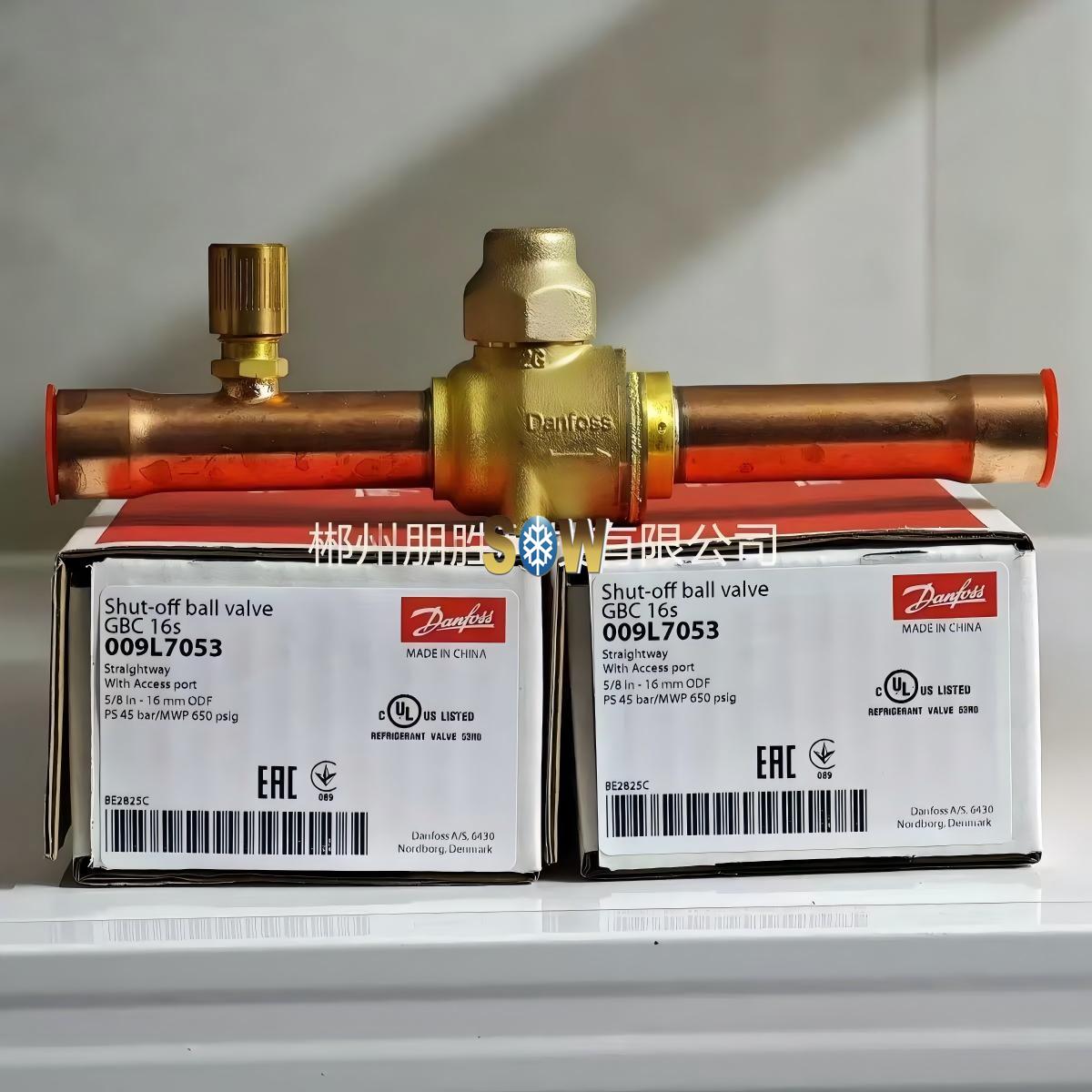

009L7053 Danfoss Shut-off ball valve, GBC 16s

Product details

Gross weight	0.306 Kilogram
Net weight	0.244 Kilogram

Volume	0.825 Liter
EAN	5702428007948

Access port	Yes
Approval	C UL US LISTED CE EAC UKCA
Body material	Brass
China RoHS compliance	Yes exceed limitations
Connection material	Copper
Cv value [gal/min]	18.1 gal/min
Direction	Straightway
Equipment	Cap w. wire seal
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Bi-flow
Flow direction indicator	Embossed 2-way arrow
Fluid Group	1 2
Ignition source assessment	Yes
In scope of WEEE and contain batteries	No
Inlet connection type	Solder, ODF
Inlet size [in]	5/8 in
Inlet size [mm]	16 mm
Kv value [m³/h]	15.66 m³/h
Max. media temp. Oil free [°C]	80 °C
Max. Working Pressure [bar]	45 bar
Max. Working Pressure [psig]	650 psig
Oil free refrigerants	R1234ze(E) R134a R513A R515B R516A

Outlet connection type	Solder, ODF
Outlet size [in]	5/8 in
Outlet size [mm]	16 mm
Packing format	Multi pack
Panel mounting option	M4 × 0.7 (2 PC)
Parts included	Schrader valve
PED category	Art. 4, par. 3
Product accessories	BM/GBC valve accessories
Product group	Shut-off and regulating valves
Product Name Description	Shut-off ball valve
Quantity per packing format	25 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1234ze(E) R134a R22/R407C R290 R32 R404A/R507A R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R515B R516A
SCIP dossier no.	4b2fe785-688b-4157-ad7e-68b26c6e3e7b
Serviceable	BM/GBC valve spare parts
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	-40 °F
Type	GBC 16s
UK RoHS compliance	Out of scope
UL approved refrigerants	R1234yf R1234ze(E) R134a R22 R290 R32 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R513A R515B R516A
