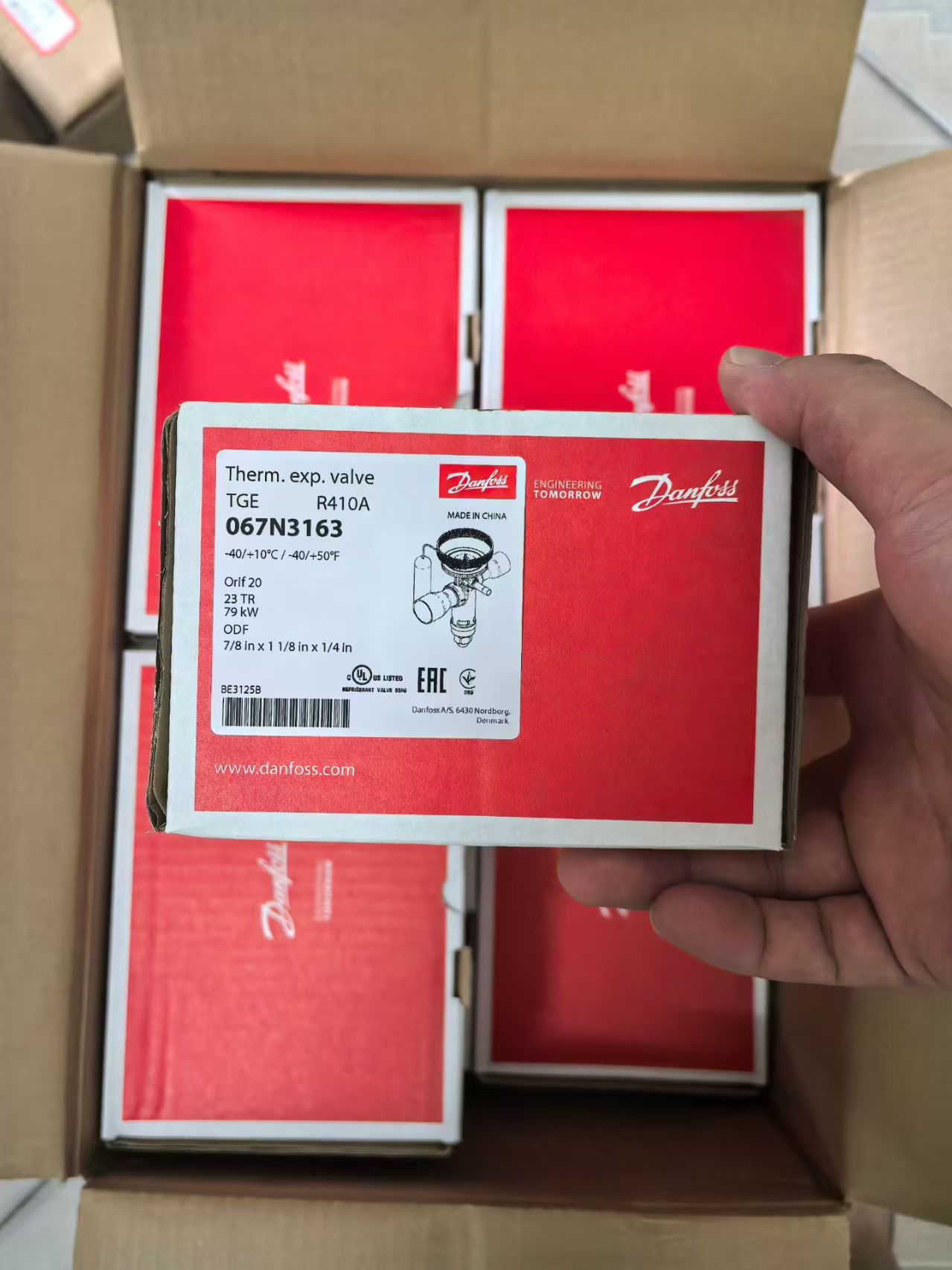

Name:	Danfoss Thermostatic expansion valve, TGE, R410A 067N3163
Brand:	Danfoss
Model:	TGEL23
Part No.:	067N3163
County of origion:	China
G.W:	0.775kgs/pc
Direction:	Straightway
Pressure equalization:	Externally equalized
Orifice capacities [TR]:	23.00
Orifice capacities [kW]:	79.00
Temperature range [°C]:	-40 - 10
Outlet size [in]:	1 1/8 in
Parts included:	Bulb strap
Connection material:	Copper

Danfoss Thermostatic expansion valve, TGE, R410A 067N3163

Product details

Gross weight	0.775 Kilogram
Net weight	0.65 Kilogram

Volume	2.437 Liter
EAN	5702428140980

Approval	C UL US LISTED EAC LLC CDC TYSK
Balanced port [Yes/No]	Yes
Body material	Brass
Capillary tube length [in]	59 in
Capillary tube length [mm]	1500 mm
China RoHS compliance	Out of scope
Connection material	Copper
Direction	Straightway
Element temperature max. [°C]	110 °C
Element temperature max. [°F]	230 °F
Equalization connection type	Solder, ODF
Equalization size [in]	1/4 in
EU RoHS compliance	Out of scope
Flow direction	Bi-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Identical product	067N3183
In scope of WEEE and contain batteries	No
Inlet connection type	Solder, ODF
Inlet size [in]	7/8 in
Max. Working Pressure [bar]	49 bar
Max. Working Pressure [psig]	711 psig
Orifice capacities [kW]	79 kW
Orifice capacities [TR]	23 TR
Orifice size	20
Outlet connection type	Solder, ODF

Outlet size [in]	1 1/8 in
Packing format	Multi pack
Parts included	Bulb strap
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Product group	Expansion valves
Product Name Description	Thermostatic expansion valve
Quantity per packing format	8 pc
Rated cap. cond. Range N [IMP]	tcond=100 °F tevap=40 °F tliq=98 °F
Rated cap. cond. Range N [SI]	tcond=38 °C tevap=4.4 °C tliq=37 °C
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R410A
SCIP dossier no.	d44ec740-dfe8-4c0a-9644-96406f010504
SCIP dossier product name	TGE
Serviceable	No
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [max]	10 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	50 °F
Temperature range [°F] [min]	-40 °F
Type	TGE
UK RoHS compliance	Out of scope
UL approved refrigerants	R410A
