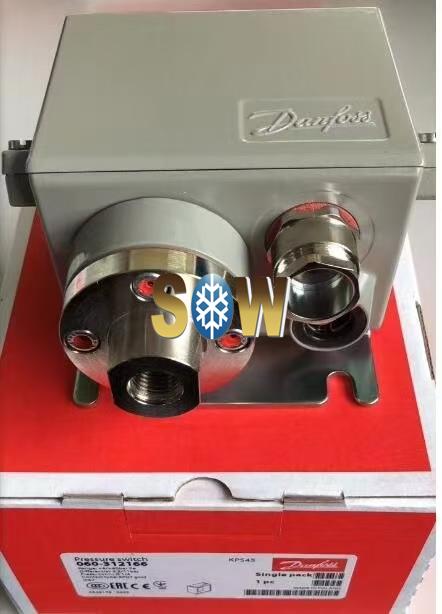

Danfoss 060-312166 Pressure Switch, KPS45, 32-160 psig Differential, -13-212F, G 1/5, KP Series

Product details

Gross weight	1.226 Kilogram
Net weight	1.092 Kilogram

Volume	2.403 Liter
EAN	5702423146949

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-25 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-13 °F
Approval	ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UKCA UL
Burst pressure [bar]	240 bar
China RoHS compliance	Yes
Contact function	SPDT gold
Contact rating	AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR max. 50 A for gold 1…30 mA, 5...30 V
Differential [bar] [max]	11 bar
Differential [bar] [min]	2.2 bar
Differential [psi] [max]	156 psi
Differential [psi] [min]	32 psi
Electrical conn. comments	Metal cable gland
Electrical conn. Male/Female	Female
Electrical connection	Screwed cable entry
Electrical connection size	Pg 13.5
Electrical connection standard	DIN 40430
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP67
EU RoHS compliance	Out of scope
EU RoHS exemption clause	6(a)
Identical product	060-410666
In scope of WEEE and contain batteries	No
Max. test pressure [bar] Pe	180 bar
Max. test pressure [psig]	2611 psig
