Product Description

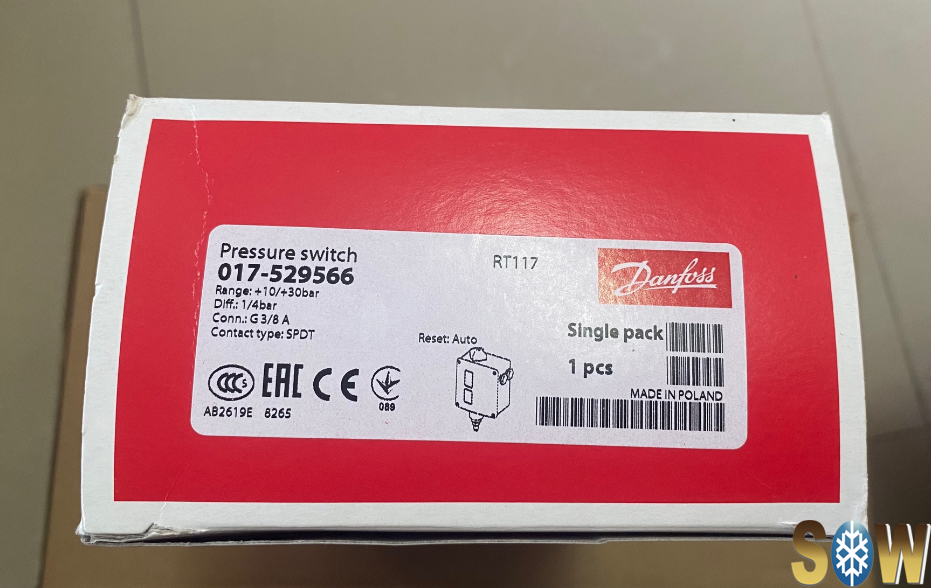

017-529566 RT117 Danfoss Pressure Switch 10 to 30 bar
Danfoss Pressure switch, RT117 017-529566
Regulation range [bar] Pe: 10.00 - 30.00, Differential [bar]: 1.00 - 4.00, Contact function: SPDT, Reset function: Auto, Pressure connection type: G, Pressure connection size: 3/8, Pressure Male/Female: Male, Enclosure rating IP: IP66, Max. Working Pressure [bar]: 42.0
Overview
Product details
Gross weight | 1.028 Kilogram |
Net weight | 0.902 Kilogram |
Volume | 2.766 Liter |
EAN | 5702423121342 |
Ambient temperature range [°C] [max] | 70 °C |
Ambient temperature range [°C] [min] | -50 °C |
Ambient temperature range [°F] [max] | 158 °F |
Ambient temperature range [°F] [min] | -58 °F |
Approval | BV CCC CE CMIM DNV EAC GL KR LLC CDC EURO-TYSK LR LVD NKK PZH RINA RMRS RoHS RoHS China TYSK UKCA |
China RoHS compliance | Yes |
Contact function | SPDT |
Contact rating | AC15=3 A, 400 V AC1=10 A, 400 V AC3=4 A, 400 V DC13=12 W, 220 V LR=28 A, 400 V |
Differential [bar] [max] | 4 bar |
Differential [bar] [min] | 1 bar |
Differential [psi] [max] | 58 psi |
Differential [psi] [min] | 14.5 psi |
EEE category | 5 small equipment (any external dimension |
Electrical conn. Male/Female | Female |
Electrical connection | Screwed cable entry |
Electrical connection size | 2xPg 13.5 |
Electrical connection standard | DIN 40430 |
Electrical spec. standard | EN 60947-4/-5 |
EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 10A |
EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 Flex, no ferrules: 0.2-2.5 mm2 Solid/stranded: 0.2-2.5 mm2 |
Enclosure rating IP | IP66 |
EU RoHS compliance | Yes |
EU RoHS exemption clause | No |
In scope of WEEE | Yes |
In scope of WEEE and contain batteries | No |
Max. test pressure [bar] Pe | 47 bar |
Max. test pressure [psig] | 682 psig |
Max. Working Pressure [bar] | 42 bar |
Max. Working Pressure [psig] | 610 psig |
Other RoHS documentation | Saudi Arabia RoHS |
Packing format | Multi pack |
Pressure connection size | 3/8 |
Pressure connection standard | ISO 228-1 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure sensing element | Bellows |
Product accessories | Switches accessories |
Product description | Pressure Switch |
Product group | Switches and thermostats |
Product Name Description | Pressure switch |
Quantity per packing format | 15 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R507C |
Regulation range [bar] Pe [max] | 30 bar |
Regulation range [bar] Pe [min] | 10 bar |
Regulation range [psig] Pe [max] | 435.1 psig |
Regulation range [psig] Pe [min] | 145 psig |
Reset function | Auto |
SCIP dossier no. | 54f3e4b2-77e8-4825-a1c1-c3d5ba584171 |
Serviceable | Contact systems |
Type | RT117 |
UK RoHS compliance | Yes |
UL approved refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R507C |
