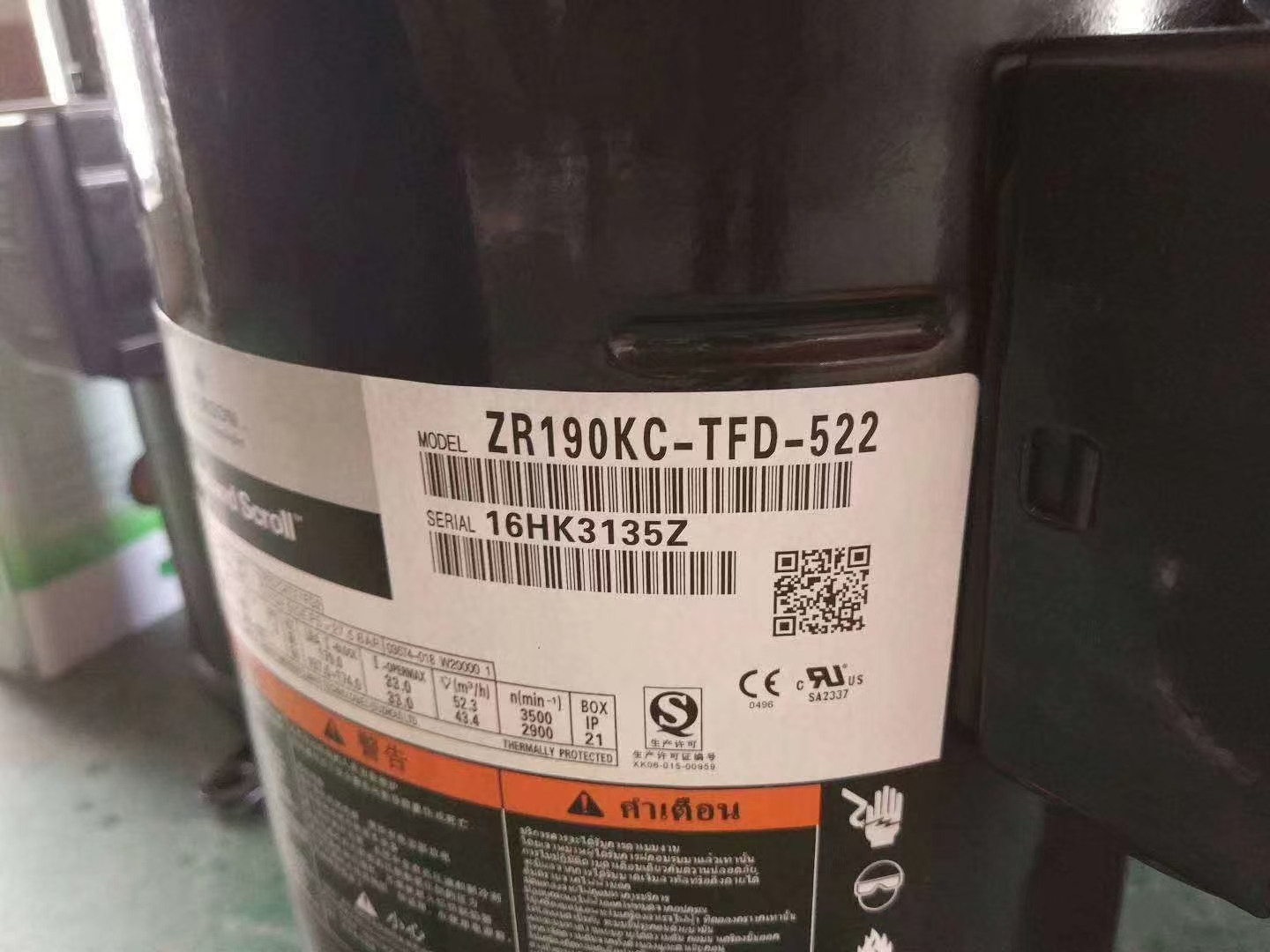

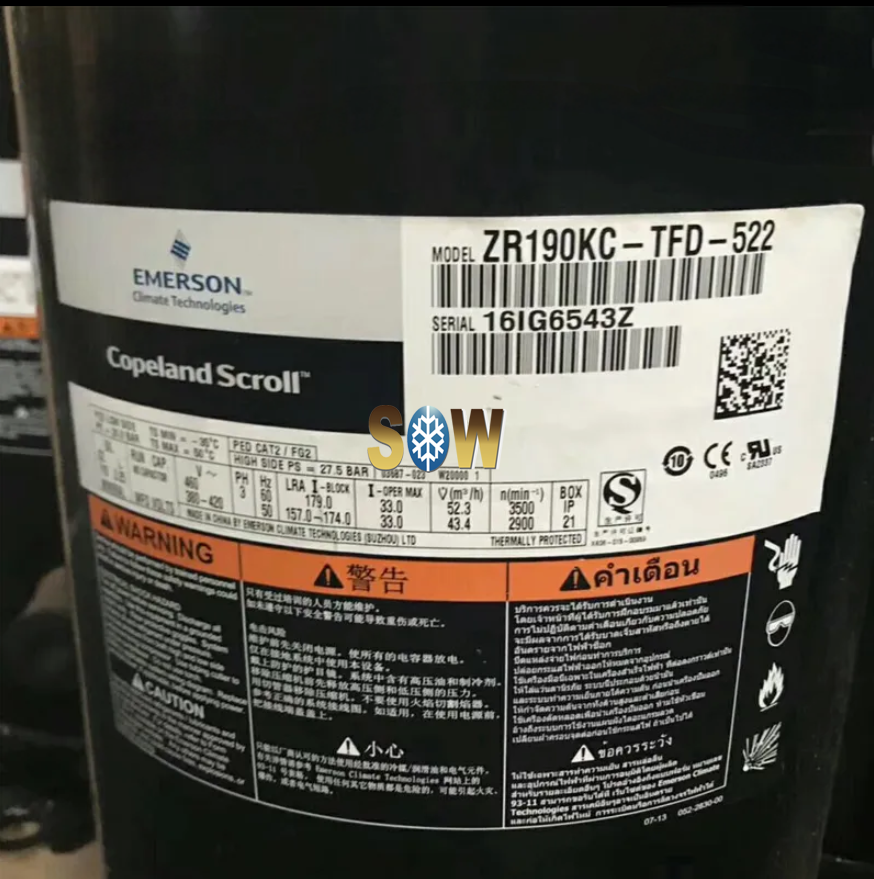

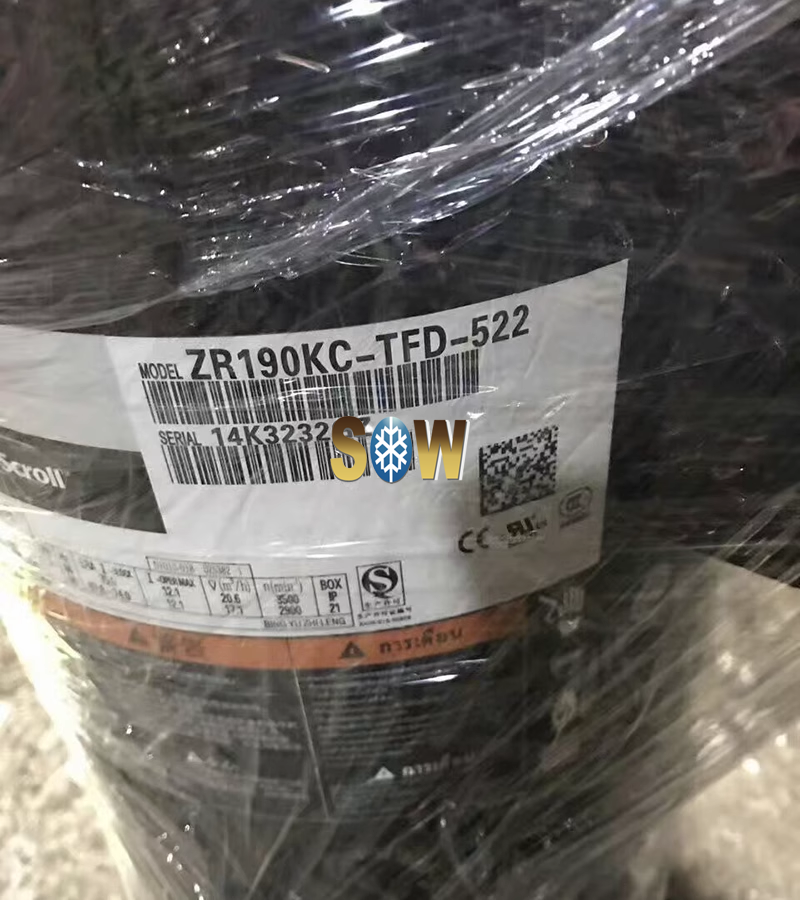

Name:	Copeland ZR Scroll Type Refrigeration Compressor ZR190KC-TFD-522
Model No.:	ZR190KC-TFD-522
Place of Origin:	China/Thailand
Brand:	Copeland
Type:	Scroll
Configuration:	Stationary
Drive Mode:	Electric
Performance:	Low Noise
Lubrication Style:	Lubricated
Refrigerant:	R22
Power Supply:	AC
Phase:	3ph
Horse Power:	15HP
Packing:	Wooden case/Pallet

Product Description

Copeland ZR Scroll Type Refrigeration Compressor ZR190KC-TFD-522

ZR Compressor features:

Power: 1.5-15 HP

Med/High Temperature

Superior efficiency

Outstanding reliablity

Fewer moving parts

Very low noise/gas pulsation.

Copeland Scroll Compressor all models

1.ZR,ZB,ZP,ZF,ZH,ZS,ZW Scroll compressor
2.ZRD,ZBD,ZRT scroll compressor

3.Low price

Copeland Scroll Compressor ZR series

1,Super efficiency

The efficiency is 12% higher than the most advanced piston type compresor in the market.

2,Crackajack reliability
less movement parts ,shaft direction and radial with copeland patent soft designe,to supply high fluidimpact and abide impurity resistent.
3,Inner motor turnoff device

it can protect motor to avoid broken by high-temperature and high –current .

4,Low-noise/low-exhaust impulse

the noise is 5Db lower than piston-type compressor and more.

5,Predigest system desige

Blue-chip uninstall operate design,make single-phase compressor no need to operate capacitance/relay.

6,Nearly 100% cubage efficiency bring super heating ability.

Description:

1.Models :ZR16M3-TWD-522,ZR19M3-TWD-522,ZR47KC-TFD,ZR94KC-TFD,ZR125KC-TFD,ZR160KC-TFD,ZR61KC-TFD,ZR108KC-TFD,ZR144KC-TFD,ZR72KC-TFD ....

2.The are Copeland scroll compressors, can be used for air conditioning and refrigeration.

3.We have models made in China,Thailand and Belguim.

4. 12 units packing with one pallet.

With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Copeland Scroll™ compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.

Copeland Scroll Compressor 2–7 HP

Designed to power high-efficiency air conditioners with its improved scroll set and motor for higher reliability, lower noise, and compact frame;

Comes with Enhanced Vapor Injection (EVI) technology for increased heating capacity;

Allows for the best overall applied cost for high-efficiency systems.

Copeland Scroll Compressor 7–15 HP

Designed for superior R-410A efficiency and performance

Features Advanced Scroll Temperature Protection (ASTP) to guard the compressor from the scroll overheating

Light, compact design with smaller suction fittings for applied cost saving

R-410A and R-22/R-407C models in 7–15 HP (tandems up to 30 HP)

Copeland Scroll Compressor 20–40 HP

R-410A and R-22/R-407C models in 20–40 HP (tandems up to 80 HP)

Optimized for large rooftop and chiller applications

Designed to provide highest R-410A efficiency in this capacity range

Qualified for use in trio applications

Phase	Model	Horse Power/HP	Displacement/ m3/h	ARI 7.2/54.4ºC		Weight/ Kg	Height/ mm
Phase	Model	Horse Power/HP	Displacement/ m3/h	Cooling /W	Input Power/ W	Weight/ Kg	Height/ mm
1 Phase	ZR16K3-PFJ	1.33	3.97	4010	1320	25.9	370.4
1 Phase	ZR18K3-PFJ	1.5	4.37	4400	1440	25.9	370.4
1 Phase	ZR20K3-PFJ	1.69	4.76	4890	1600	25.9	370.4
1 Phase	ZR22K3-PFJ	1.83	5.34	5330	1730	25.9	382.8
1 Phase	ZR24K3-PFJ	2	5.92	5920	1870	26.3	382.8
1 Phase	ZR26K3-PFJ	2.17	6.27	6330	2000	25.9	382.8
1 Phase	ZR28K3-PFJ	2.33	6.83	6910	2150	27.2	382.8
1 Phase	ZR30K3-PFJ	2.5	7.3	7380	2290	28.6	405.5
1 Phase	ZR32K3-PFJ	2.67	7.55	7760	2410	28.1	405.5
1 Phase	ZR34K3-PFJ	2.83	8.02	8200	2520	29.5	405.5
1 Phase	ZR36K3-PFJ	3	8.61	8790	2700	29.5	405.5
1 Phase	ZR40K3-PFJ	3.33	9.43	9670	2970	29.9	419.3
1 Phase	ZR42K3-PFJ	3.5	9.94	10100	3120	29.9	419.3
1 Phase	ZR47K3-PFJ	3.92	11.16	11500	3530	30.4	436.6
3 Phase	ZR22K3-TFD	1.83	5.34	5330	1650	25.9	382.8
3 Phase	ZR24K3-TFD	2	5.92	5920	1840	25.9	382.8
3 Phase	ZR26K3-TFD	2.17	6.27	6330	1960	25.9	382.8
3 Phase	ZR28K3-TFD	2.33	6.83	6910	2150	26.3	405.5
3 Phase	ZR30K3-TFD	2.5	7.3	7380	2290	26.3	405.5
3 Phase	ZR32K3-TFD	2.67	7.55	7760	2410	26.3	405.5
3 Phase	ZR34K3-TFD	2.83	8.02	8200	2500	28.6	405.5
3 Phase	ZR36K3-TFD	3	8.61	8790	2680	27.2	405.5
3 Phase	ZR40K3-TFD	3.33	9.43	9670	2950	28.6	419.3
3 Phase	ZR42K3-TFD	3.5	9.94	10100	3090	28.6	419.3
3 Phase	ZR45KC-TFD	3.75	10.73	11000	3380	28.6	436.3
3 Phase	ZR46KC-TFD	3.83	10.95	11100	3390	34.9	456.9
3 Phase	ZR47KC-TFD	3.92	11.16	11500	3500	28.6	436.3
3 Phase	ZR49KC-TFD	4.08	11.45	11700	3600	35.4	456.9
3 Phase	ZR54KC-TFD	4.5	12.73	12900	4030	35.4	456.9
3 Phase	ZR57KC-TFD	4.75	13.42	13700	4160	35.4	456.9
3 Phase	ZR61KC-TFD	5.08	14.34	14600	4430	35.8	456.9
3 Phase	ZR68KC-TFD	5.75	16.18	16400	4970	38.1	456.9
3 Phase	ZR72KC-TFD	6	17.05	17400	5250	38.1	456.9
3 Phase	ZR81KC-TFD	6.75	19.2	19690	5830	40.9	462.4
3 Phase	ZR84KC-TFD	7	19.75	20330	6140	56.7	495.3
3 Phase	ZR94KC-TFD	8	22.14	22940	7000	58	495.3
3 Phase	ZR108KC-TFD	9	25.15	26250	7830	72.6	533.4
3 Phase	ZR125KC-TFD	10	28.77	30470	9060	78	533.4
3 Phase	ZR144KC-TFD	10	28.8	29890	8955	92	542
3 Phase	ZR160KC-TFD	13	35.6	37330	11175	98	557
3 Phase	ZR190KC-TFD	15	42.1	45170	13400	112	596
