Location:Index--->Product Center >> Danfoss Solenoid Valve&Coil >> Danfoss Solenoid Valve refrigeration system controls EVR22 032F3267 Solder

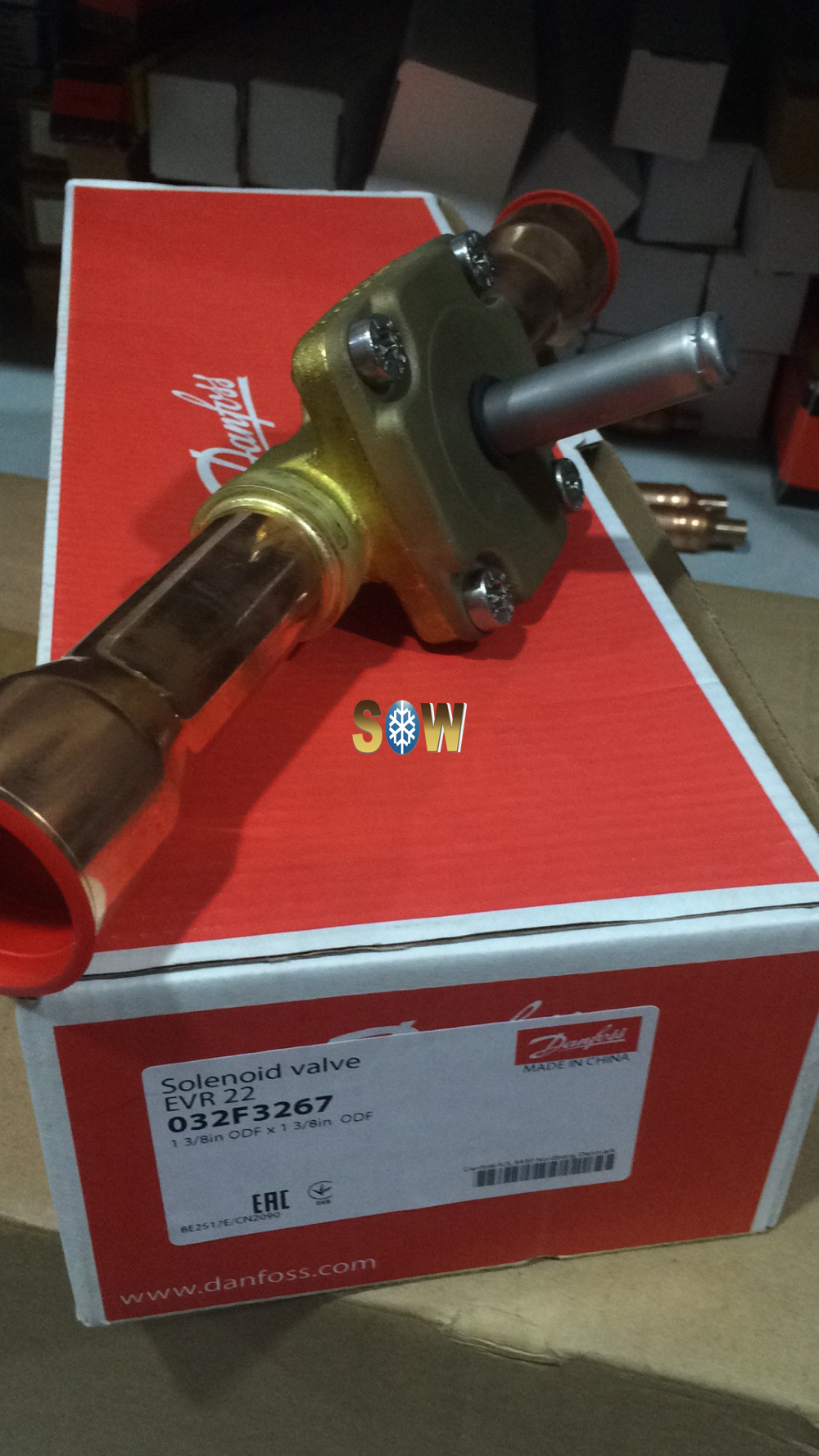

Name:	Danfoss Solenoid Valve refrigeration system controls EVR22 032F3267 Solder
Model No.:	EVR22 032F3267
Place of Origin:	China
Brand:	Danfoss
Actuator:	Electric
Connection Form:	Thread
Type:	Direct Acting
Material:	Brass
Pressure:	High Temperature
Valve Structure:	Pilot Piston Structure
Power Supply:	AC
Usage:	Flow Control
Weight:	1.42kg
Refrigerant:	CFC HCFC HFC

Product Description

Danfoss Solenoid Valve refrigeration system controls EVR22 032F3267 Solder

EVR is a direct or servo-type solenoid valve, using for fluid, suction and heat pipe with fluorinated refrigerants. EVR is available either as a single valve or the like separate components, i.e. valve body, coil and flanges (EVR 15) must be ordered separately.

Features:

1. Can be used for various occasions like cold storage, freezing and air conditioning devices occasions.

2. Provide normally closed style and normally open style.

3. Wide selection of various AC or DC solenoid valve coil.

4. Suitable for all fluorinated refrigerants.

5. Design for medium temperature up to 105℃.

6. MOPD of solenoid valve with 12W coil could be reached 25bar.

7. Flare connection could be reached 5/8 inch.

8. Soldering connection could be reached 2 1/8 inch.

9. Extended nozzle for soldering connection

---let installation more convenient

---no need to dismounting valve body when soldering connection

10. EVR also could provide flanges connection solenoid valve.

Technical data:

Refrigerant: CFC, HCFC, HFC

Medium temperature: 10W or 12W coil: -40~105℃

Defrosting period maximum temperature: 130℃

More models for your reference:

Model	Coil Type	Connection Size		Product Code (body without coil)
		Connection Size		Flared	ODF
		in.	mm	In./mm	in.	mm	With manual operation	Without manual operation
EVR2	a.c.	1/4	6	032F8056	032F1201	032F1202
EVR3	A.c./d.c.	1/4	6	032F8107	032F1206	032F1207
EVR3		3/8	10	032F8116	032F1204	032F1208
EVR6		3/8	10	032F8072	032F1212	032F1213
EVR6		1/2	12	032F8079	032F1209	032F1236
EVR10		1/2	12	032F8095	032F1217	032F1218
EVR10		5/8	16	032F8098	032F1214	032F1214
EVR15		5/8	16	032F8101	032F1228	032F1228
		5/8	16	032F8100			032F1227
		7/8	22		032F1225	032F1225
EVR20	a.c.	7/8	22		032F1240	032F1240
		7/8	22				032F1254
		1-1/8	28		032F1244	032F1245
	d.c.	7/8	22		032F1264	032F1264
	d.c.	7/8	22				032F1274
EVR22	a.c.	1-3/8	35		032F3267	032F3267
EVR25	A.c./d.c.	1-1/8					032F2200	032F2201
			28				032F2205	032F2206
		1-3/8	35				032F2207	032F2208
EVR32		1-3/8	35				042H1105	042H1106
		1-5/8					042H1103	042H1104
			42				042H1107	042H1108
EVR40		1-5/8					042H1109	042H1110
			42				042H1113	042H1114
		2-1/8	54				042H1111	042H1112
