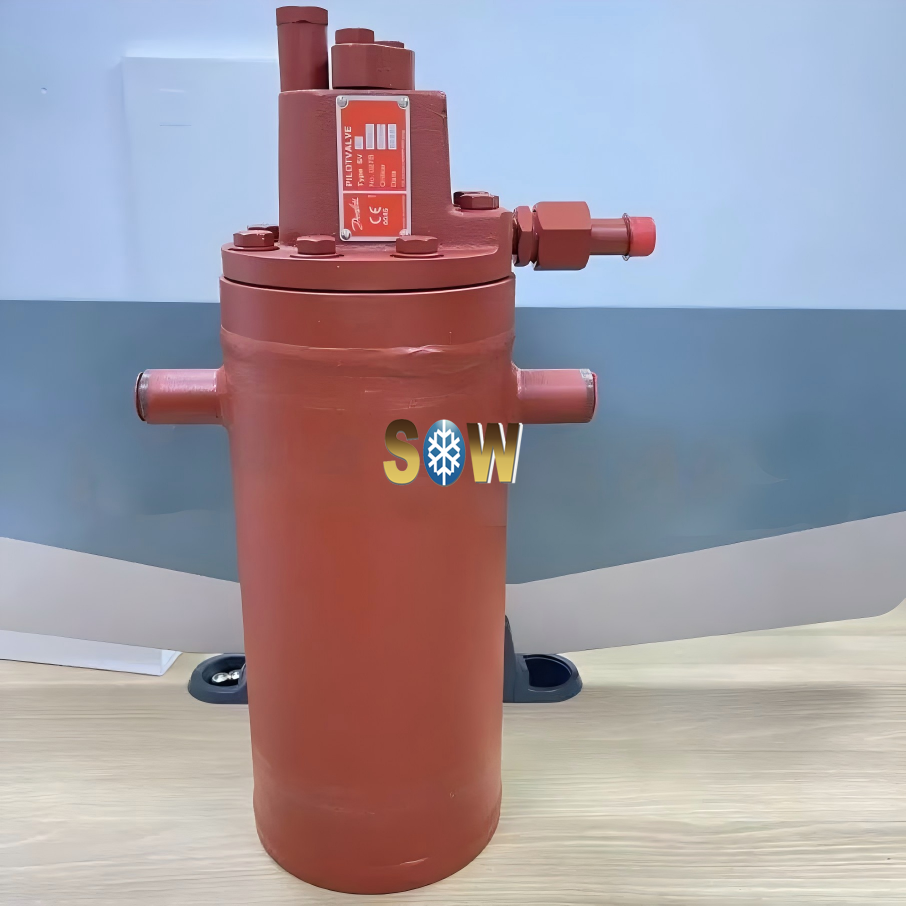

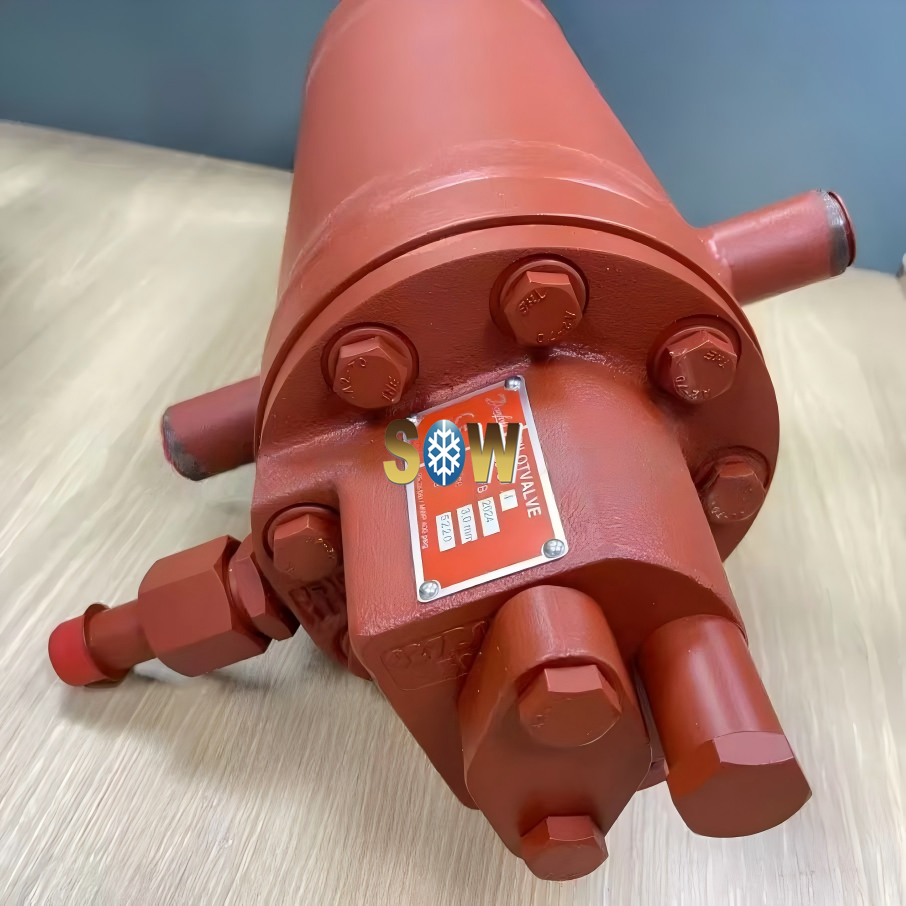

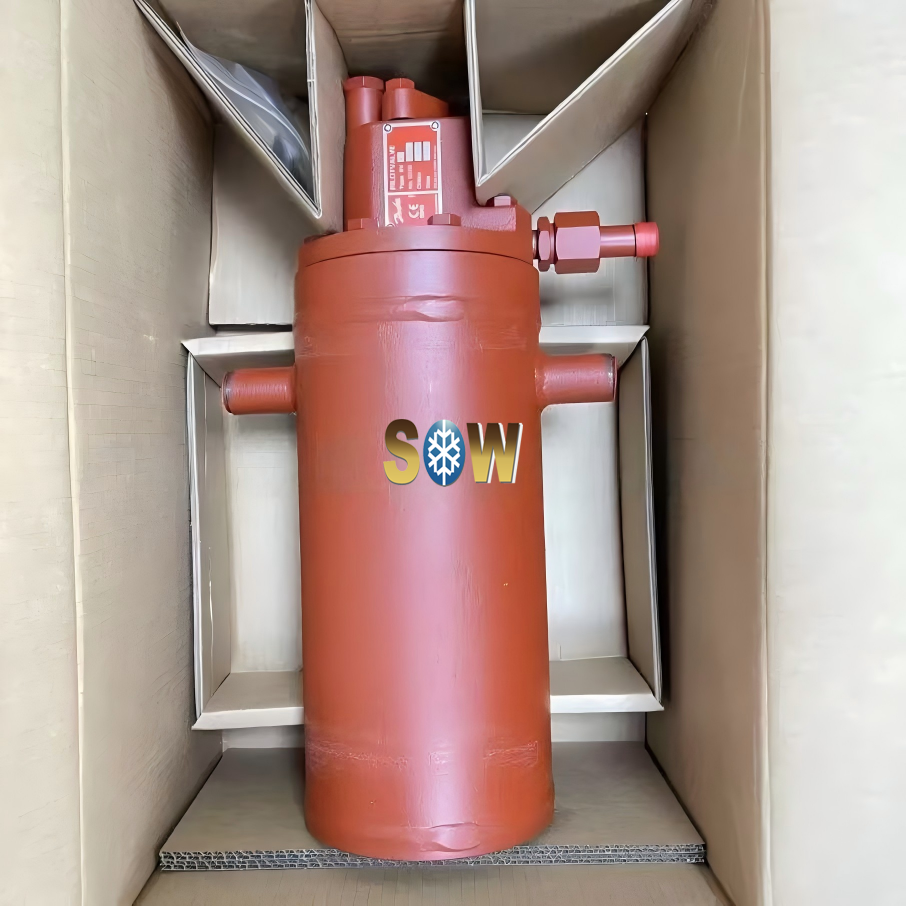

Danfoss Float valve, SV 4 027B2024

Product details

Type	SV 4
Product group	Liquid level regulating valves
Product Name Description	Float valve

Approval	CE EAC LLC CDC TYSK
Balance pipe Weld conn. size	1 in
Body material	Steel
Category	II
CE evaluated	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Connection material	Steel
Contains batteries	No
Cv value [gal/min]	0.27 gal/min
Differential pressure max[bar]	23 bar
Differential pressure max[psi]	334 psi
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Float housig material	Steel
Fluid Group	1 2
Inlet connection size [mm]	21.8 mm
Kv value [m³/h]	0.23 m³/h
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	406 psig
Packing format	Single pack

Pilot line connection type	Welding
Product description	Float valve
Quantity per packing format	1 pc
Rated cap. conditions [IMP]	+41 °F/+89,6 °F, sub. Cooling
Rated cap. conditions [SI]	+5 °C/+32 °C, sub. Cooling 4 K
Rated capacity R134a [kW]	16.4 kW
Rated capacity R134a [TR]	4.66 TR
Rated capacity R22 [kW]	21 kW
Rated capacity R22 [TR]	5.97 TR
Rated capacity R404A/R507 [kW]	15.4 kW
Rated capacity R404A/R507 [TR]	4.38 TR
Rated capacity R717 [kW]	102 kW
Rated capacity R717 [TR]	29 TR
REACH Candidate List substances	No
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C Read more
Temperature range [°C] [Max]	120 °C
Temperature range [°C] [Min]	-50 °C
Temperature range [°F] [Max]	248 °F
Temperature range [°F] [Min]	-58 °F
UL evaluated	Yes
