Location:Index--->Product Center >> Danfoss Pressure Switches >> Danfoss Pressure switch, MBC 5100 061B110466


|
|
||||||||||||||||||||||||
Product Description

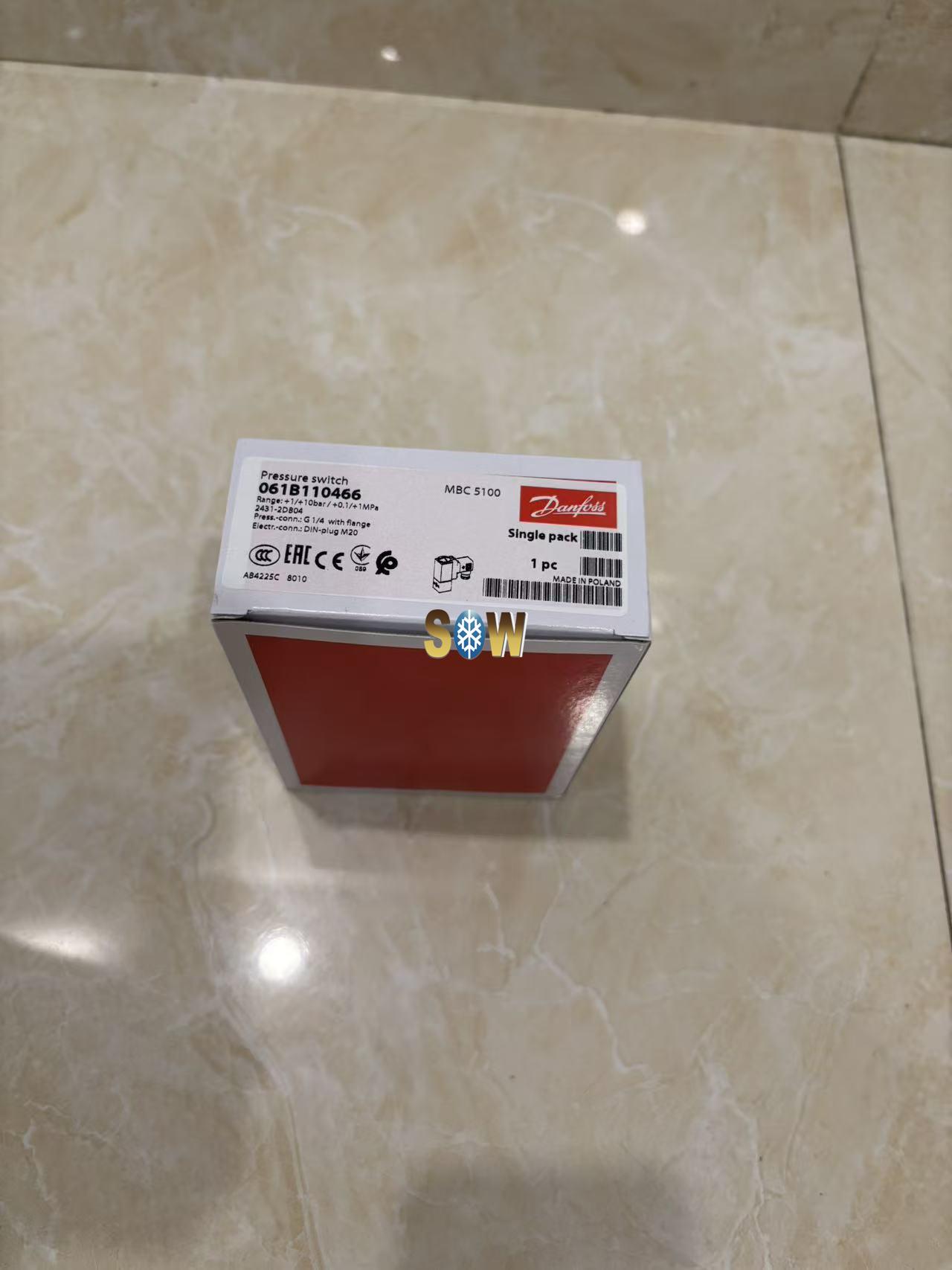

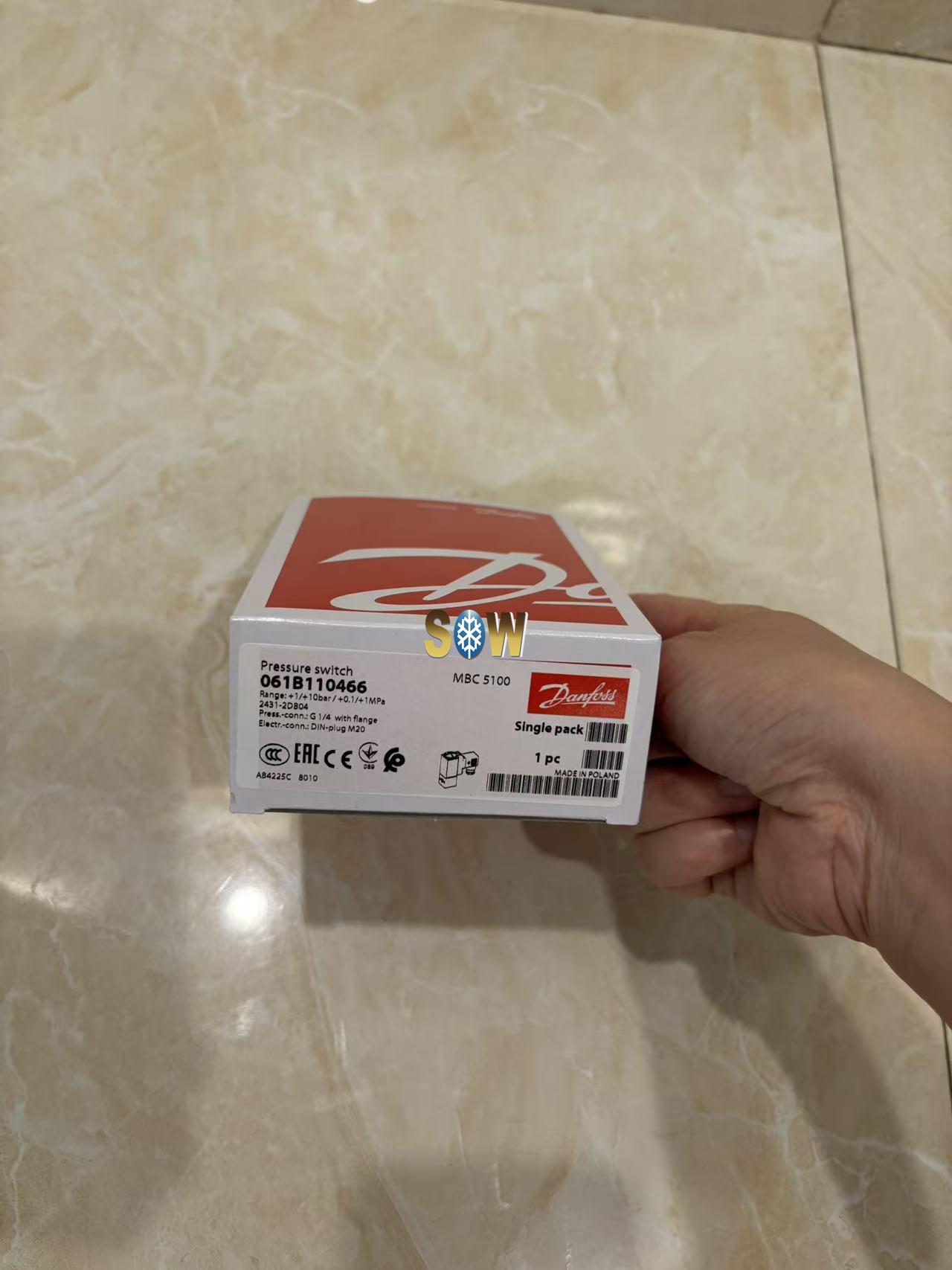

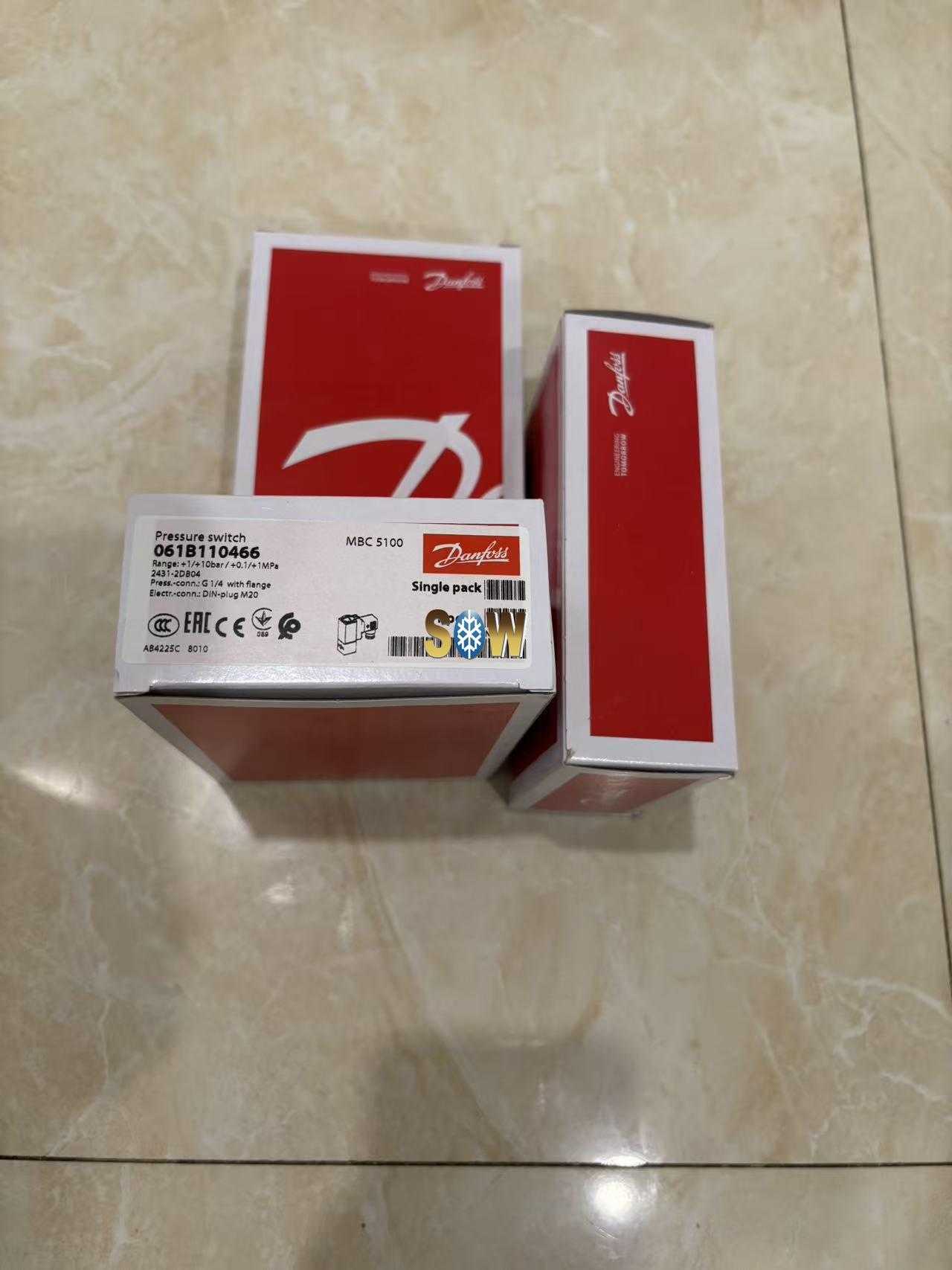

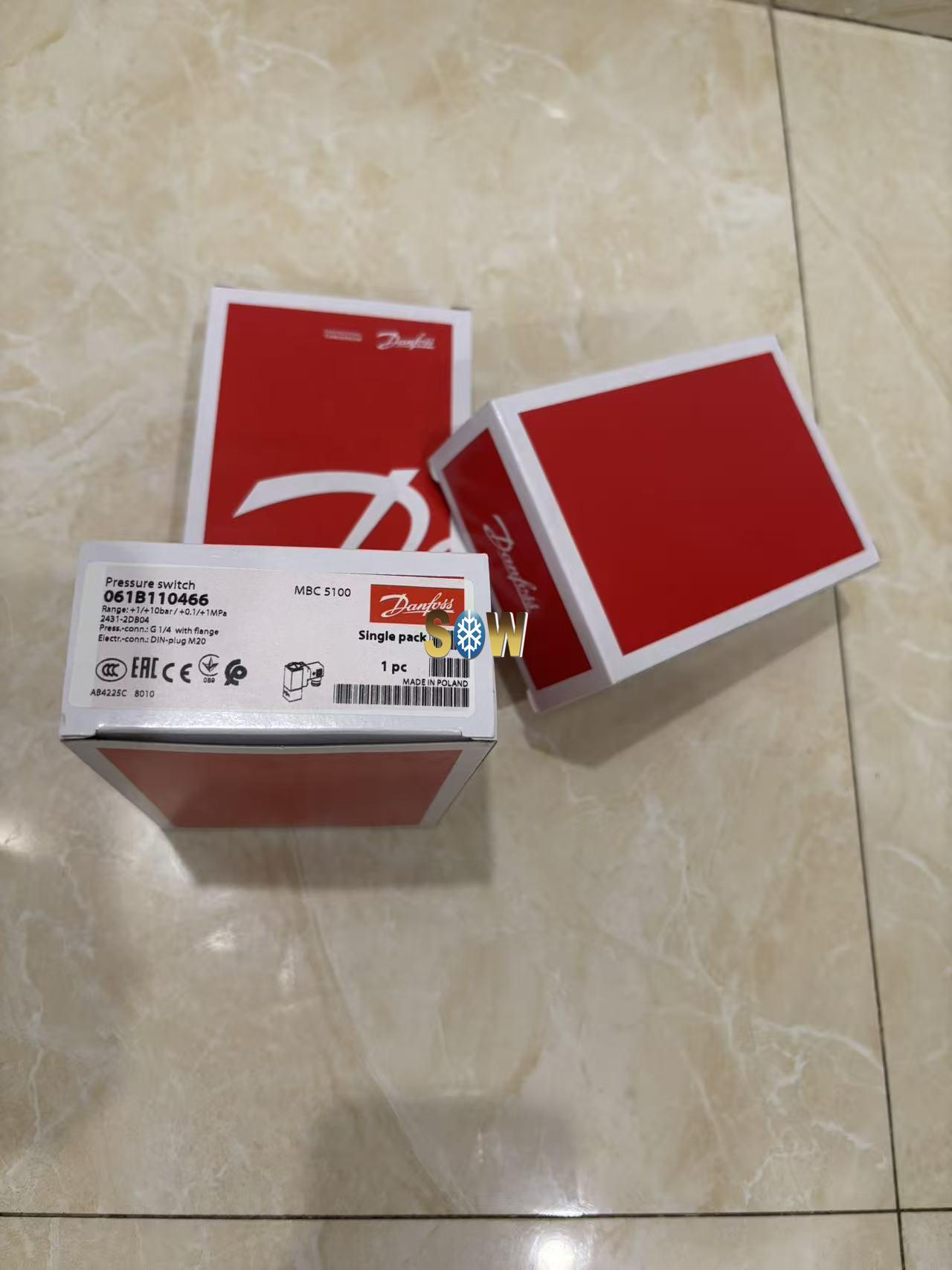

Danfoss Pressure switch, MBC 5100 061B110466
Product details
| Gross weight | 0.336 Kilogram |
| Net weight | 0.286 Kilogram |
| Volume | 0.647 Liter |
| EAN | 5702423218691 |
| Type | MBC 5100 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -10 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Approval | ABS BV CCC CCS CE CMIM DNV EAC Read more |
| Burst pressure [bar] | 300 bar |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Contains batteries | No |
| Diff.@Max. range setting [bar] | 2.5 bar |
| Diff.@Min. range setting [bar] | 1 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | M20 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Max. test pressure [bar] Pe | 150 bar |
| Max. test pressure [psig] | 2176 psig |
| Max. Working Pressure [bar] | 150 bar |
| Max. Working Pressure [psig] | 2175 psig |
| Other RoHS documentation | Saudi Arabia RoHS |
| Packing format | Multi pack |
| Pressure connection notes | With flange |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure switch |
| Quantity per packing format | 32 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [Max] | 10 bar |
| Regulation range [bar] Pe [Min] | 1 bar |
| Regulation range [MPa] Pe [Max] | 1 MPa |
| Regulation range [MPa] Pe [Min] | 0.1 MPa |
| SCIP dossier no. | 69958bd3-3b22-42dc-aa8a-888e92c5e7e8 |
| SCIP dossier product name | MBC 5100 5000 Pressure Switch |
| Serviceable | No |
| Specification key | 2431-2DB04 |
| Proposition 65 |
