Product Description

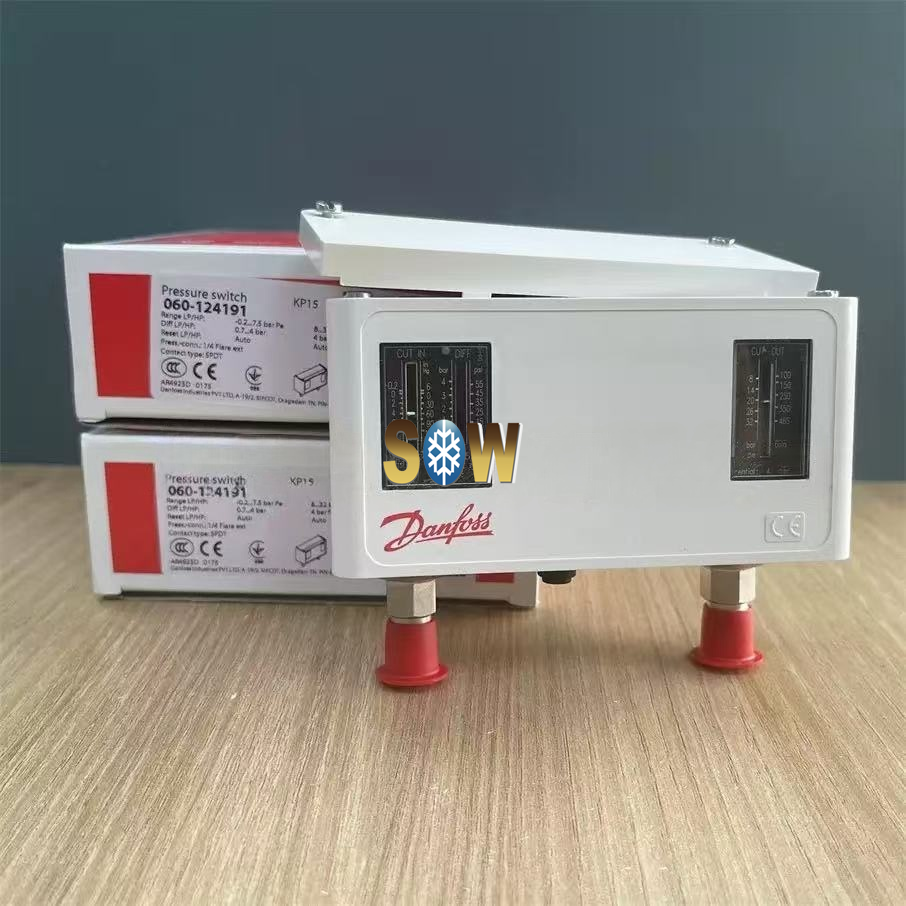

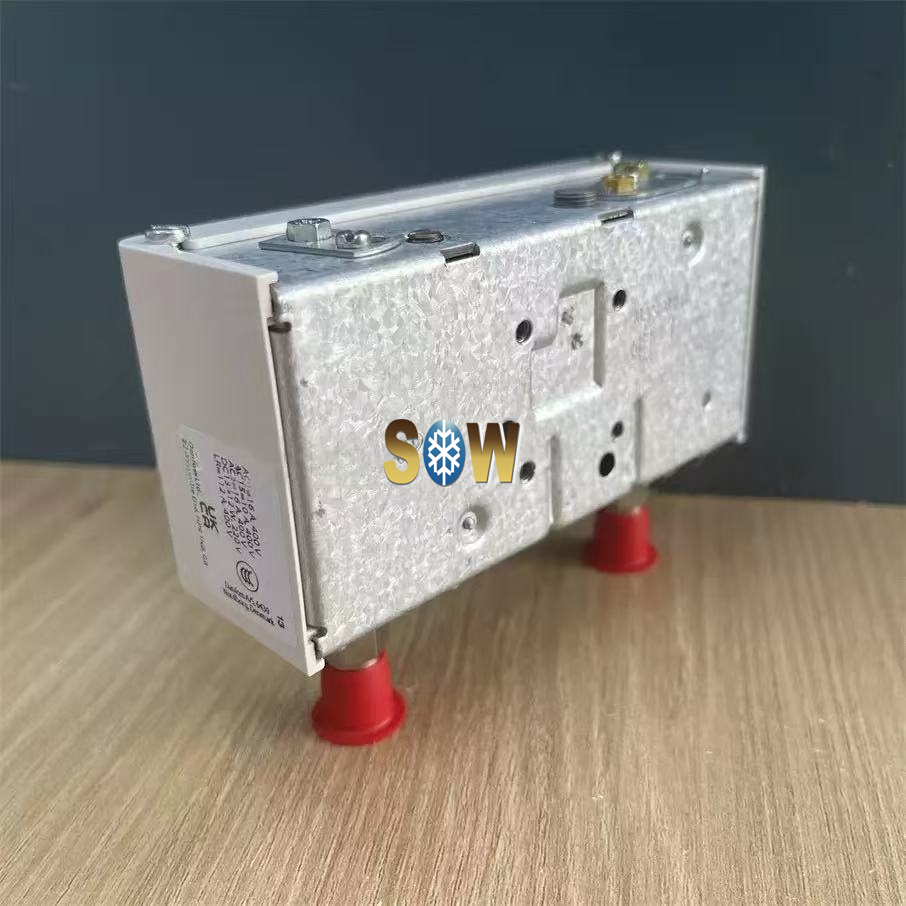

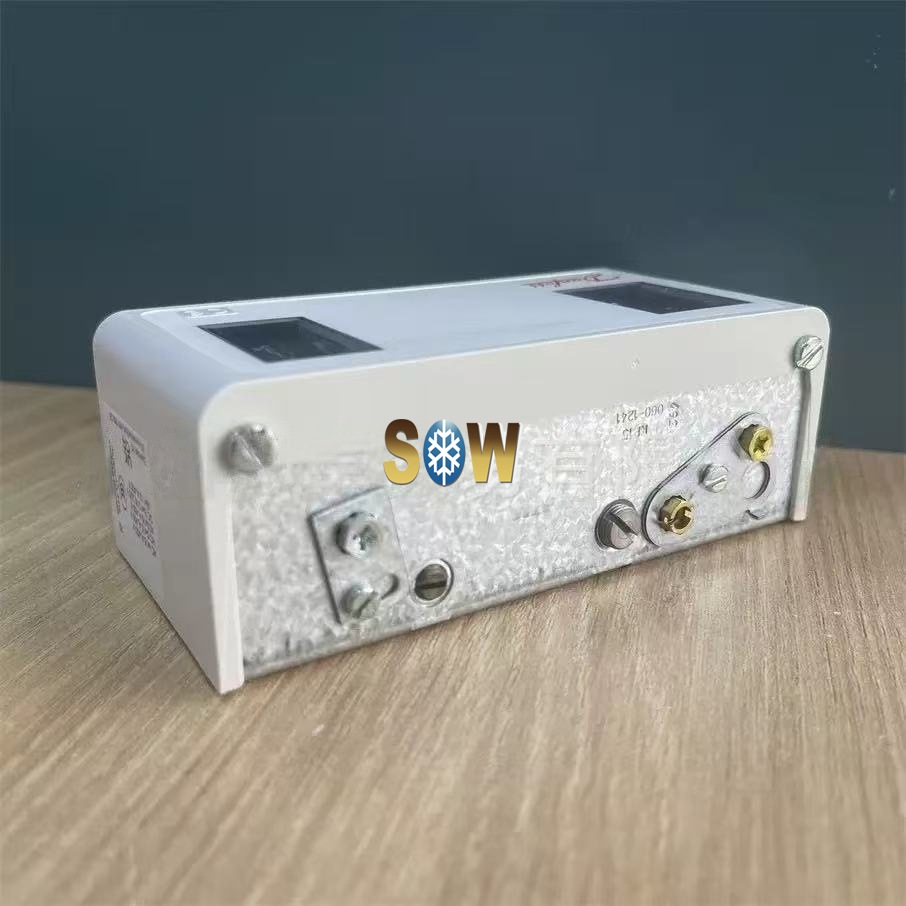

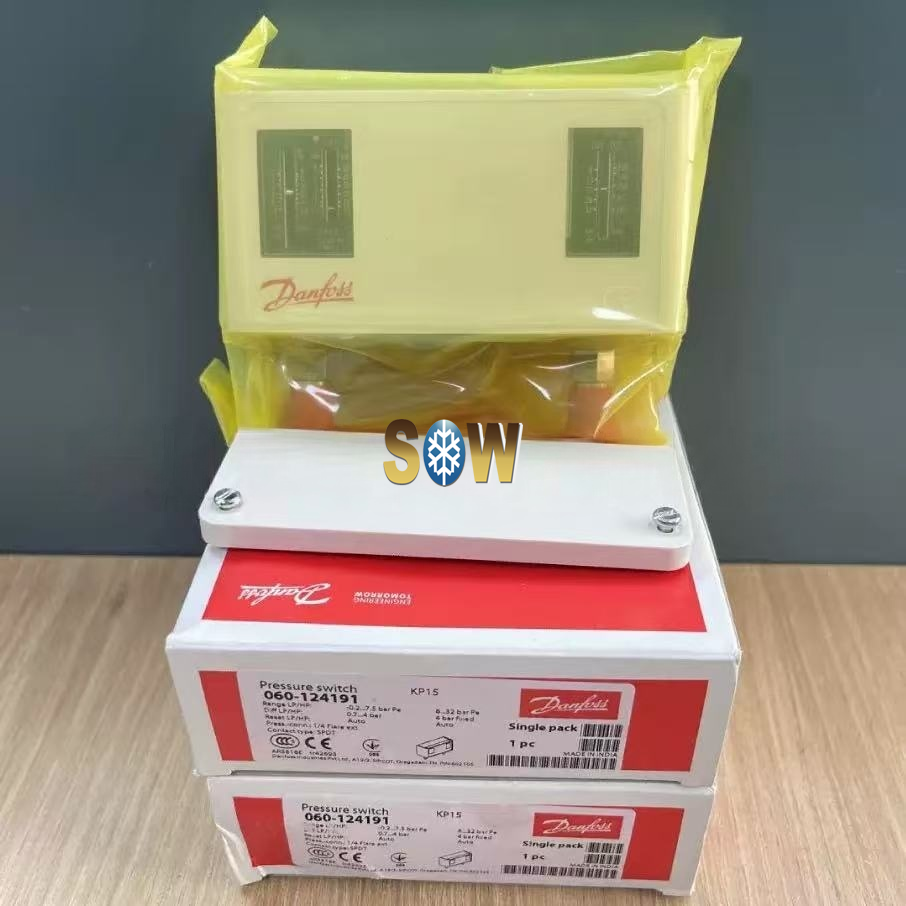

Danfoss Pressure switch, KP15 060-124191
Product details
| Gross weight | 0.512 Kilogram |
| Net weight | 0.444 Kilogram |
| Volume | 0.83 Liter |
| EAN | 5702424498122 |
| Type | KP15 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | BV CCC CE DNV GL LLC CDC EURO-TYSK LR LVD Read more |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Contains batteries | No |
| Differential left side [bar] [max] | 4 bar |
| Differential left side [bar] [min] | 0.7 bar |
| Differential left side [psi] [max] | 58 psi |
| Differential left side [psi] [min] | 10 psi |
| Differential right side [bar] | 4 bar |
| Differential right side [psi] | 58 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| Enclosure rating IP | IP44 |
| Enclosure rating Nema (~) | 2 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Lubricants compatibility | Oilfree applications |
| Max.test press.left side[bar] | 20 bar |
| Max.test press.right side[bar] | 35 bar |
| MWP left side [bar] Pe | 17 bar |
| MWP left side [psig] Pe | 245 psig |
| MWP right side [bar] Pe | 35 bar |
| MWP right side [psig] Pe | 510 psig |
| Oil free refrigerants | R134a R513A R515B |
| Other RoHS documentation | Saudi Arabia RoHS |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Dual Pressure Control |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0) |
| Refrigerants | R113 R1234yf R1234yz R1234ze(E) R124 R134a R22 R404A Read more |
| Regulation left side [bar]Pe [max] | 7.5 bar |
| Regulation left side [bar]Pe [min] | -0.2 bar |
| Regulation left side range Pe | 6 inHg - 108 psig |
| Regulation right side [bar]Pe [max] | 32 bar |
| Regulation right side [bar]Pe [min] | 8 bar |
| Regulation right side [psig]Pe [max] | 464 psig |
| Regulation right side [psig]Pe [min] | 116 psig |
| Reset function, left side | Auto |
| Reset function, right side | Auto |
| SCIP dossier no. | 1b8fc5ed-65e2-48fc-8738-8cce613a9786 |
| SCIP dossier product name | KP KPI |
| Serviceable | No |
| UL approval file name | E31024 |
| UL approved refrigerants | R113 R124 R134a R22 R404A R407A R407C R407F Read more |
| UL mark | Yes |
