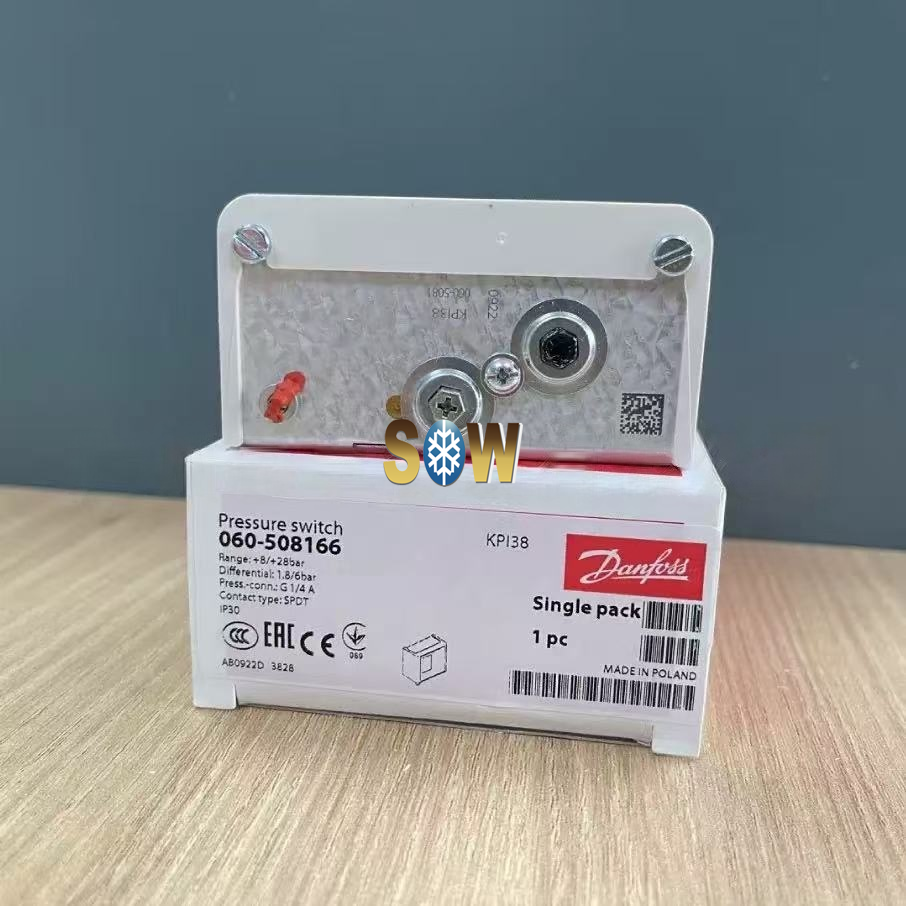

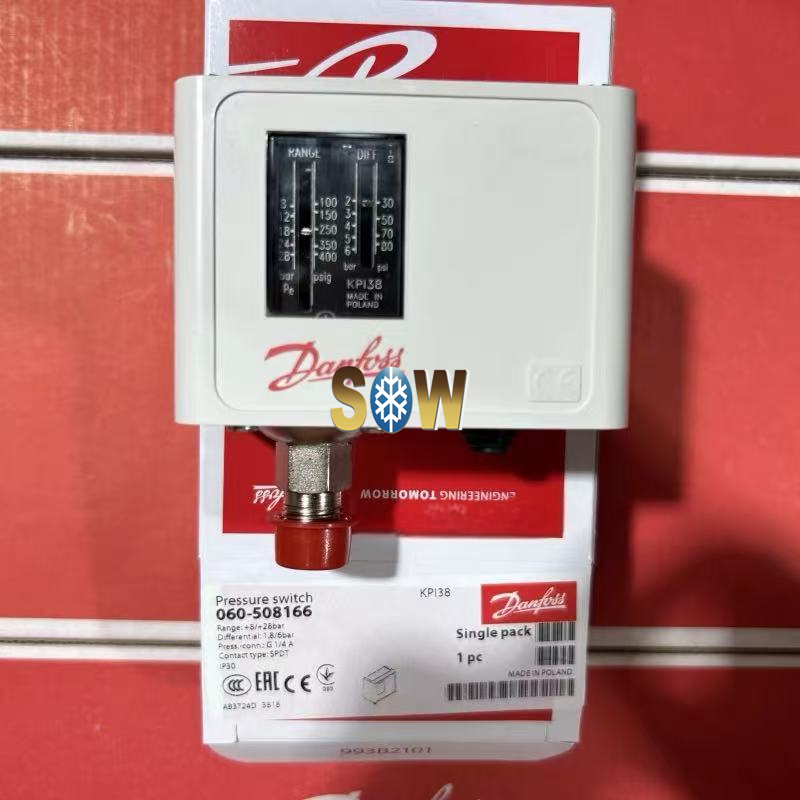

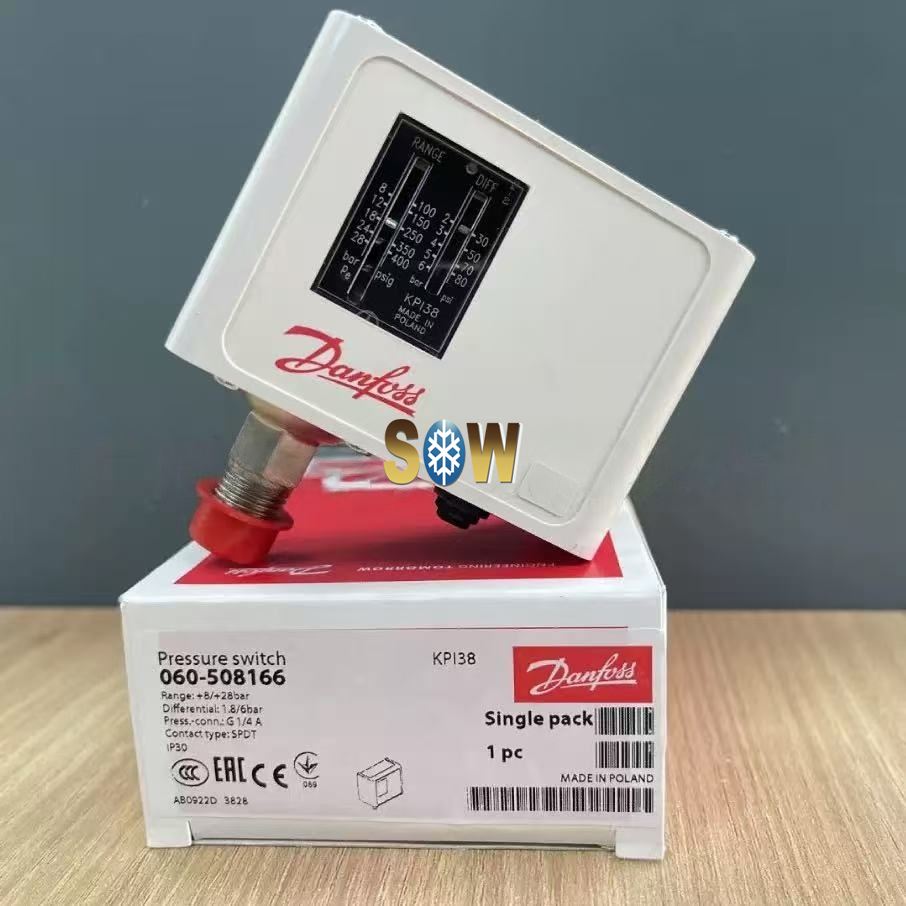

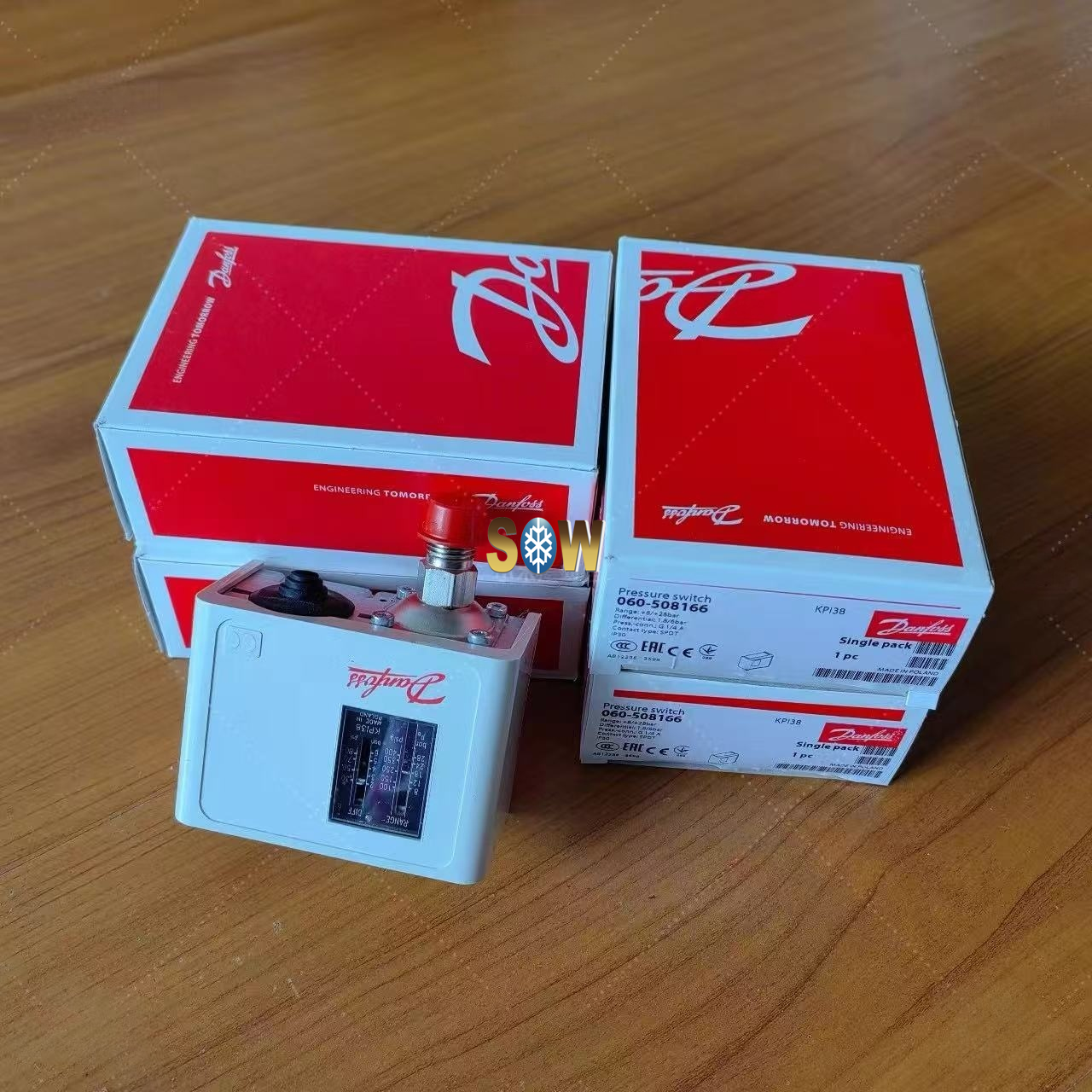

Danfoss Pressure switch, KPI38 060-508166

Product details

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	65 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	149 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CCC CE CMIM EAC LLC CDC EURO-TYSK LVD RINA RoHS China c UL us UL873, CS C22.2
CE mark	Yes
China RoHS compliance	Yes
Contact function	SPDT
Contact rating	AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR=36 A, 240 V LR=48 A, 120 V
Contains batteries	No
Differential [bar] [max]	6 bar
Differential [bar] [min]	1.8 bar
Differential [psi] [max]	87 psi
Differential [psi] [min]	26 psi
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Rubber cable gland
Electrical connection size	6-14 mm
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP30
Enclosure rating Nema (~)	1
EPD available	Yes
EU RoHS compliance	Yes
EU RoHS exemption clause	No

In scope of WEEE	Yes
Max. test pressure [bar] Pe	30 bar
Max. test pressure [psig]	435 psig
Max. Working Pressure [bar]	30 bar
Max. Working Pressure [psig]	435 psig
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Male
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Pressure Switch
Quantity per packing format	36 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0)
Regulation range [bar] Pe [max]	28 bar
Regulation range [bar] Pe [min]	8 bar
Regulation range [psig] Pe [max]	406 psig
Regulation range [psig] Pe [min]	116 psig
Reset function	Auto
SCIP dossier no.	1b8fc5ed-65e2-48fc-8738-8cce613a9786
SCIP dossier product name	KP KPI
Serviceable	No
UL approval file name	E31024
UL mark	Yes
