Product Description

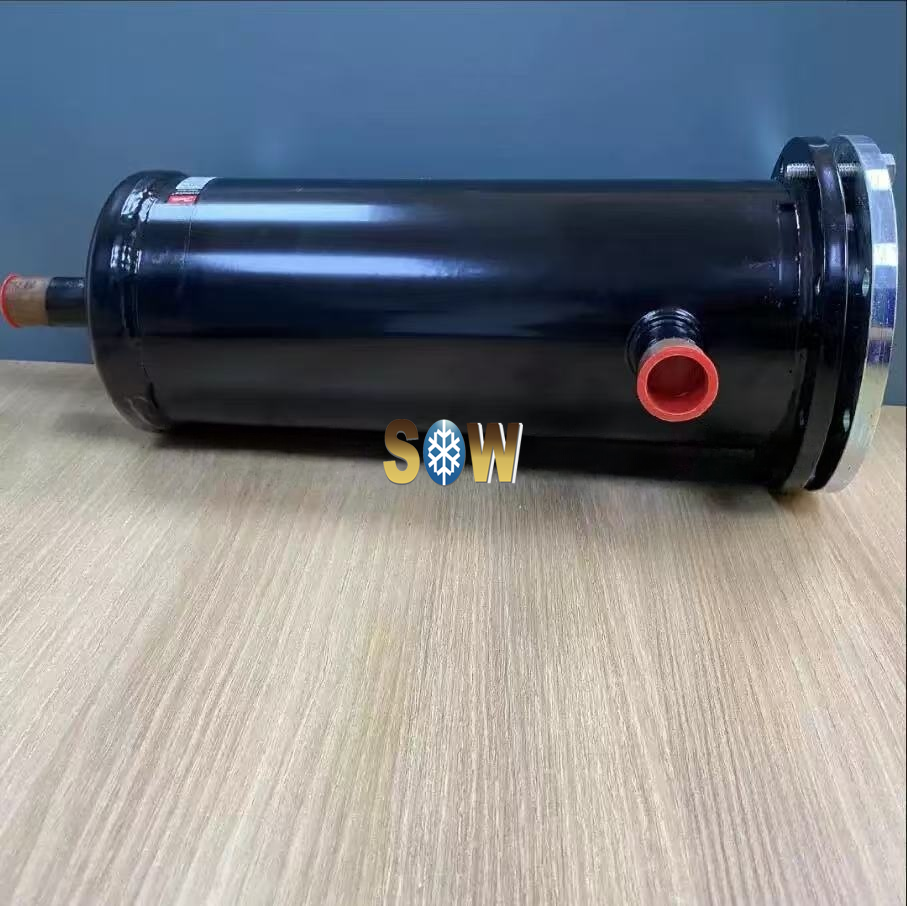

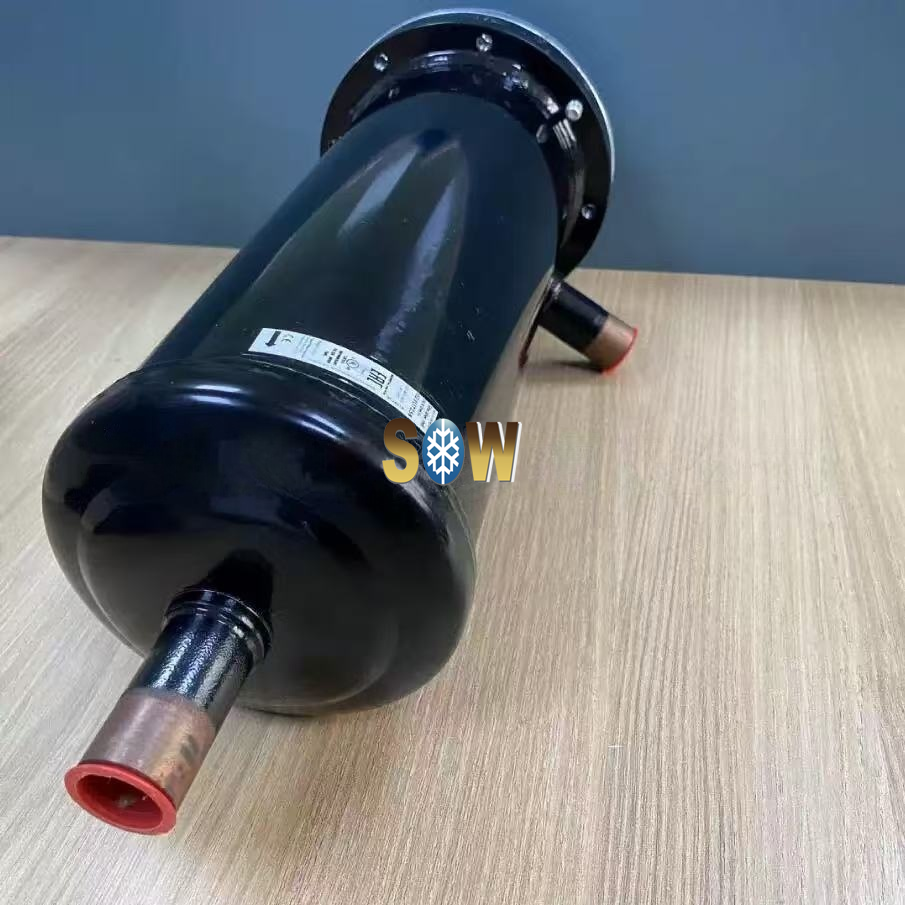

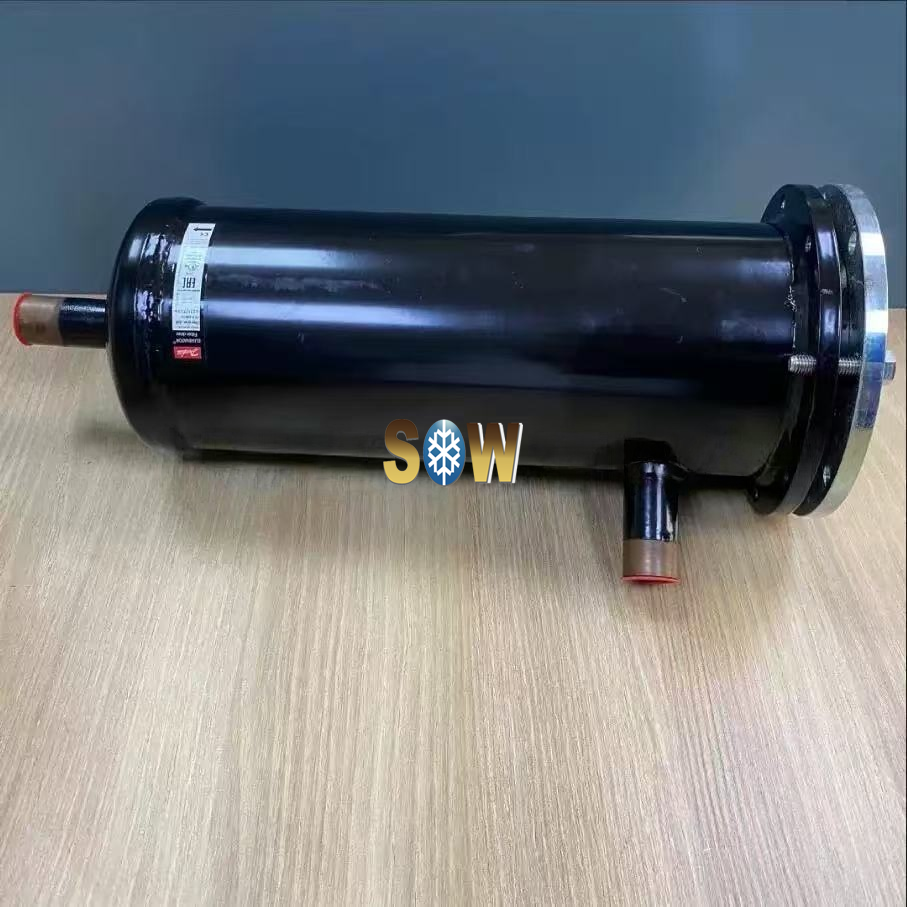

Danfoss Filter drier, shell, DCR 023U7258
Product details
| Gross weight | 6.36 Kilogram |
| Net weight | 6.36 Kilogram |
| Volume | 17.5 Liter |
| EAN | 5702428249676 |
| Type | DCR |
| Product group | Filter driers |
| Product Name Description | Filter drier, shell |
| Approval | CE CSA UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | I |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Copper |
| Connection Solder size [in] | 7/8 in |
| Connection Solder size [mm] | 22 mm |
| Connection type | Solder, ODF |
| Contains batteries | No |
| Core Size code | 96 cu.in. |
| Cover | Plug |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Liq Cap [Kw] | R1234ze: 119.0 R134a: 134.0 R404A: 94.3 R407C: 137.4 R410A: 139.5 R452A: 95.5 R507: 91.4 |
| Liq Cap [TR] | R1234ze: 33.8 R134a: 38.1 R404A: 26.8 R407C: 39.1 R410A: 39.7 R452A: 27.1 R507: 26.0 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | DELTA P=1PSI tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 85.05 Fluid Ounce US |
| Net volume [l] | 2.515 L |
| Number of cores | 2 |
| Oil free refrigerants | R134a R513A R515A |
| Packing format | Single pack |
| Parts included | 1 cov 4 felt gaskets 8 Bolts |
| Parts Program name | DCR |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1234ze(E) R125 R134a R22/R407C R23 R404A R407A R407F Read more |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 114.48 Fluid Ounce US |
| Shell volume [l] | 3.38 L |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type designation | DCR 0967s |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F Read more |
| UL evaluated | Yes |
| Proposition 65 |
