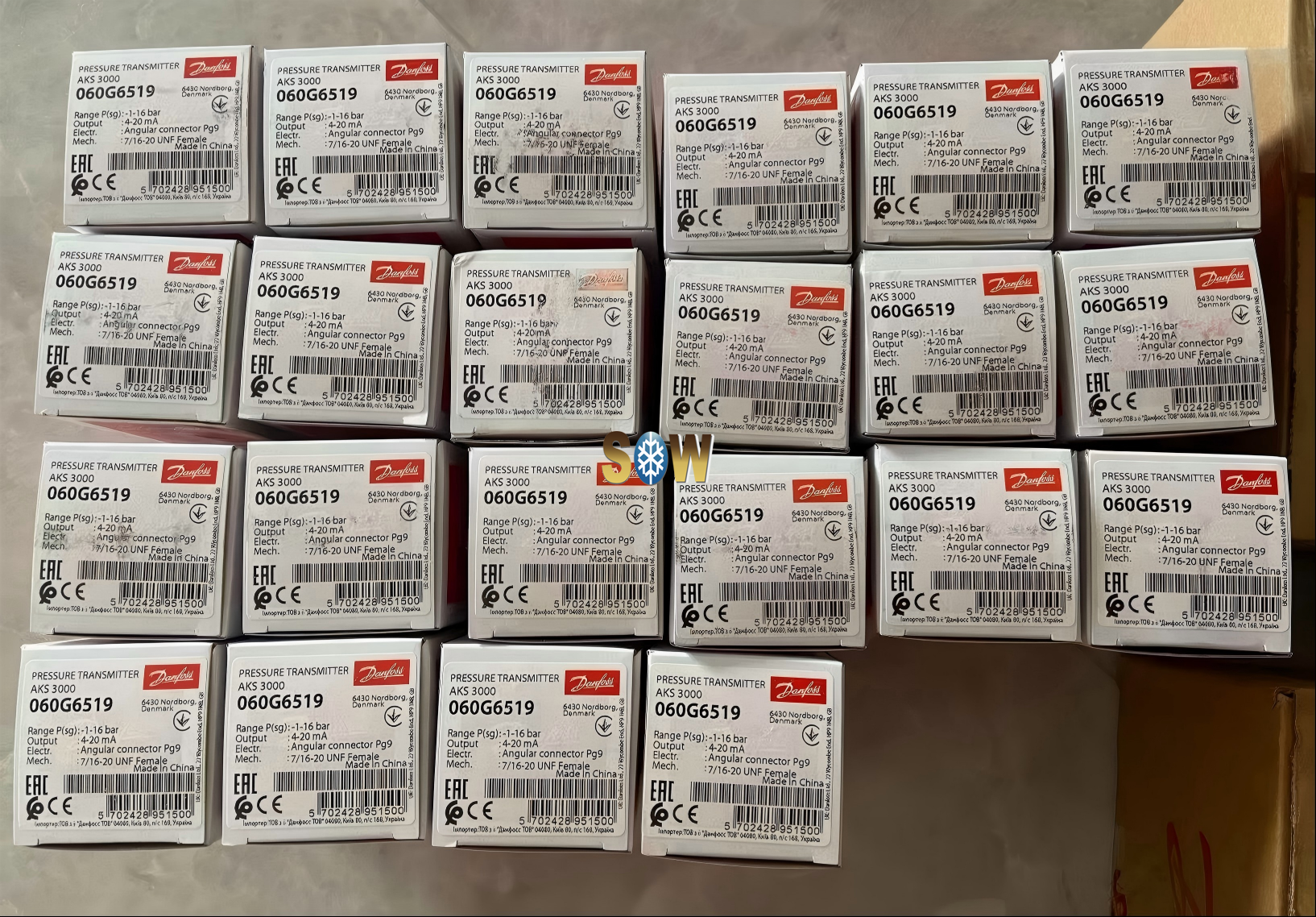

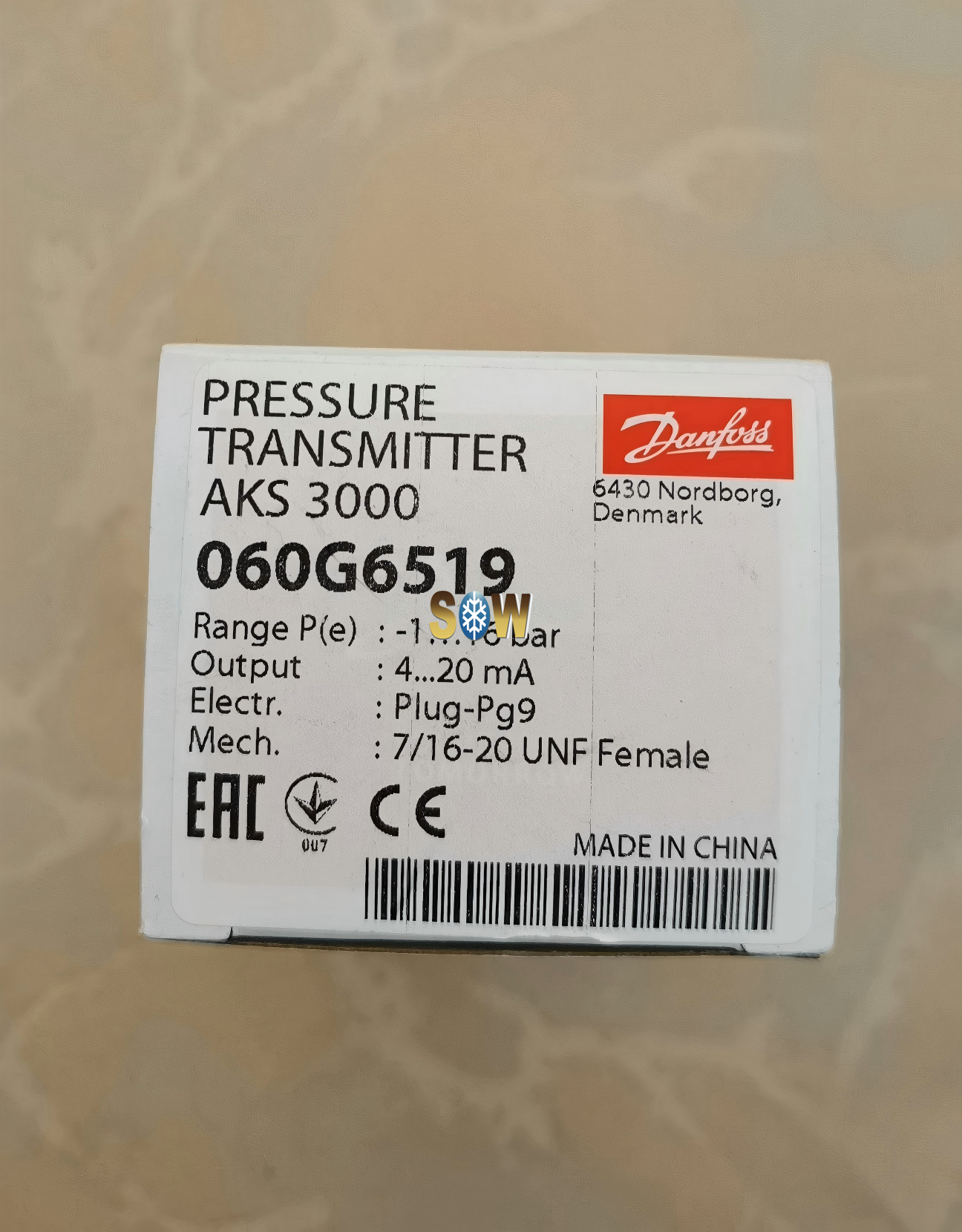

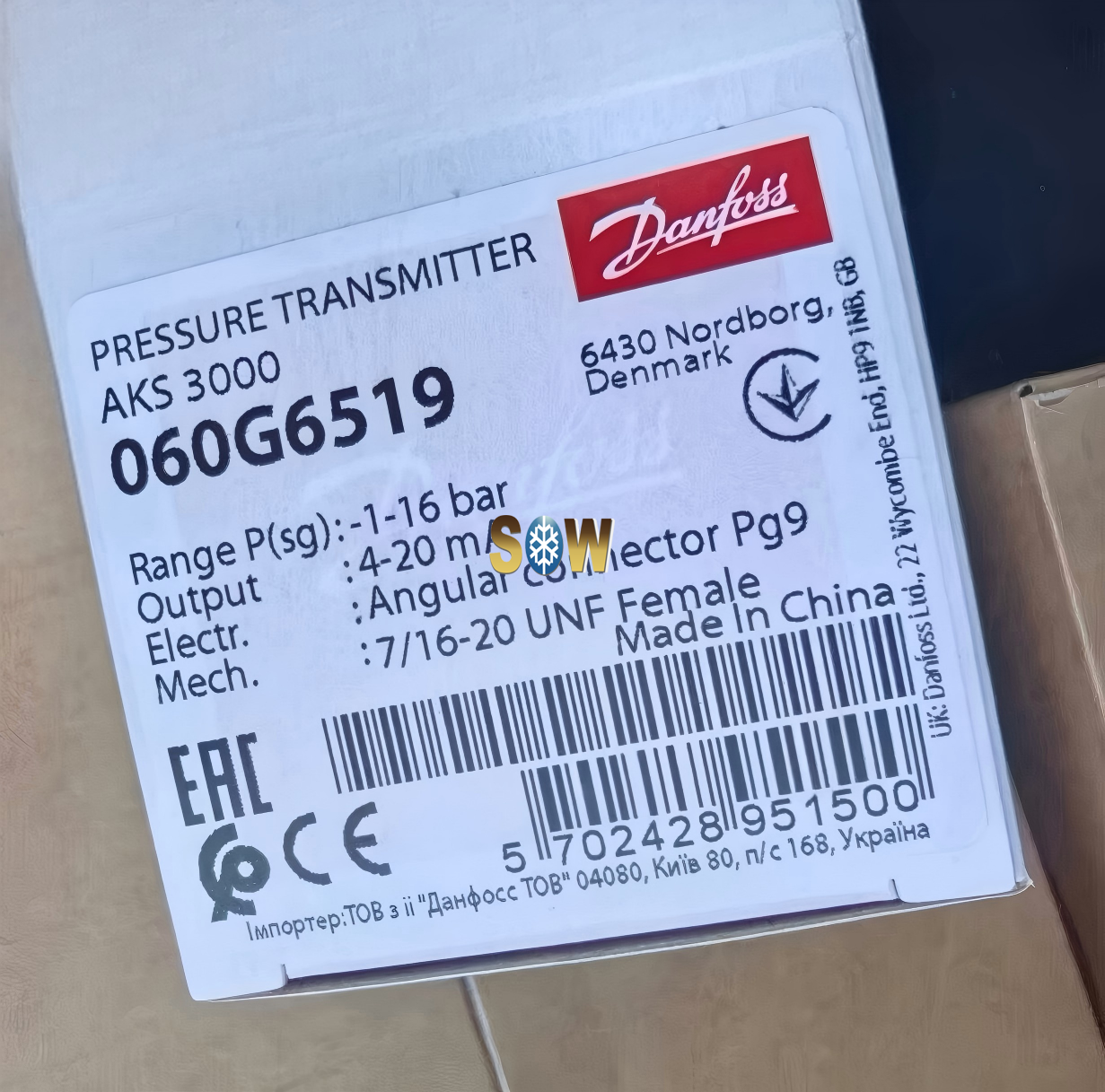

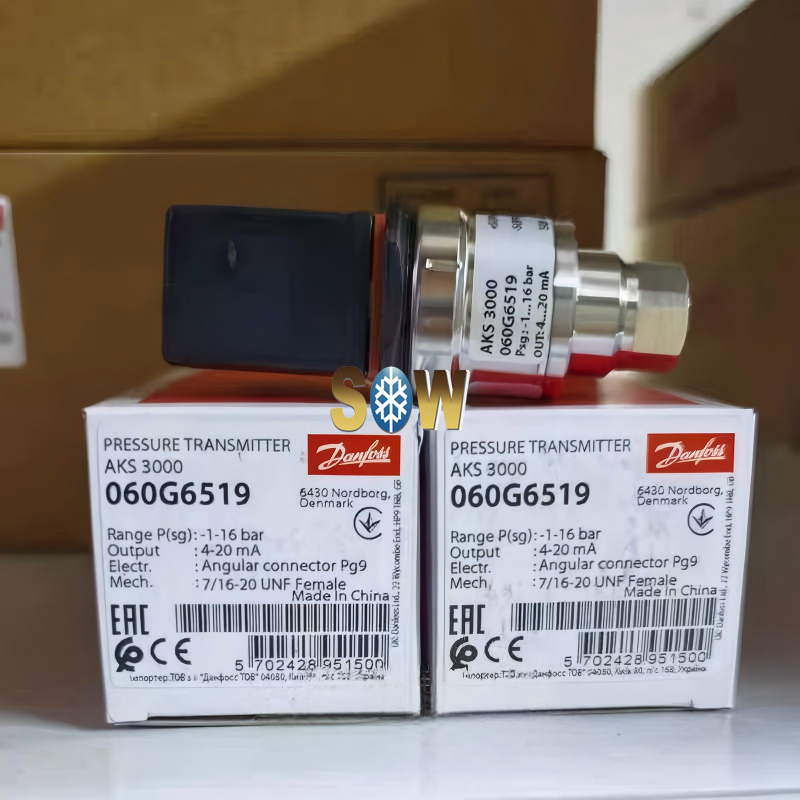

Name:	Danfoss Pressure transmitter, AKS 3000,060G6519
Brand:	Danfoss
Model No.:	AKS 3000
Part No.:	060G6519
Country of origin:	China
G.W:	0.142kgs/pc
Pressure range [bar]:	-1 bar - 16 bar
Pressure reference:	Sealed gauge
Output signal:	Current
Electrical connection:	Angular connector
Pressure connection type:	UNF
Pressure connection size:	7/16-20
Specification key:	AKS 3000-9031-A1BF08-0

Danfoss Pressure transmitter, AKS 3000,060G6519

Product details

+ supply	Pin 1
- supply	Pin 2
Accuracy, max. [±FS%]	2 %
Accuracy, typical [±FS%]	1 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	100 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	212 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX C UL US UL Recognized CE GOST POCC
Approval comments	ATEX Ex ec IIA T4 Gc
Approval standard	6967179 E227388 E31024
CE mark	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	100 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	212 °F
Compensated temp. range [°F] [min]	32 °F
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	Yes
International Article Number	5702428951500
Intrinsically safe	No

Low Clipping level	3.6
Medium temperature range [°C] [max]	125 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	257 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.5 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	102 bar
Packing format	Multi pack
Pressure connection HEX [mm]	17 mm
Pressure connection notes	Flare 1/4 in w/ valvedepressor
Pressure connection size	7/16-20
Pressure connection standard	ISO 8434-1
Pressure connection type	UNF
Pressure Male/Female	Female
Pressure range [bar] [max]	16 bar
Pressure range [bar] [min]	-1 bar
Pressure range [psi] [max]	232 psi
Pressure range [psi] [min]	-14.5 psi
Pressure reference	Sealed gauge
Pulse-snubber	No
Quantity per packing format	14 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	442fa760-b631-4ddb-a979-55b604269353
SCIP dossier product name	Sensor AKS 3000
Specification key	AKS 3000-9031-A1BF08-0
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
UL mark	Yes
