Location:Index--->Product Center >> Danfoss Solenoid Valve&Coil >> Danfoss Solenoid valve EVRA 20 032F6221

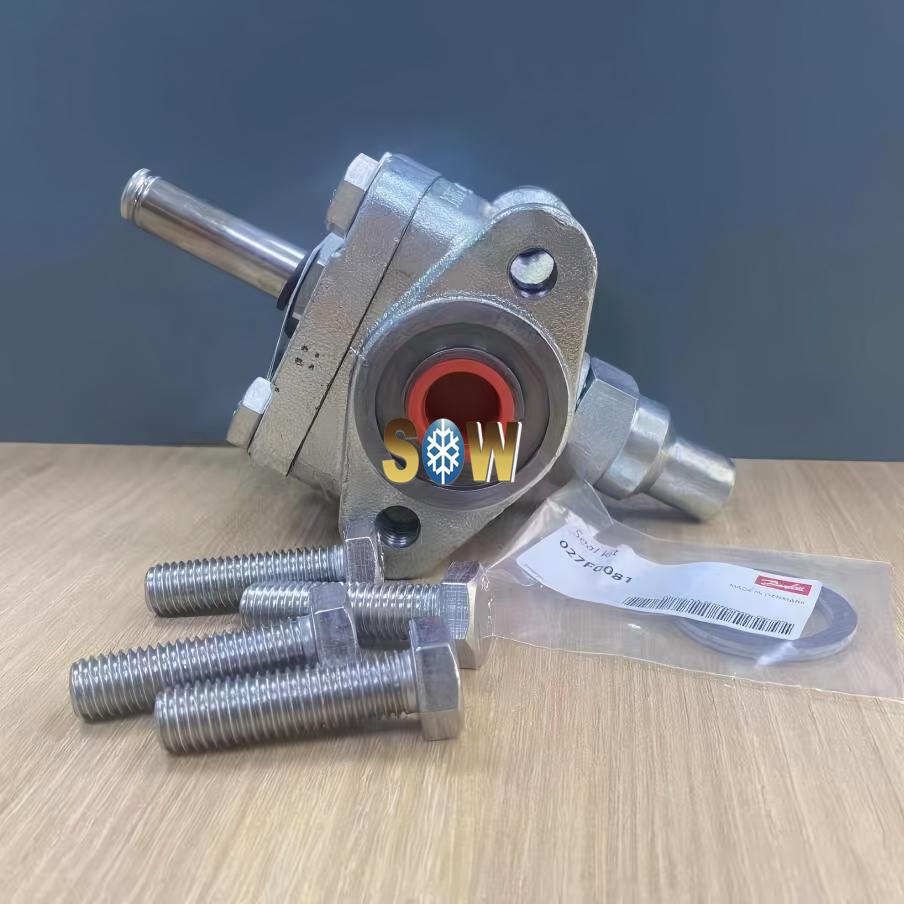

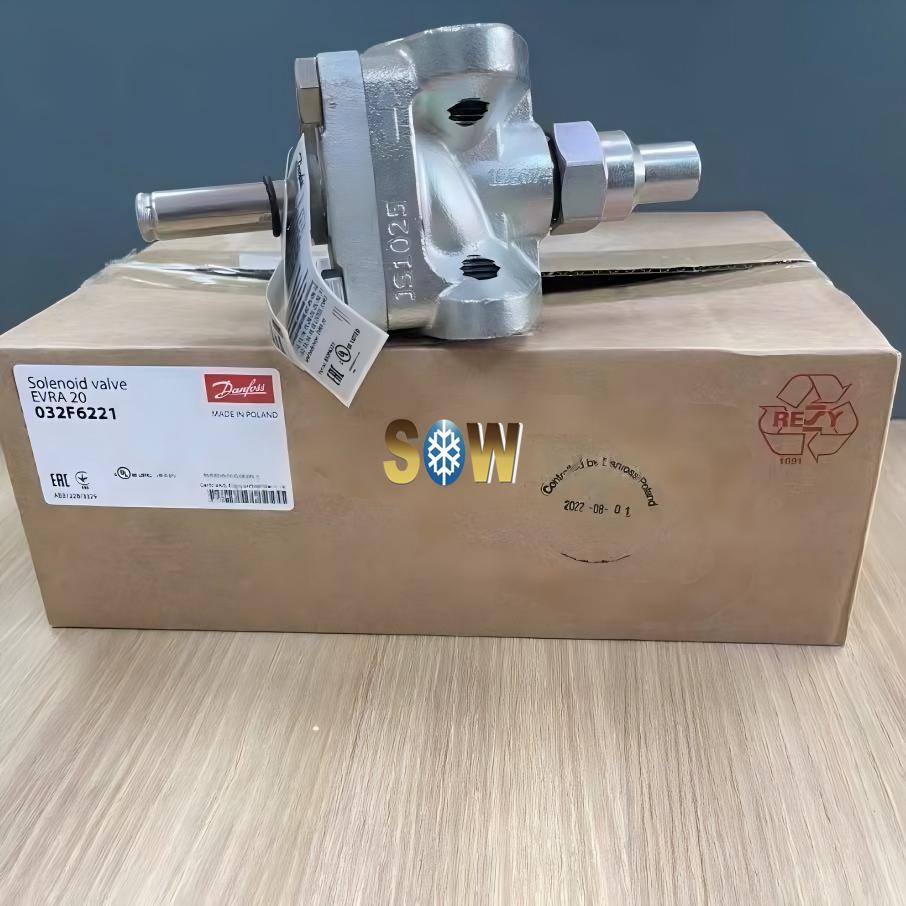

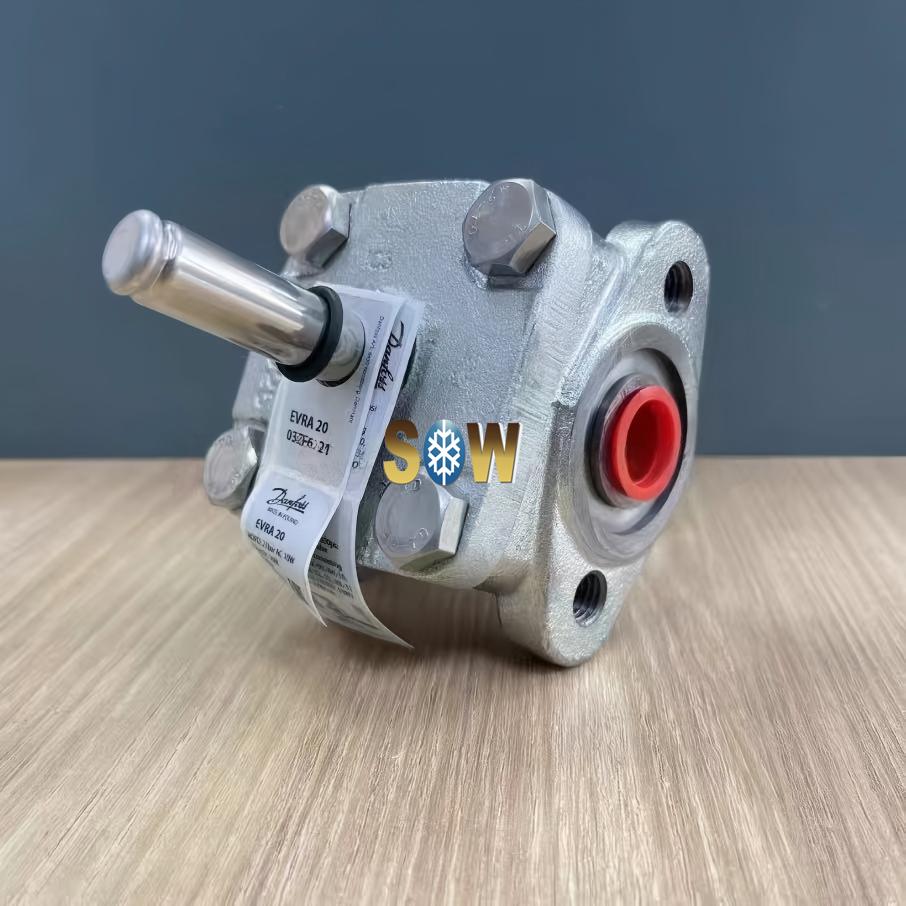

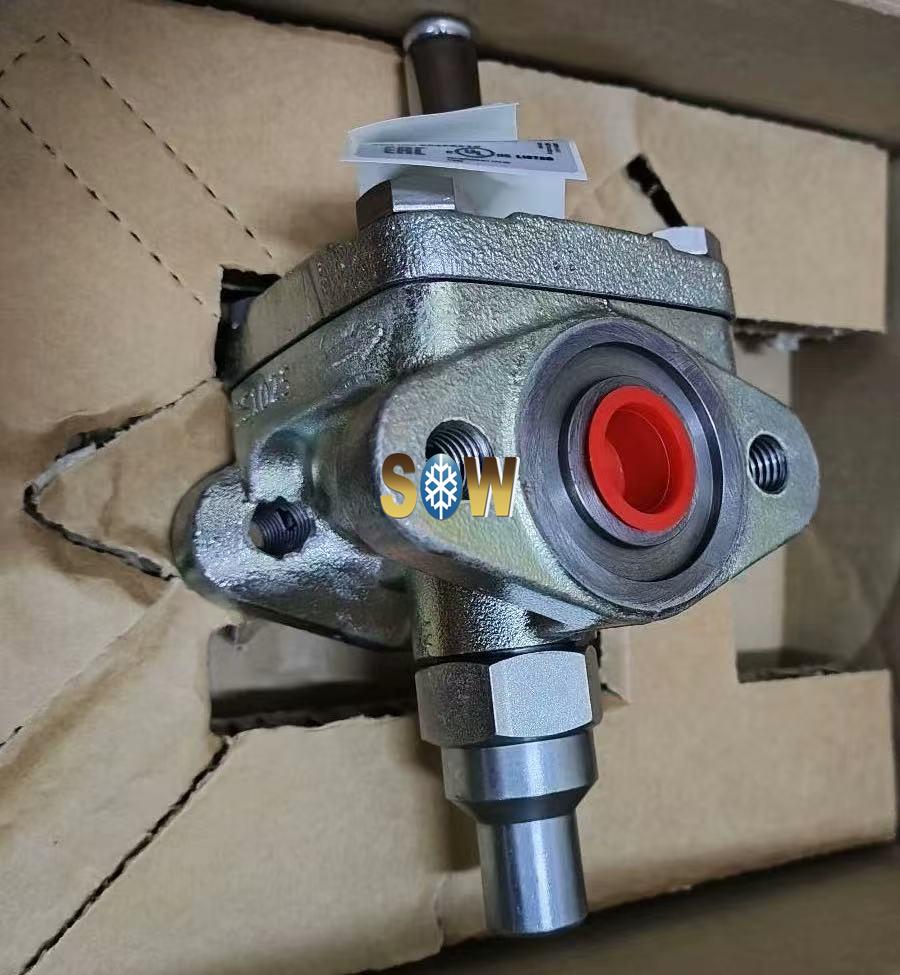

Name:Danfoss Solenoid valve EVRA 20 032F6221
Brand:Danfoss
Model No.:EVRA 20
Part No.:032F6221
Country of origin:Poland
G.W:2.654kgs/pc
Function:NC
Inlet connection type:Flange
Outlet connection type:Flange
Cv value [gal/min]:5.200
Kv value [m³/h]:4.500

Product Description

Danfoss Solenoid valve EVRA 20 032F6221

Product details

Gross weight 2.654 Kg
Net weight 2.434 Kg
Volume 6.248 Liter
EAN 5702422178187
Gross weight 2.654 Kg
Net weight 2.434 Kg
Volume 6.248 Liter
EAN 5702422178187

Actuator system [mm] 13.5 mm
Ambient temperature -40 - 80 °C
Ambient temperature range [°F] [max] 175 °F
Ambient temperature range [°F] [min] -40 °F
Approval C UL US LISTED
EAC
LLC CDC TYSK
Body material Cast iron
Coil No
Cv value [gal/min] 5.2 gal/min
Direction Straightway
EU RoHS compliance No - out of scope
Flow direction indicator Embossed 1-way arrow
Function NC
In scope of WEEE and contain batteries No
Inlet connection type Flange
Kv value [m³/h] 4.5 m³/h
Manual operation option Yes
Max. Working Pressure [bar] 42 bar
Max. Working Pressure [psig] 610 psig
MaxOPD[bar] 10W AC 21 bar
MaxOPD[bar] 12W AC 25 bar
MaxOPD[bar] 20W DC 13 bar
MaxOPD[psi] 14W AC 300 psi
Medium temp. range note Defrost max 130°C/265°F
Medium temperature range [°C] [max] 105 °C
Medium temperature range [°C] [min] -40 °C
Medium temperature range [°F] [max] 221 °F
Medium temperature range [°F] [min] -40 °F
MinODP [bar] 0.05 bar
MinODP [psi] 0.72 psi
Orifice size [mm] 20 mm
Outlet connection type Flange
Packing format Single pack
