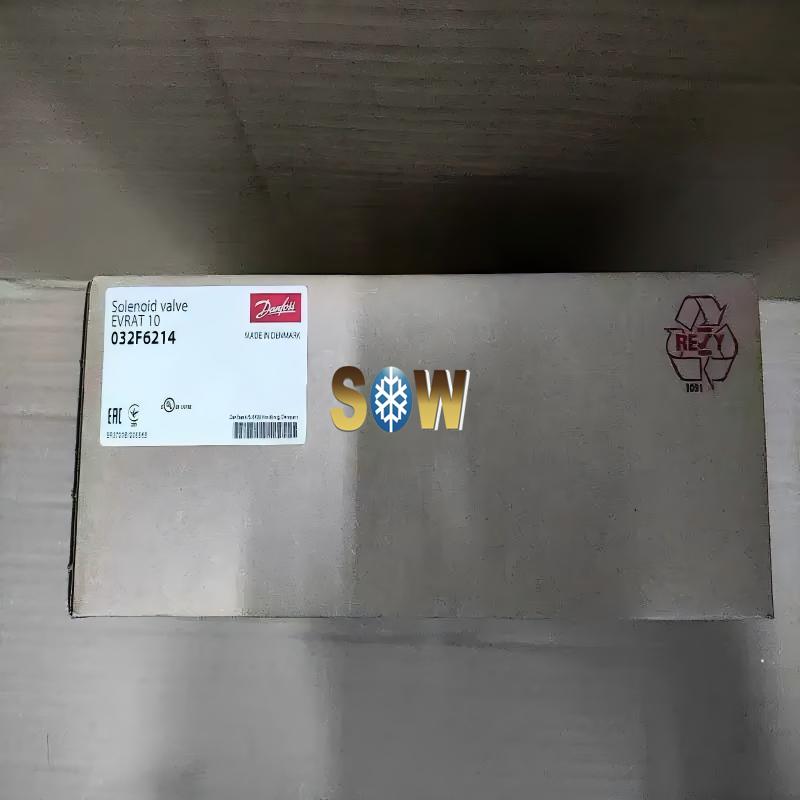

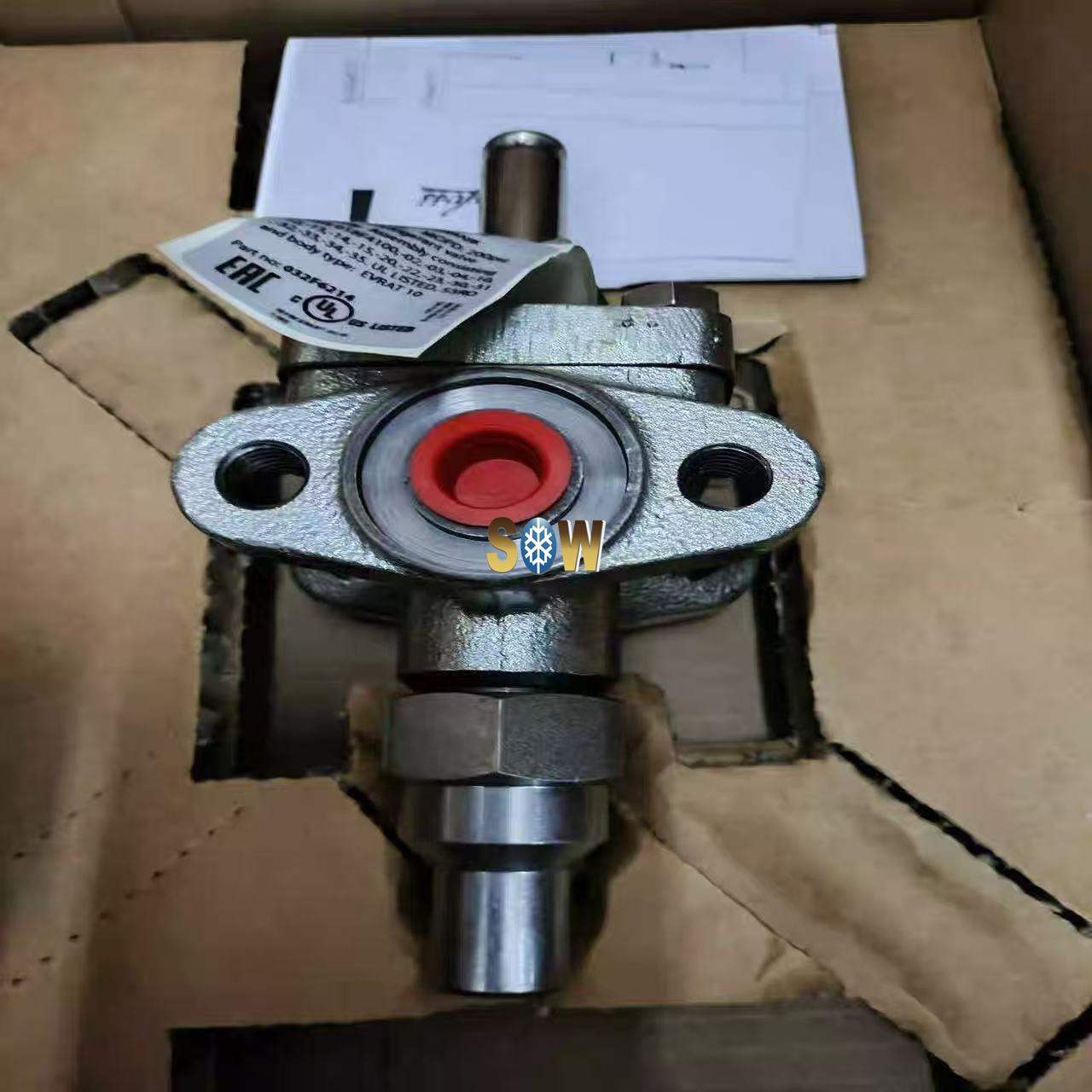

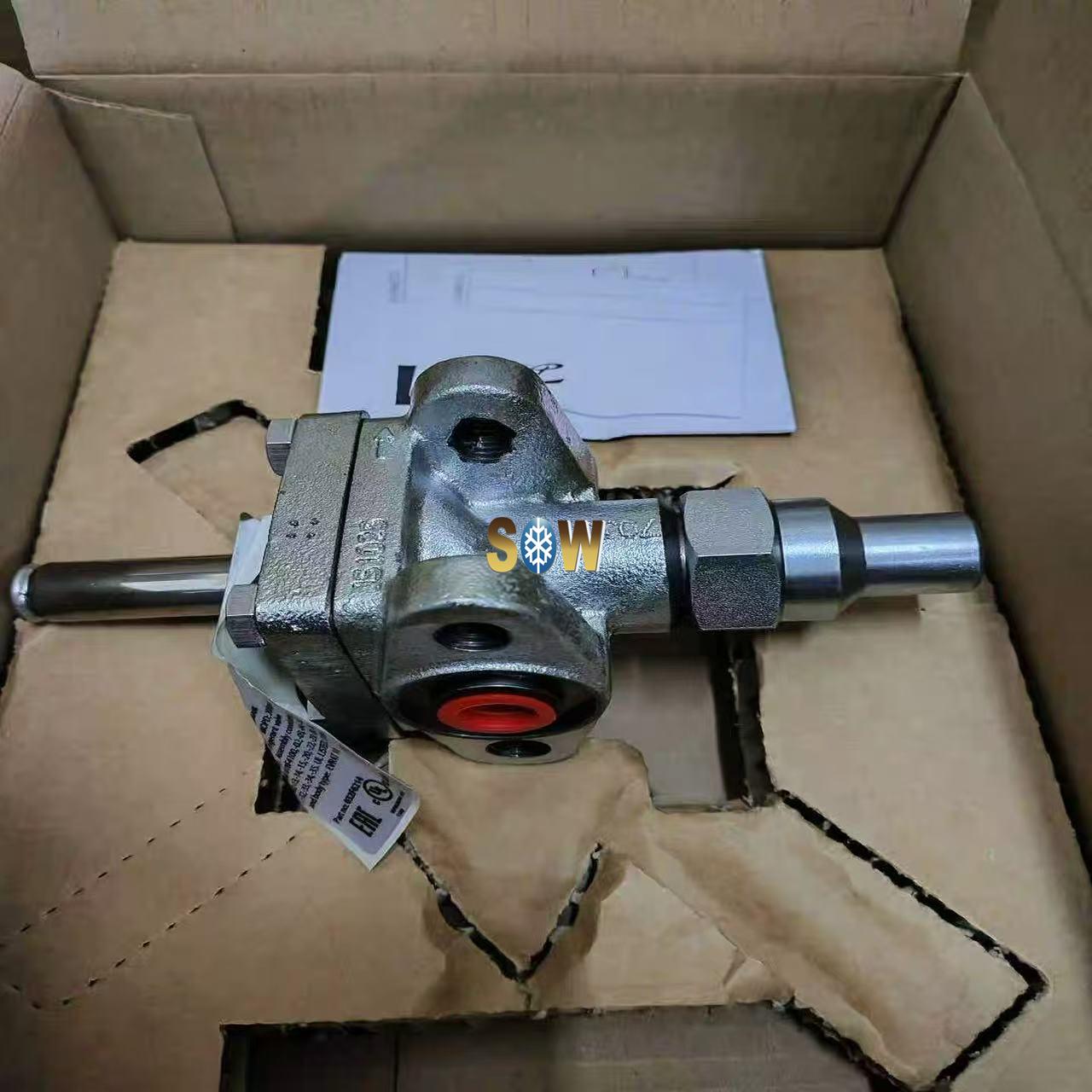

Danfoss Solenoid valve, EVRA 10 032F6214

This product has been discontinued.

CHARACTERISTIC

VALUE

TYPE CODE

EVRAT 10

WEIGHT

1.53 Kg

ACTUATOR SYSTEM

13,5 mm

AMBIENT TEMP.

-40 - 80 °C

AMBIENT TEMP. RANGE

-40 - 175 °F

APPROVAL

C UL US LISTED, EAC, LLC CDC TYSK

COIL

No

CV VALUE

1,730 gpm US

DIRECTION

Straightway

EAN NO.

5702422177968

FUNCTION

N C

INLET TYPE

Flange

KV VALUE

1,500 m3/h

MAN. OPERAT.

Yes

MWP

42,0 bar

MWP

610 Psig

MAX. OPD, 10W AC

14 bar

MAX. OPD, 12W AC

21 bar

MAX. OPD, 20W DC

16 bar

MAX. OPD, 14W AC

200 psi

MEDIUM TEMP.

-40 - 105 °C

MEDIUM TEMP.

-40 - 221 °F

MIN. ODP

0,000 bar

ORIFICE SIZE

10,00 mm

OUTLET TYPE

Flange

PACK FORMAT

Single pack

PROD. GROUP

Solenoid valves

PROD. NAME

Solenoid valve

PACK QTY.

1 PC

REFRIGERANT

HCFC/HFC

REFRIGERANT

R717

TYPE DESIGN.

Solenoid valve
