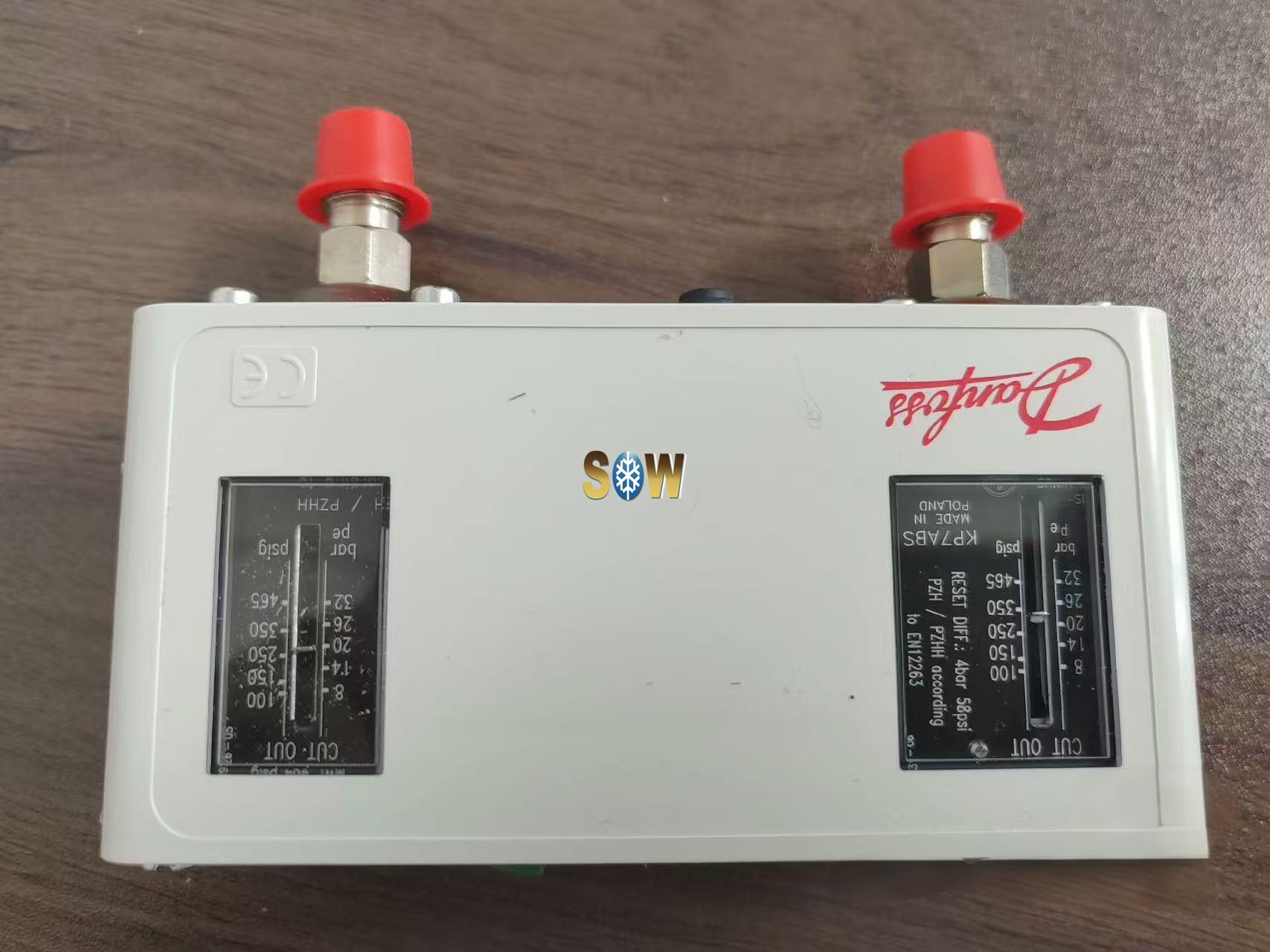

Name:	Danfoss Pressure switch, KP7ABS 060-501366
Brand:	Danfoss
Model No.:	KP7ABS
Part No.:	060-501366
Country of origion:	Poland
G.W:	0.552kgs/pc
Regulation left side [bar]Pe:	8 - 32
Regulation right side [bar]Pe:	8 - 32
Differential left side [bar]:	4
Differential right side [bar]::	4
Contact function:	2 SPST(NC)
Reset function, left side:	Manual Max
Reset function, right side:	Manual Max

Danfoss Pressure switch, KP7ABS 060-501366

Product details

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	65 °C
Ambient temperature range [°C] [min]	-25 °C
Ambient temperature range [°F] [max]	149 °F
Ambient temperature range [°F] [min]	-13 °F
Application note	Not applicable for liquid line
Approval	CCC CE CMIM DNV EAC LLC CDC EURO-TYSK LVD PED RINA RMRS RoHS China c UL us UL873, CS C22.2
Burst pressure [bar]	140 bar
CE evaluated	Yes
China RoHS compliance	Yes
Contact function	2 SPST(NC)
Contact rating	AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V
Contains batteries	No
Differential left side [bar]	4 bar
Differential left side [psi]	58 psi
Differential right side [bar]	4 bar
Differential right side [psi]	58 psi
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Rubber cable gland
Electrical connection size	6-14 mm
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP30
Enclosure rating Nema (~)	1
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Fluid Group	1
In scope of WEEE	Yes
Lubricants compatibility	Oilfree applications
Max.test press.left side[bar]	35 bar
Max.test press.right side[bar]	35 bar
MWP left side [bar] Pe	35 bar
MWP left side [psig] Pe	510 psig

MWP right side [bar] Pe	35 bar
MWP right side [psig] Pe	510 psig
Oil free refrigerants	R134a R513A R515B
Packing format	Multi pack
PED category	IV
Pressure connection notes	Cutting ring 6mm tube
Pressure connection size	12 x 1.5
Pressure connection standard	ISO 8434-1
Pressure connection type	M
Pressure Male/Female	Male
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Dual Pressure Control
Quantity per packing format	24 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0)
Refrigerants	R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B R717 R1233zd(E)
Regulation left side [bar]Pe [max]	32 bar
Regulation left side [bar]Pe [min]	8 bar
Regulation left side [psig]Pe [max]	464 psig
Regulation left side [psig]Pe [min]	116 psig
Regulation right side [bar]Pe [max]	32 bar
Regulation right side [bar]Pe [min]	8 bar
Regulation right side [psig]Pe [max]	464 psig
Regulation right side [psig]Pe [min]	116 psig
Reset function, left side	Manual Max
Reset function, right side	Manual Max
SCIP dossier no.	ec459161-9478-495c-870e-4ae0f13b89b4
SCIP dossier product name	KP Pressure Switch
Serviceable	No
UL approval file name	E31024
UL approved refrigerants	R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B R717
UL evaluated	Yes
