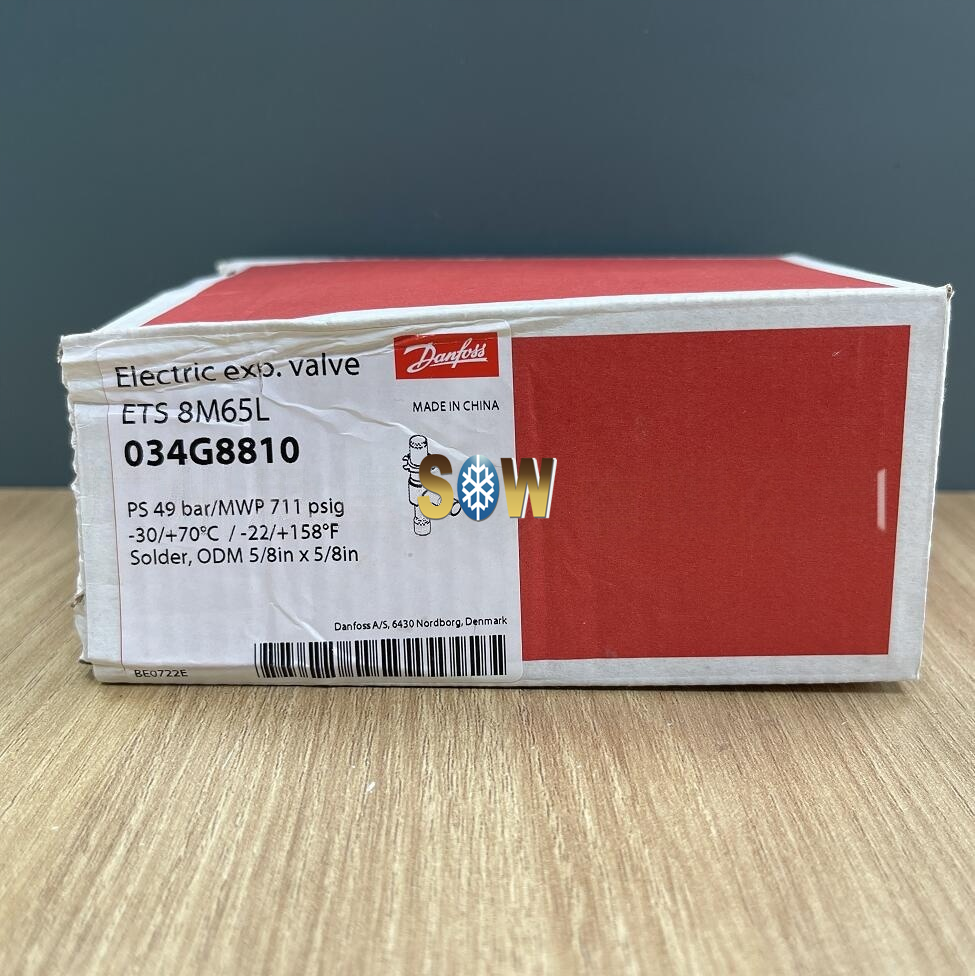

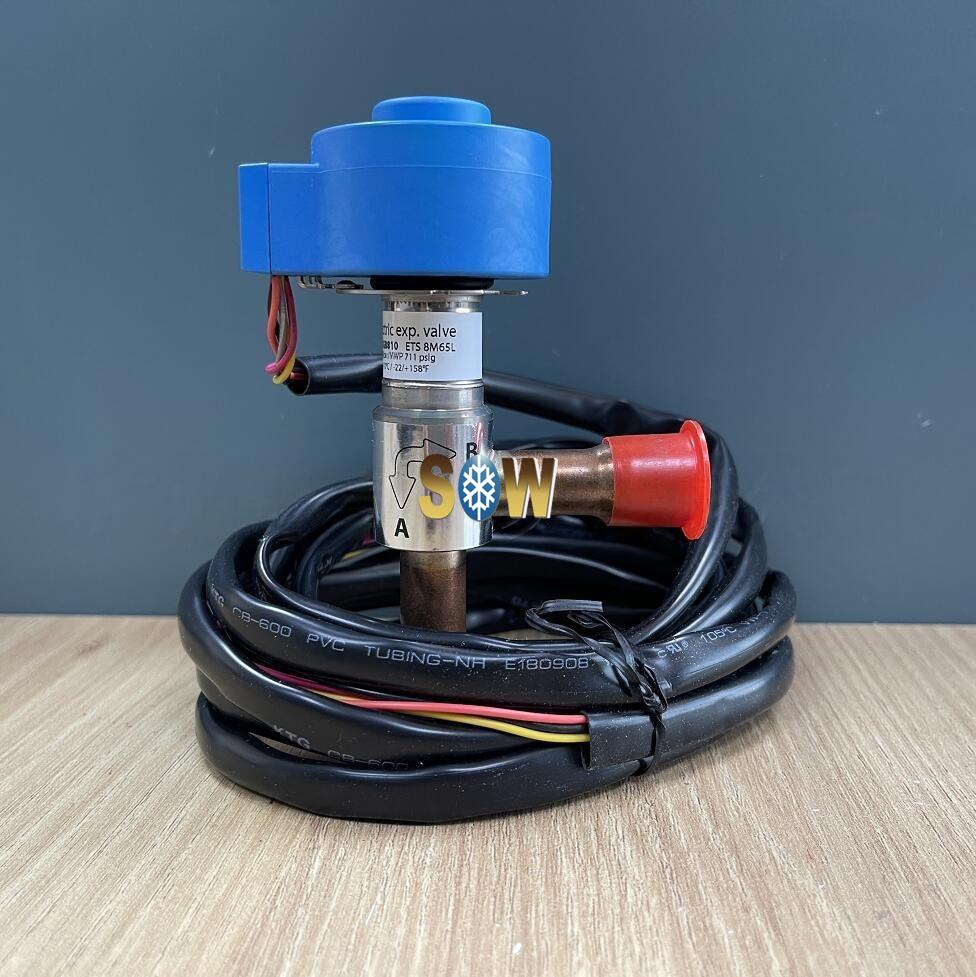

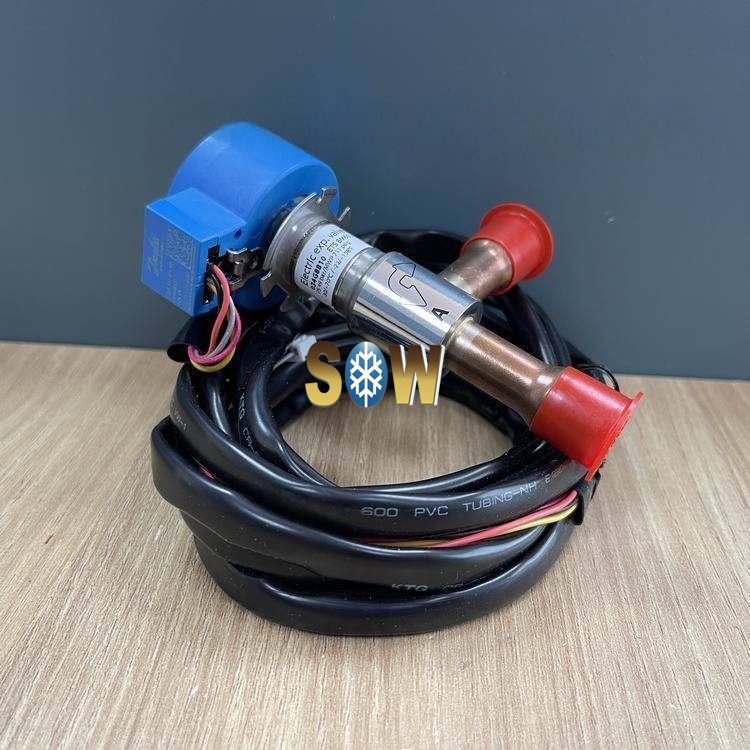

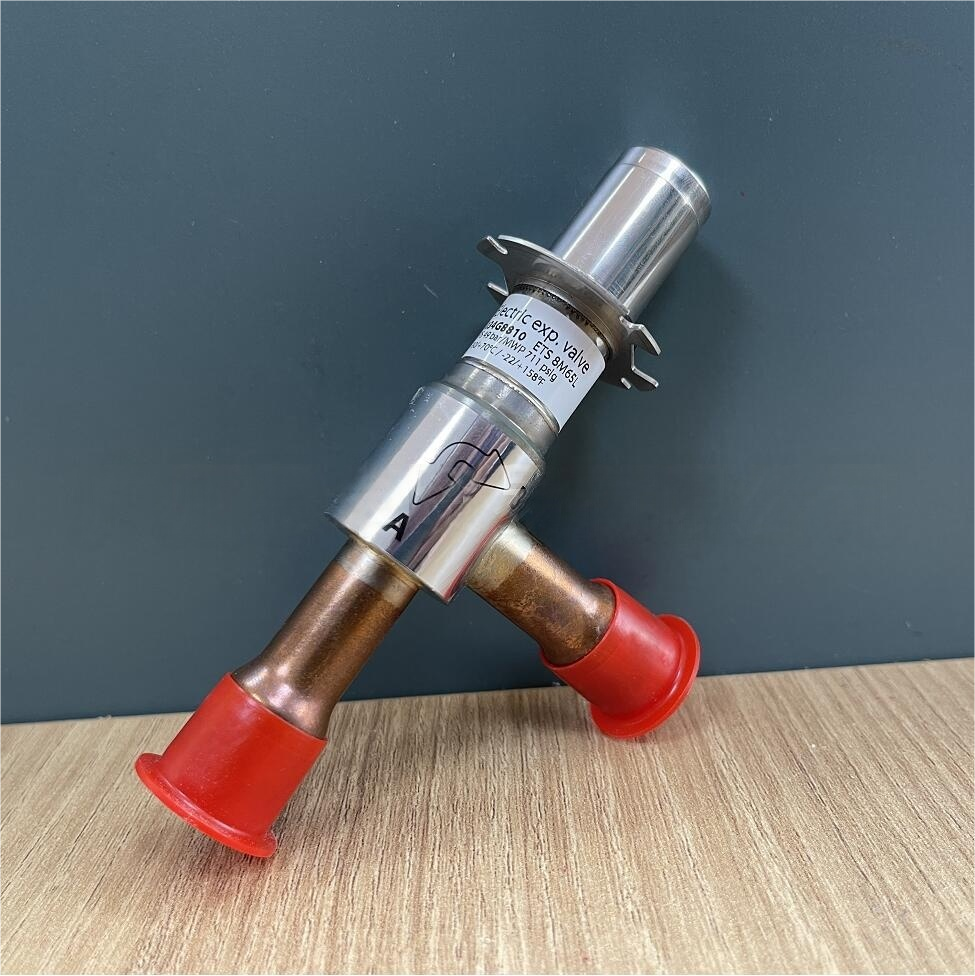

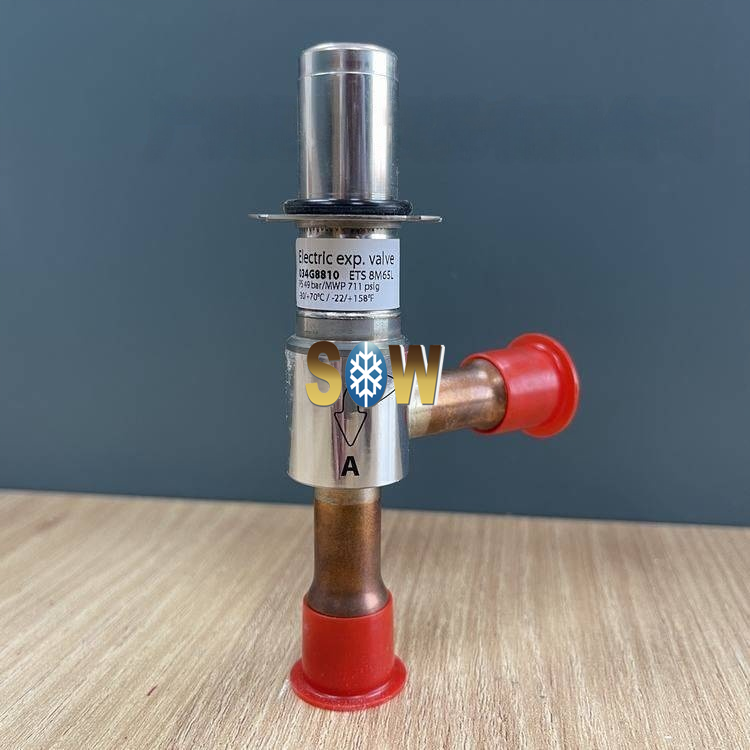

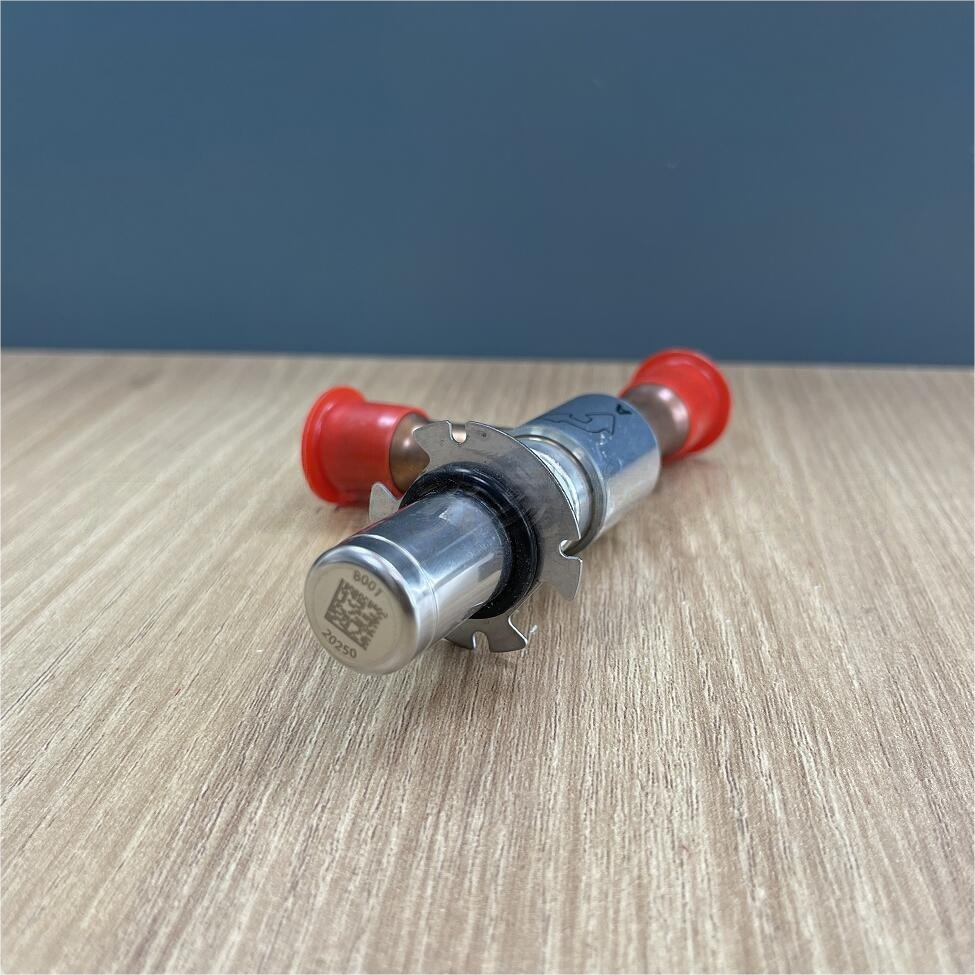

Name:	Danfoss Electric expansion valve, ETS 8M65L 034G8810
Brand:	Danfoss
Model No.:	ETS 8M65L
Part No.:	034G8810
Country of origion:	China
G.W:	0.218kgs/pc
Refrigerant temperature [ºC] [max]:	70
Refrigerant temperature [ºF] [max]:	158
Inlet connection size [in]:	5/8 in
Outlet size [in]:	5/8 in

Danfoss Electric expansion valve, ETS 8M65L 034G8810

Product details

Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-22 °F
Approval	cURus
China RoHS compliance	Yes
Connection material	Copper
Connection type	Solder, ODM
Contains batteries	No
Design config. Style	L
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flow characteristic	Linear
Flow direction	Bi-flow
Inlet size [in]	5/8 in
Lubricants compatibility	POE PVE
Max. Working Pressure [bar]	49 bar
Max. Working Pressure [psig]	711 psig
MaxOPD [bar]	39 bar
MaxOPD [psig]	566 psig
MaxOPD reverse [bar]	32 bar
MaxOPD reverse [psi]	497.1 psi
Min. Leakage [cm³/min] @ 1 Mpa	800 cm³/min
Motor type	Permanent magnet stepper motor
Orifice size [mm]	6.5 mm

Outlet size [in]	5/8 in
Packing format	Multi pack
Parts Program name	ETS 8M
PED category	Art. 4, par. 3
Quantity per packing format	12 pc
Rated cap. conditions [SI]	Tc=38°C Te=5°C Tl=34°C
Rated capacity R410A [kW]	114.2 kW
Rated capacity R410A [TR]	32.4 TR
Refrigerant temperature [ºC] [max]	70 °C
Refrigerant temperature [ºC] [min]	-30 °C
Refrigerant temperature [ºF] [max]	158 °F
Refrigerant temperature [ºF] [min]	-22 °F
Refrigerants	R1234ze(E) R134a R290 R32 R404A R407C R410A R448A R449A R449B R452A R452B R454B R454C R513A R515B
Relative humidity (RH) [%] [max]	95 %
Relative humidity (RH) [%] [min]	0 %
Serviceable	No
Step mode	1-2 excitation (half step)
Storage temperature range [°C] [max]	60 °C
Storage temperature range [°C] [min]	-30 °C
Storage temperature range [°F] [max]	140 °F
Storage temperature range [°F] [min]	-22 °F
Total steps	500 (half steps)
UL evaluated	Yes
Valve open pulses@normal flow	37 ± 15 steps
Valve open pulses@reverse flow	37 ± 15 steps
