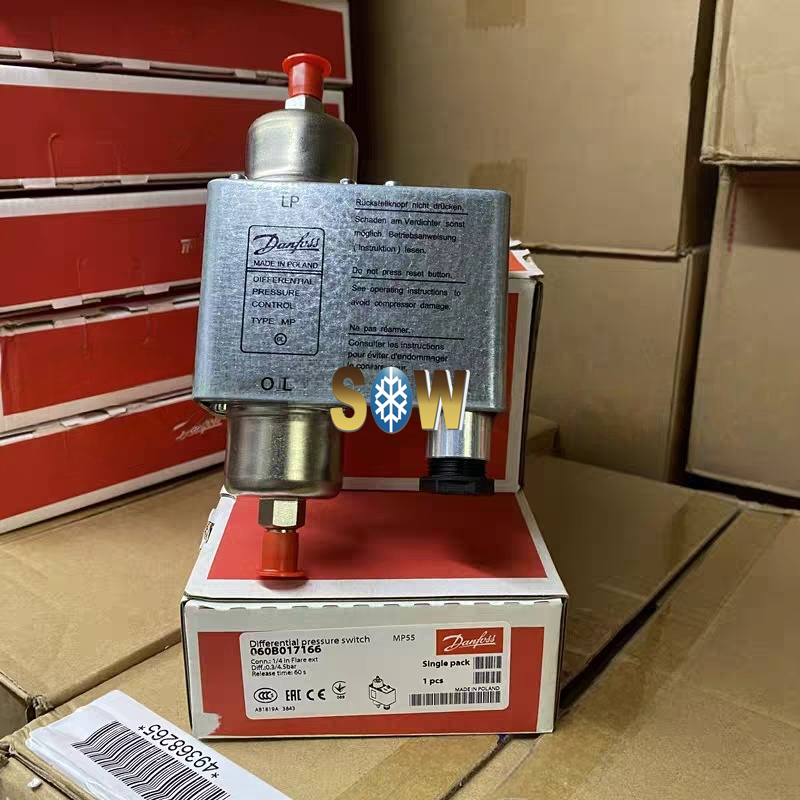

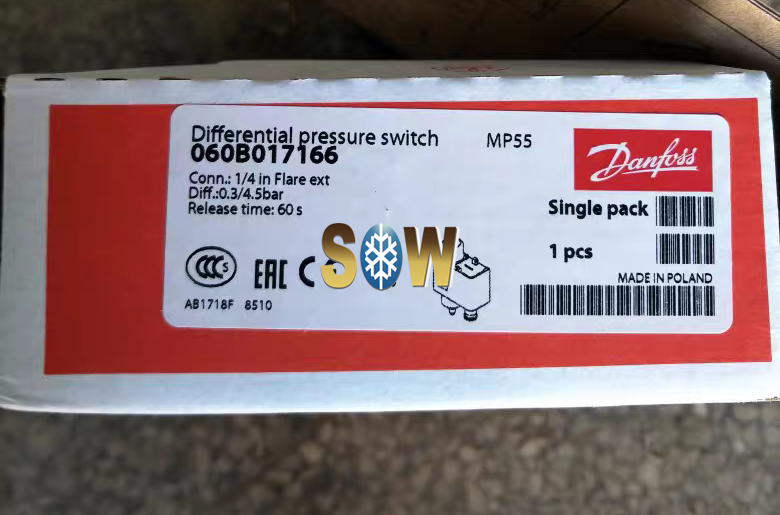

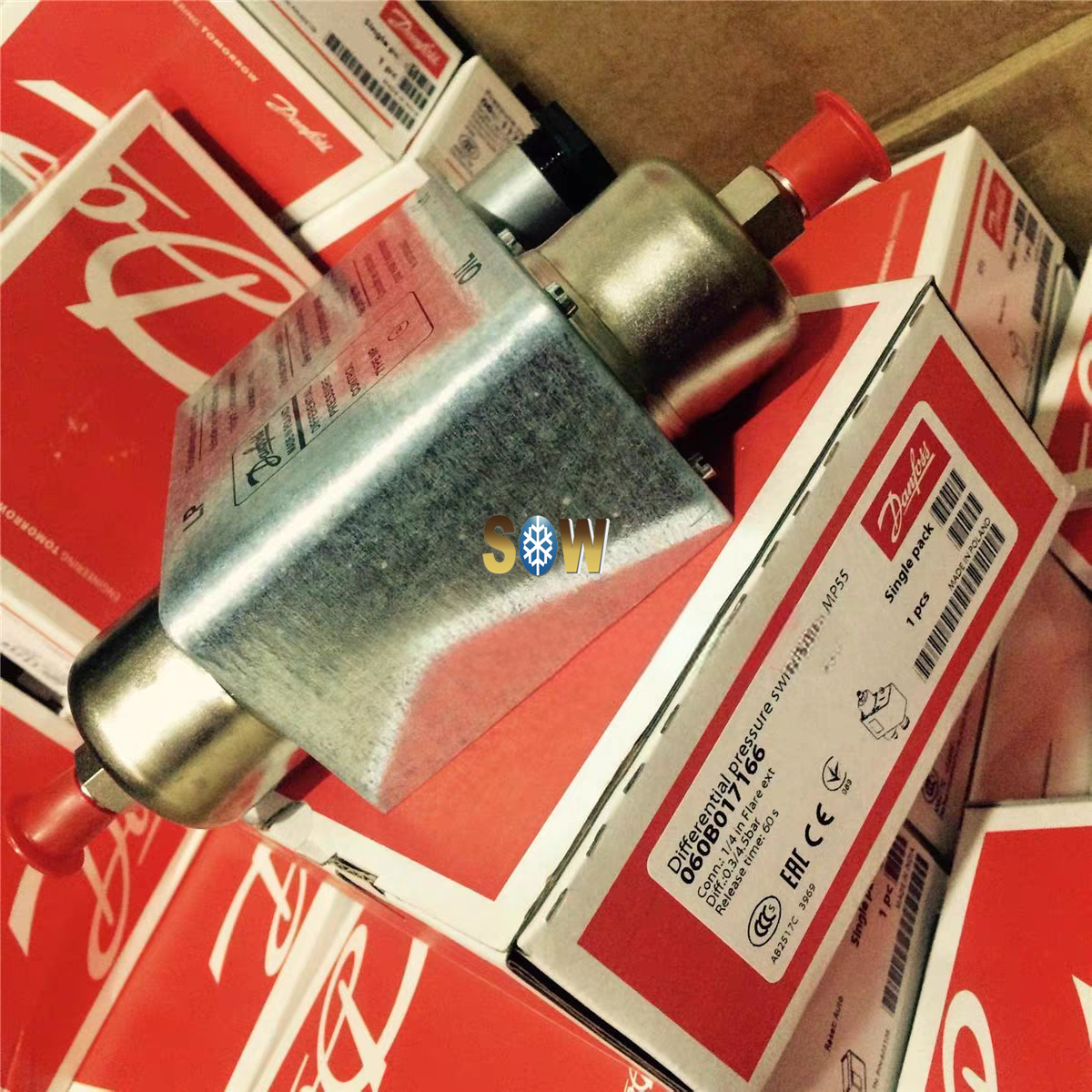

Name:	Danfoss Differential pressure switch, MP55 060B017166
Brand:	Danfoss
Model No.:	MP55
Part No.:	060B017166
Country of origion:	Poland
Diff.press.setting range [bar]:	0.3 - 4.5
Reset function:	Manual Min
Pressure connection type:	Flare
Pressure connection size:	1/4 in
Enclosure rating IP:	IP20
Max. Working Pressure [bar]:	17
N.W:	0.748kgs/pc

Danfoss Differential pressure switch, MP55 060B017166

This product has been discontinued.

Product details

Type	MP55
Product group	Switches and thermostats
Product Name Description	Differential pressure switch

Adjustment	Cut out for falling pressure
Amb. Temp. Note	Bellows max 100 °C/212 °F
Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	140 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CCC CE CMIM EAC GL LLC CDC EURO-TYSK LVD RINA RoHS RoHS China TYSK UKCA
CE evaluated	Yes
China RoHS compliance	Yes
Contact differential [bar]	0.2 bar
Contact function	SPDT
Contact rating	AC15=2 A, 250 V DC13=0.2 A, 250 V
Contains batteries	No
Diff.press.setting range [bar] [max]	4.5 bar
Diff.press.setting range [bar] [min]	0.3 bar
Diff.press.setting range [MPa] [max]	0.45 MPa
Diff.press.setting range [MPa] [min]	0.03 MPa
Diff.press.setting range [psi] [max]	65 psi
Diff.press.setting range [psi] [min]	4.3 psi
Electrical conn. Male/Female	Female
Electrical connection	Screwed cable entry
Electrical connection size	Pg 13.5
Electrical connection standard	DIN 40430
Electrical spec. standard	EN 60947-5
EN 60947 electrical properties	Insulation: 250V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 2A
EN 60947 wiring properties	Flex, ferrules: 0.2-1.0 mm2 Flex, no ferrules: 0.2-1.5 mm2 Solid/stranded: 0.2-1.5 mm2
Enclosure rating IP	IP20
Equipment	Thermal time relay

EU RoHS compliance	Out of scope
Factory setting [bar]	0.65 bar
Factory setting [psig]	9 psig
Max. test pressure [bar] Pe	22 bar
Max. test pressure [psig]	319 psig
Max. Working Pressure [bar]	17 bar
Max. Working Pressure [psig]	245 psig
Operat. range LP side [bar] Pe [max]	12 bar
Operat. range LP side [bar] Pe [min]	-1 bar
Operat. range LP side [psig]Pe [max]	175 psig
Operat. range LP side [psig]Pe [min]	-15 psig
Other RoHS documentation	Saudi Arabia RoHS
Packing format	Multi pack
Pressure connection size	1/4 in
Pressure connection standard	DIN 8906
Pressure connection type	Flare
Pressure Male/Female	Male
Product accessories	Generic accessories
Product description	Diff. Pressure Switch
Quantity per packing format	21 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B
Relay release time [s]	60 s
Reset function	Manual Min
SCIP dossier no.	d6c79256-254f-4a74-9674-fbd37043a658
Serviceable	No
UL approved refrigerants	R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B
