Location:Index--->Product Center >> Danfoss Filter/Emerson Alco Filter >> Danfoss Hermetic filter drier, DML165, 16 cu.in., Steel 023Z504591


|
|
||||||||||||||||||||||||
Product Description

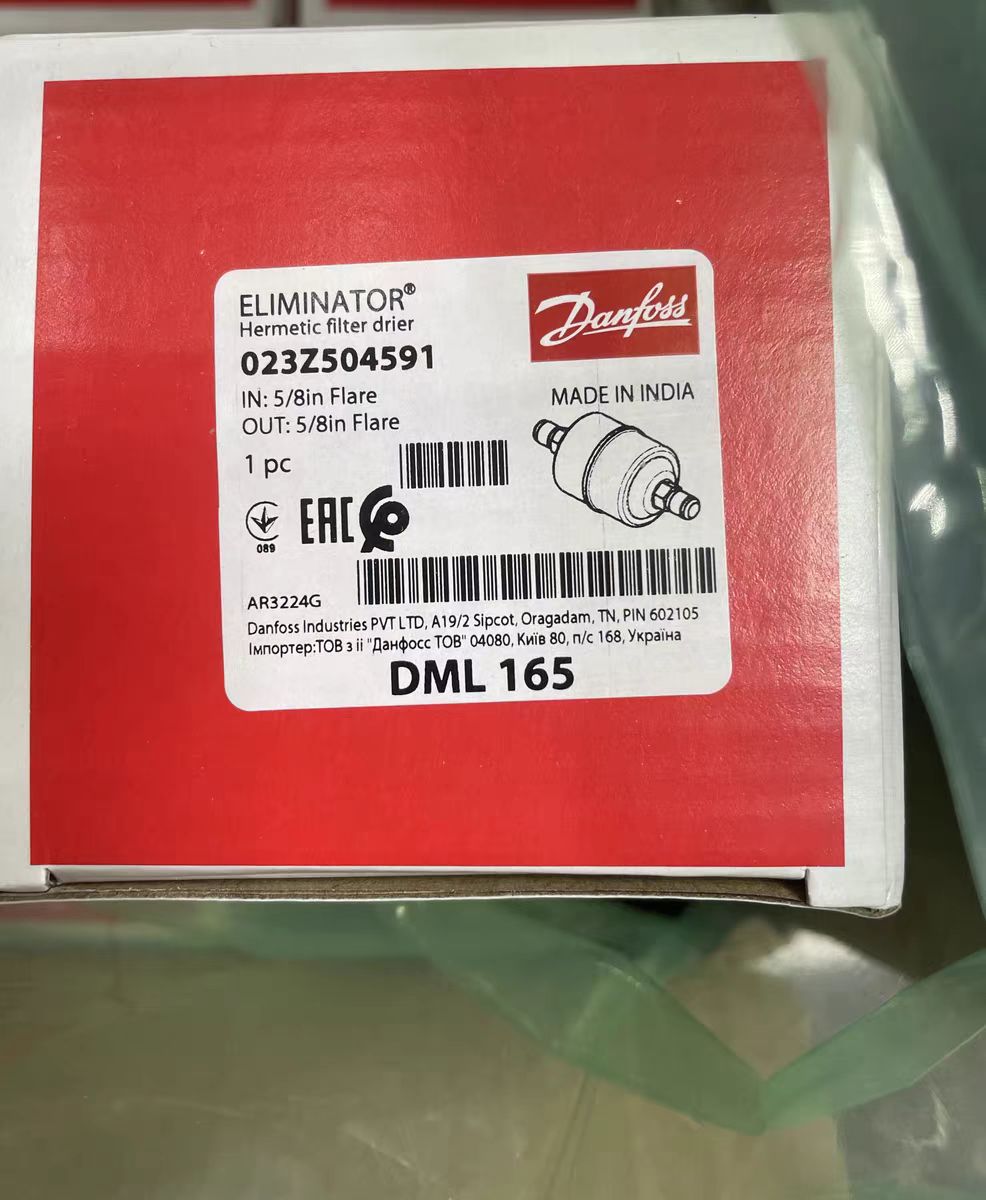

Danfoss Hermetic filter drier, DML165, 023Z504591
Product details
| Gross weight | 0.802 Kilogram |
| Net weight | 0.748 Kilogram |
| Volume | 1.311 Liter |
| EAN | 5702428650120 |
| Type | DML |
| Product group | Filter driers |
| Product Name Description | Hermetic filter drier |
| Acid capacity [g] | 1.2 g |
| Acid capacity [oz] | 0.042 oz |
| Activated alum/Molec sieve [%] | 0% / 100% |
| Activated alumina [%] | 0 % |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| China RoHS compliance | Yes with exemptions |
| Connection material | Steel |
| Contains batteries | No |
| Core | Solid core |
| Core Size code | 16 cu.in. |
| Core type | Solid core |
| Drying Cap[Drops of Water]24°C | R134a: 559 R290: -- R32: 470 R404A: 582 R407C: 543 R410A: 506 R507: 610 |
| Drying Cap[Drops of Water]52°C | R134a: 512 R290: -- R32: 433 R404A: 551 R407C: 500 R410A: 450 R507: 548 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) |
| Filter application | High Moisture Capacity |
| Flow capacity [kW] | R134a: 38.7 R290: -- R32: 58.9 R404A: 27.2 R407C: 39.6 R410A: 40.2 R507: 26.4 |
| Flow capacity [TR] | R134a: 11.0 R290: -- R32: 16.8 R404A: 7.7 R407C: 11.3 R410A: 11.4 R507: 7.5 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 5/8 in |
| Inlet connection size [mm] | 16 mm |
| Inlet connection type | Flare |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Molecular sieve [%] | 100 % |
| Net volume [foz US] | 7.63 Fluid Ounce US |
| Net volume [l] | 0.226 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 5/8 in |
| Outlet connection size [mm] | 16 mm |
| Outlet connection type | Flare |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Product accessories | Generic accessories |
| Product description | Liquid line filter drier |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R125 R134a R22/R407C R23 R32 R404A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R513A R515B R516A |
| Serviceable | No |
| Shell volume [foz US] | 11.97 Fluid Ounce US |
| Shell volume [l] | 0.35 L |
| Solid core surface [cm2] | 183 cm² |
| Solid core surface [in2] | 28.34 in² |
| Solid core volume [cm3] | 128 cm³ |
| Solid core volume [in3] | 7.84 in³ |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DML 165 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
| UL evaluated | Yes |
