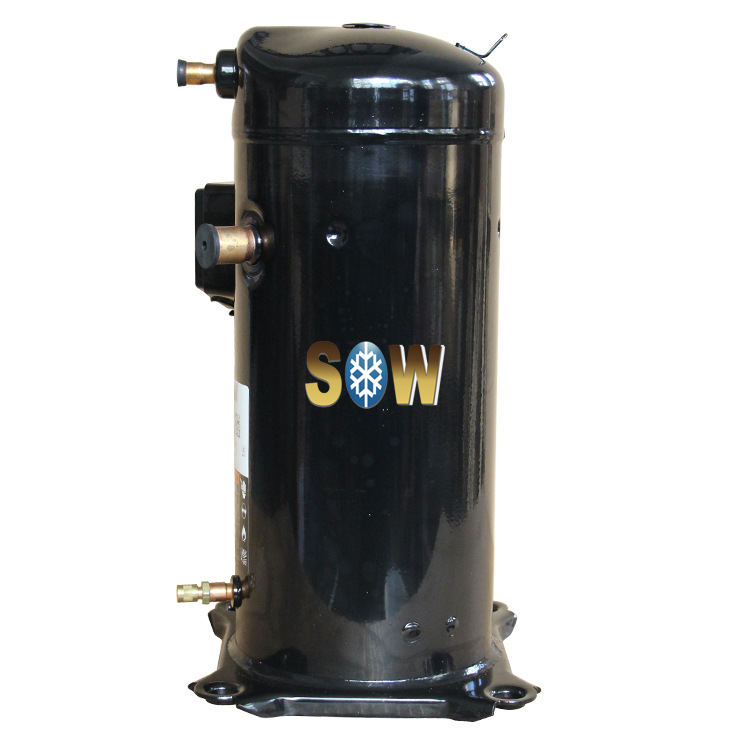

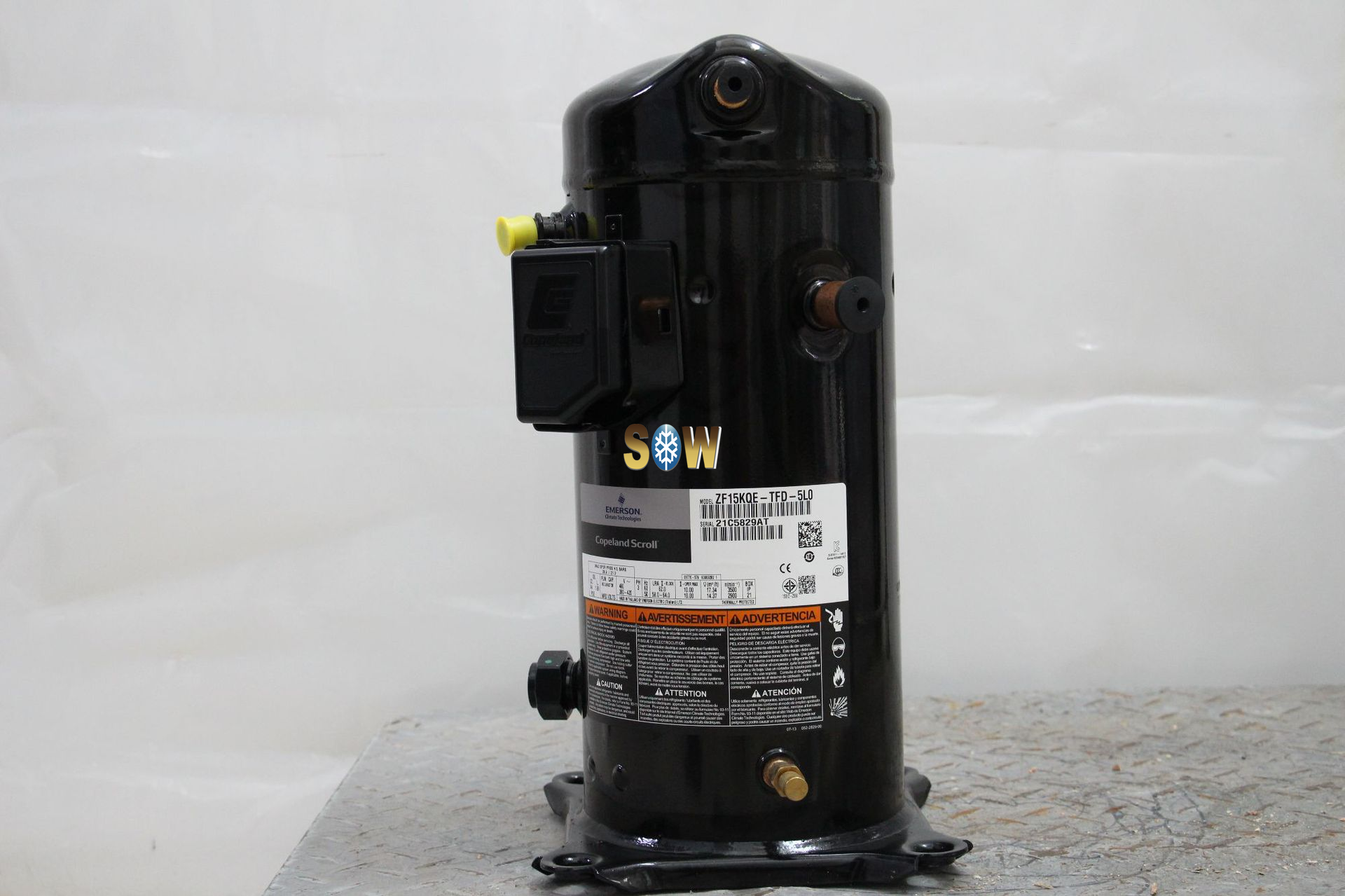

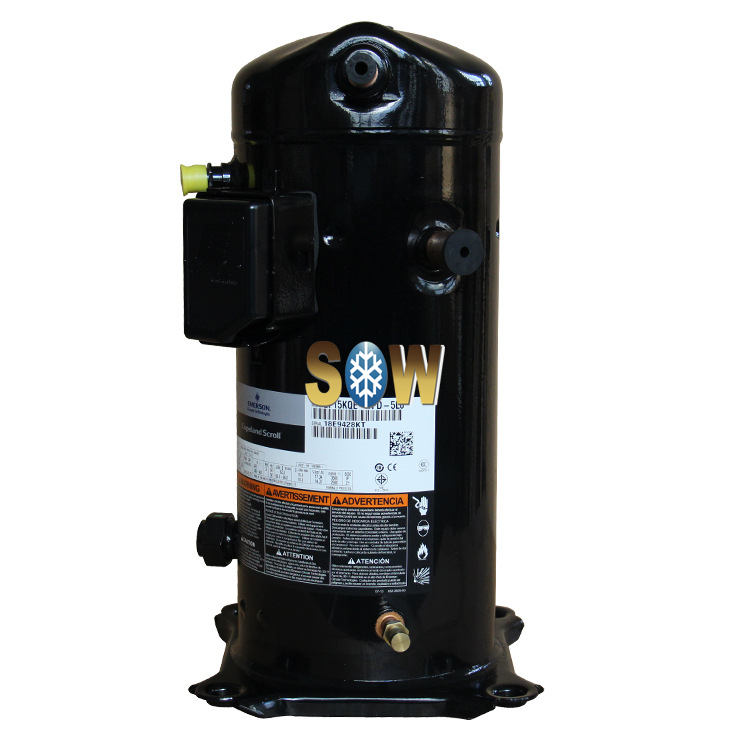

Copeland Scroll 5 HP Low-Temperature Compressor ZF15KQE-TFD-5L0

Brand: Copeland

Material: Cast Iron

Part Number: ZF15KQE-TFD-5L0

Country of Origin: Thailand

Product Type: Scroll Compressor

Industry Certification: CE

Application Field: Low-Temperature Refrigeration

Suitable Scenarios: Low-Temperature Cold Storage

Order Number: ZF15KQE-TFD-5L0

Applicable Range: Low-temperature cabinets, cold storage, etc.

Product Introduction

• ZF and ZFI series compressors are compatible with R22, R404A, R407A/C, R407F, R134a, R448A, and R449A refrigerants

(R134a applicable to select models)

• Incorporates Copeland's unique flexible scroll design, utilizing centrifugal force to interlock scroll plates, ensuring high efficiency while minimizing gas leakage

• ZF and ZFI series compressors operate at condensing temperatures as low as 4.4°C, delivering high seasonal energy efficiency ratios

• Integrated dynamic discharge valves dynamically adjust discharge pressure to prevent gas recompression, significantly boosting efficiency under high-pressure ratios

• Ejector technology enables ZFI compressors to outperform single-stage units in low-temperature applications with superior efficiency

• Both ZF and ZFI series compressors incorporate built-in motor protection against overheating caused by phase loss or insufficient refrigerant charge

• ZF series features a DTC liquid injection valve to regulate compressor discharge temperature

• ZFI series offers optional Emerson EVI injection enhancement accessories to control the injection enhancement circuit while ensuring safe compressor discharge temperature operation

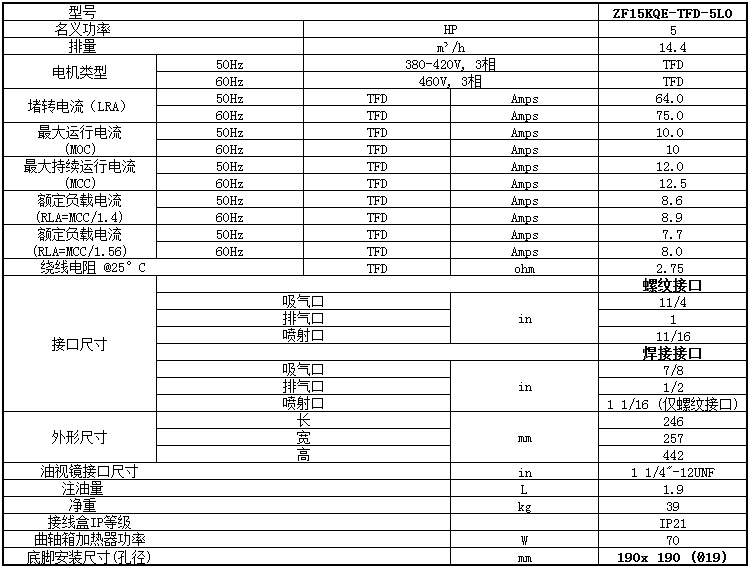

Technical Specifications
