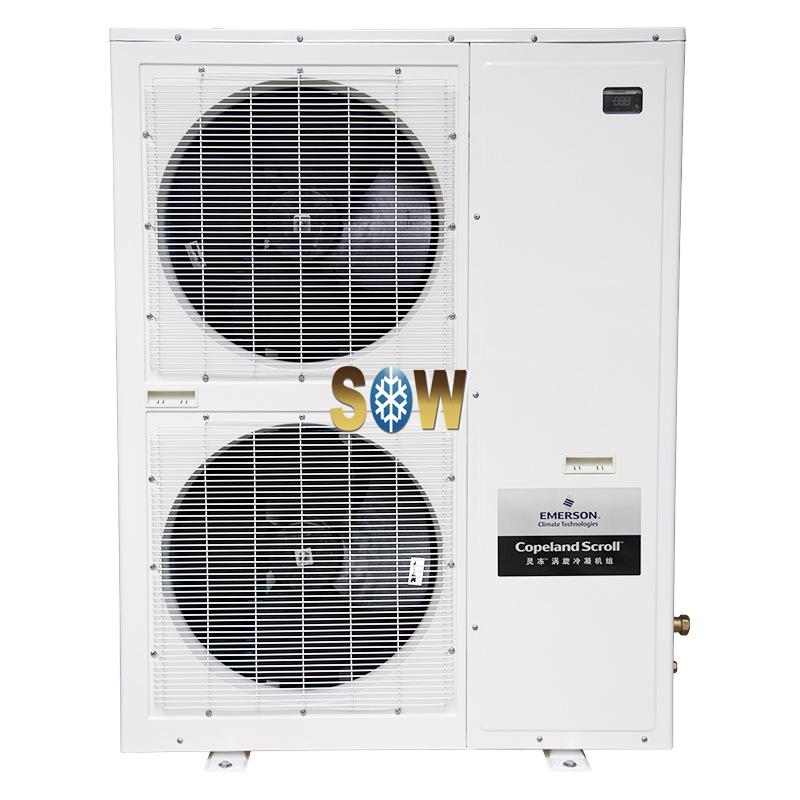

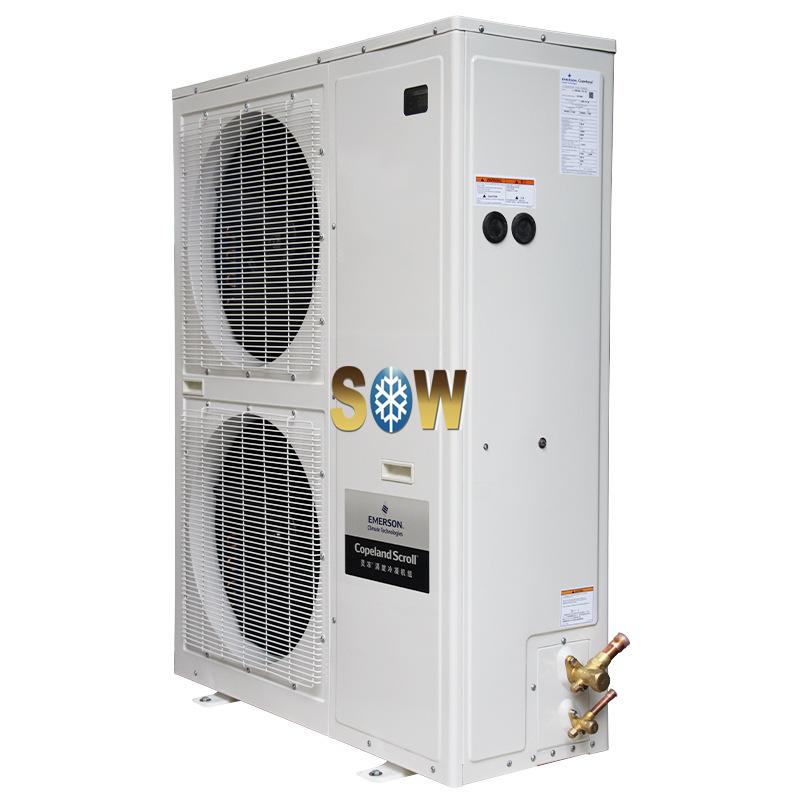

Emerson Original Unit ZXD076BE-TFD-551

Digital Scroll 7.6 HP Medium Temperature Integrated Condensing Unit

Brand: Copeland

Model Number: ZXD076BE-TFD-551

Country of Origin: China

Product Type: Freezer Refrigeration Unit

Place of Origin: Suzhou

Industry Certification: CCC

Application Field: Food Preservation

Order Number: ZXD076BE-TFD-551

Type: Integrated Unit

Also Known As: Refrigeration Unit

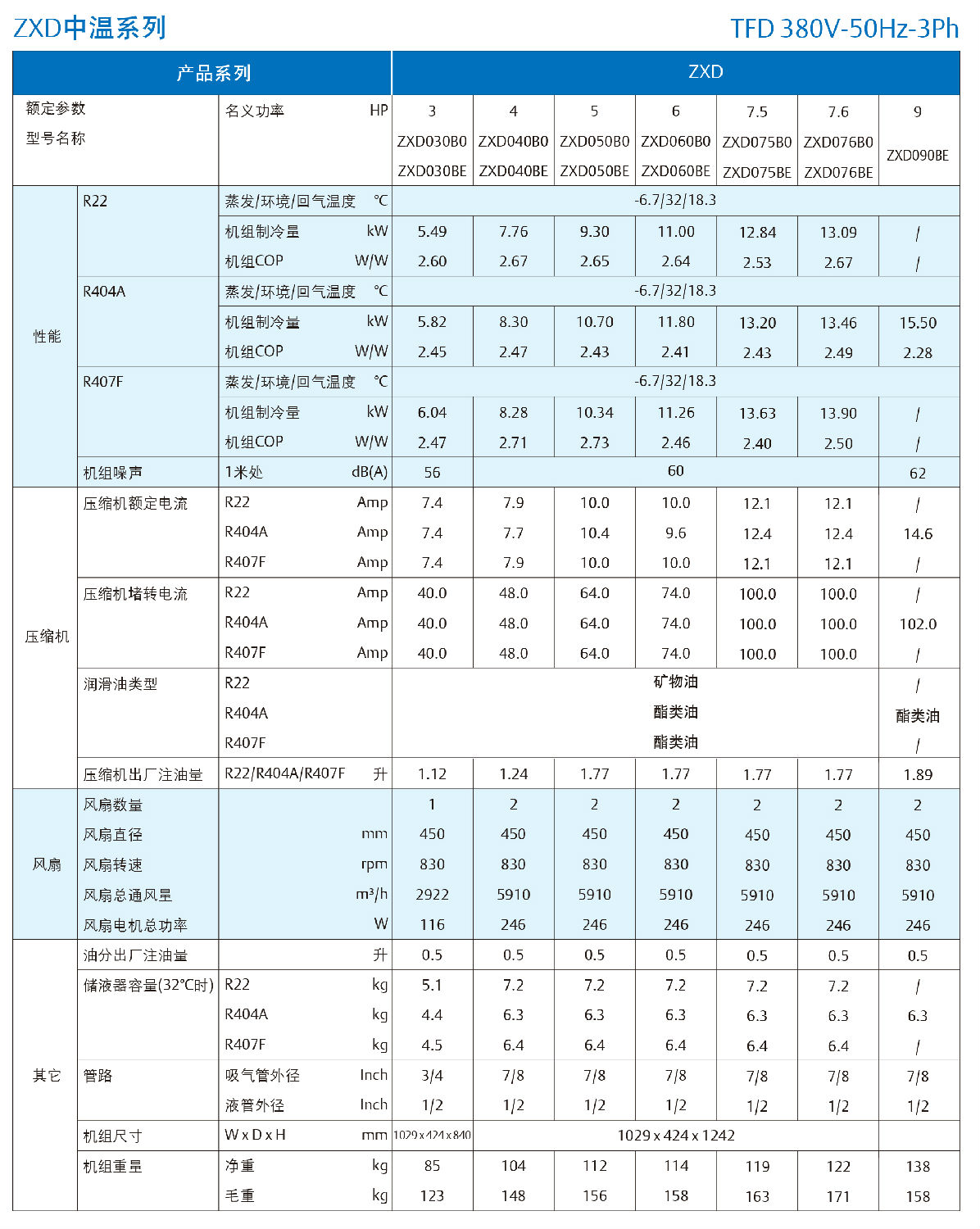

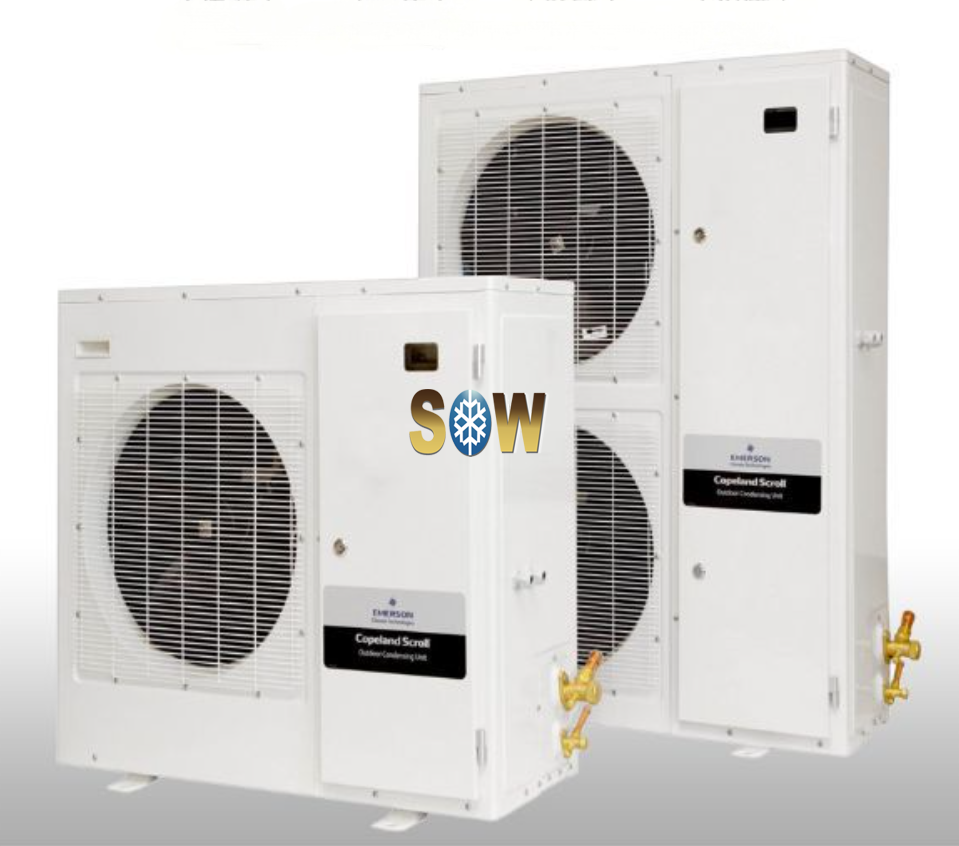

Emerson Climate Technologies customizes the Lingdong Series scroll condensing units for refrigeration applications, offering 2-9HP medium-temperature, digital medium-temperature, and low-temperature condensing units, as well as 12-20HP digital medium-temperature and digital low-temperature condensing units.

Energy Efficiency

Significantly reduced power consumption is achieved through the use of Copeland Scroll™ compressor technology, variable-speed fan motors, large-capacity condensing coils, and enhanced control logic. Compared to hermetically sealed piston units, end users can save over 20% in annual electricity consumption.

Reliability

Combining the proven reliability of Copeland Scroll™ compressors with the enhanced CoreSense™ controller, unit reliability is greatly improved. Fault code alerts and reset functionality provide information that accelerates and improves system diagnostics. The CoreSense™ controller offers protections against overcurrent, high discharge temperature, incorrect rotation, compressor frequent starts, high-pressure shutdown, and low-pressure shutdown. In the event of liquid slugging, the integrated electronic module can also send an alarm to the operator to prevent major damage to the unit.
