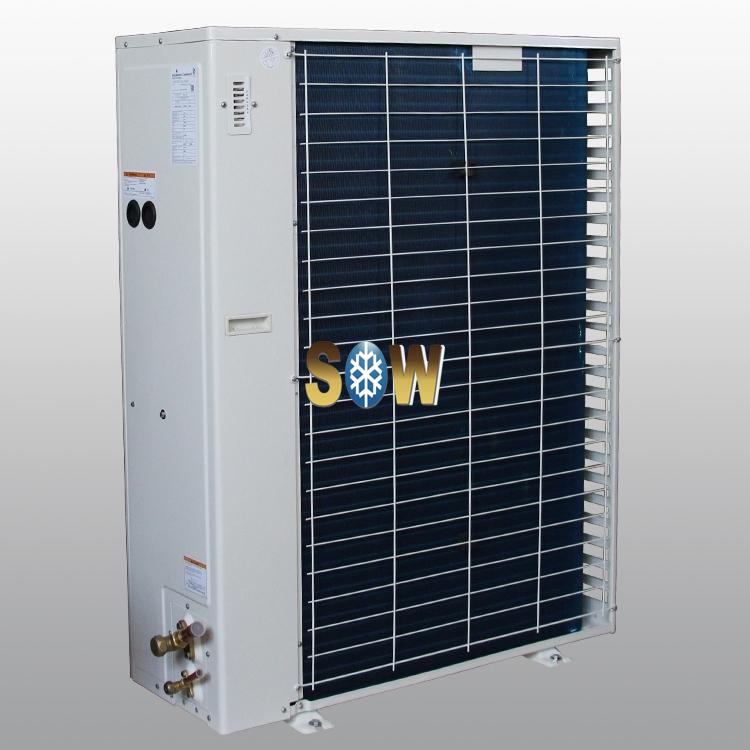

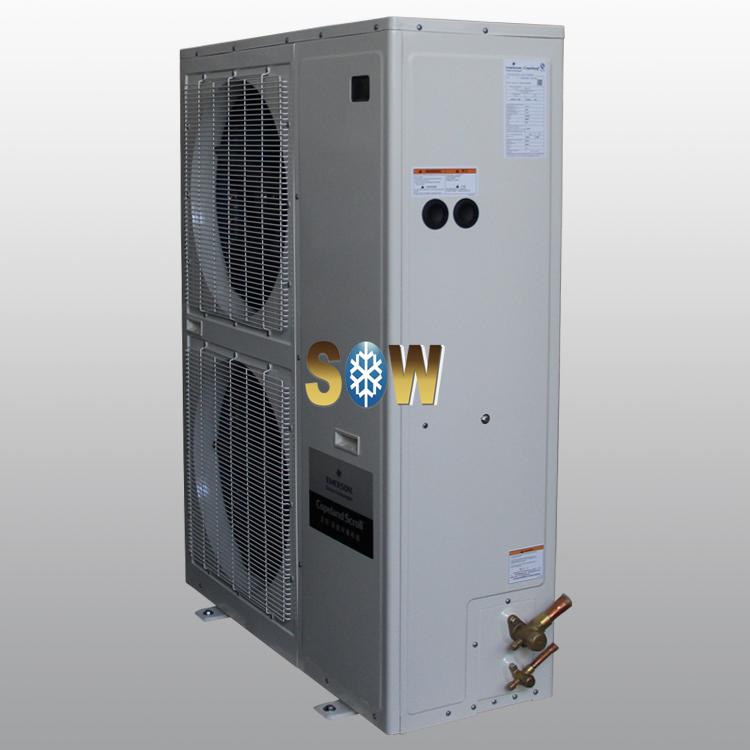

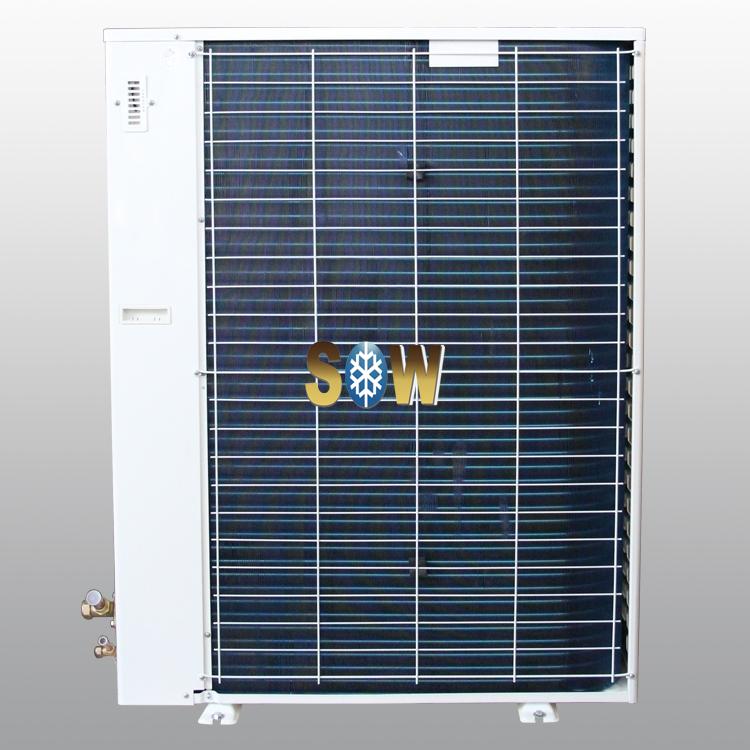

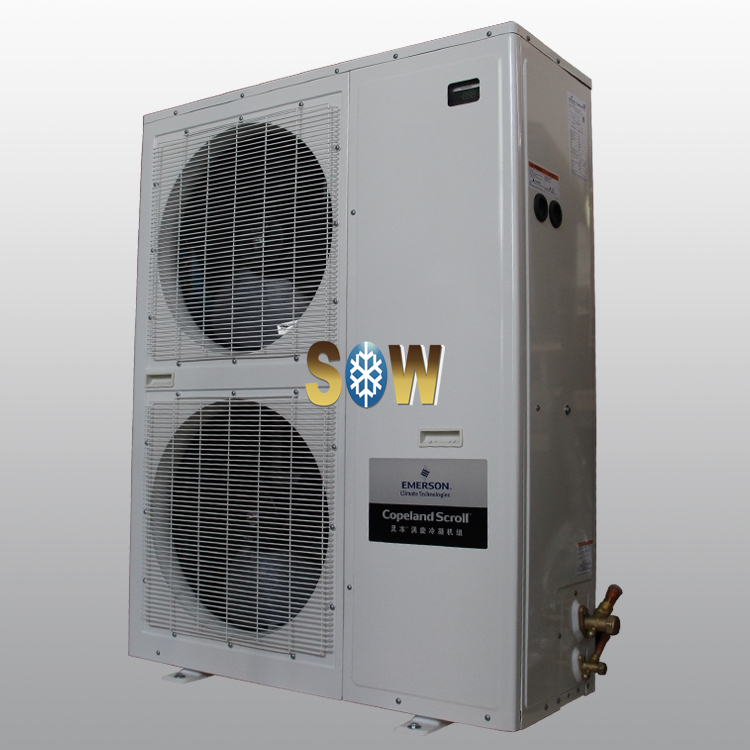

Copeland Scroll condensing Unit ZXD090BE-TFD-551

Emerson 9HP Digital Scroll Medium-Temperature Condensing Unit

Product Introduction

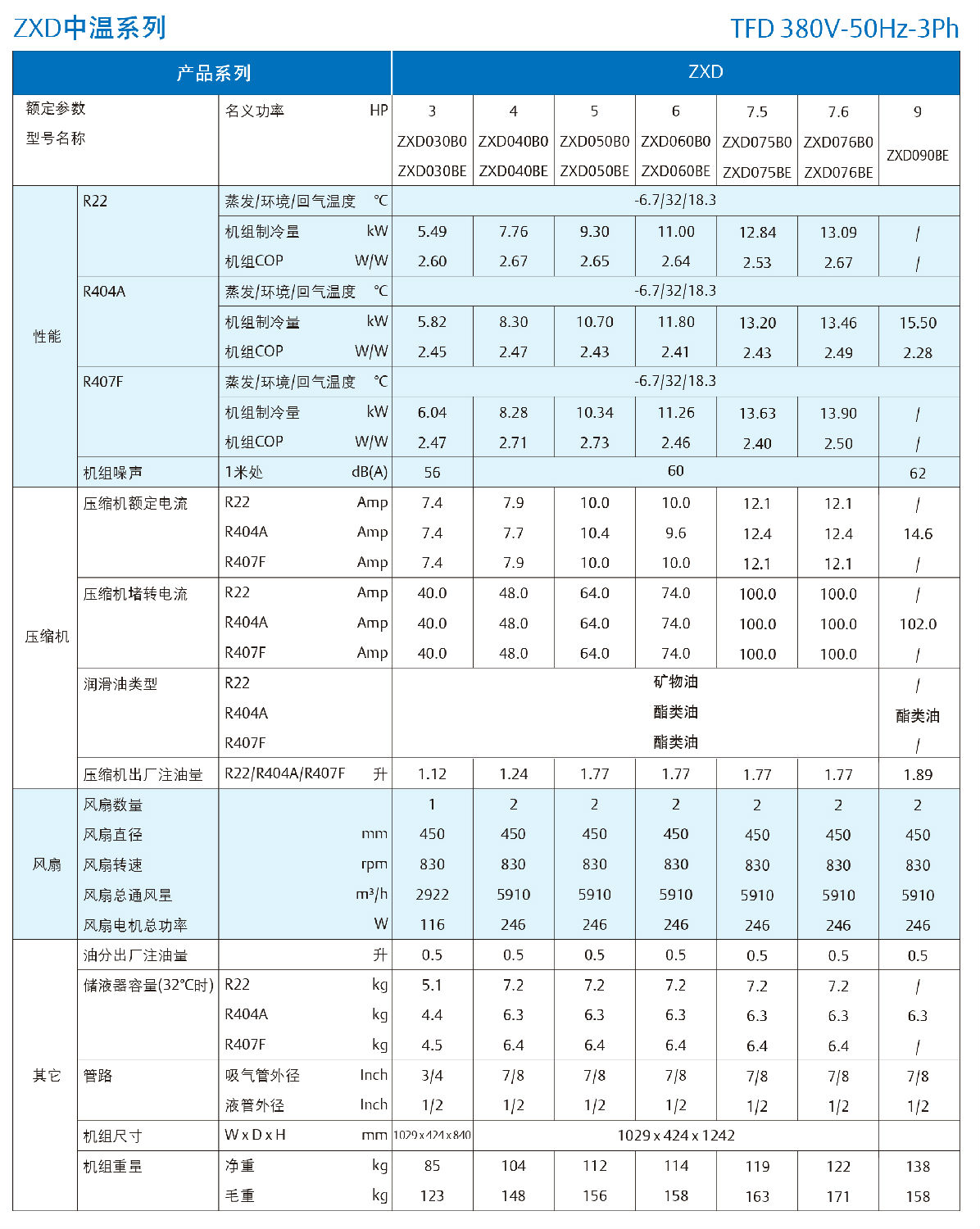

Emerson Climate Technologies has tailored the Lingdong Series scroll condensing units specifically for refrigeration applications, offering 2-9HP medium-temperature, digital medium-temperature, and low-temperature condensing units, as well as 12-20HP digital medium-temperature and digital low-temperature condensing units.

Energy Efficiency & High Performance

Significantly reduced power consumption is achieved through the use of Copeland Scroll™ compressor technology, variable-speed fan motors, large-capacity condensing coils, and enhanced control logic. Compared to hermetically sealed piston units, end users can achieve over 20% annual energy savings.

Reliability

Combining the proven reliability of Copeland Scroll™ compressors with the enhanced CoreSense™ controller, unit reliability is substantially improved. Fault code alerts and reset functionality provide information that accelerates and improves system diagnostics. The CoreSense™ controller offers protections against overcurrent, high discharge temperature, incorrect rotation, compressor frequent starts, high-pressure shutdown, and low-pressure shutdown. In the event of liquid slugging, the integrated electronic module can also send an alarm to the operator to prevent major damage to the unit.
