Name:	Danfoss Pressure switch, KPS31 060-410066
Brand:	Danfoss
Model No.:	KPS31
Part No.:	060-410066
Country of origion:	Poland
G.W:	1.088kgs/pc
Regulation range [bar] Pe:	0 - 2.5
Differential [bar]:	0.1
Reset function:	Auto
Pressure connection type:	G
Pressure connection size:	1/4
Enclosure rating IP:	IP67
Max. Working Pressure [bar]:	6

Product Description

Danfoss Pressure switch, KPS31 060-410066

060-310966
060-311066
060-410066
060-411066
060-310366
060-310466
060-311366
060-311766
060-410166
060-410866
060-311866
060-310066
060-310566
060-310866
060-318866
060-410266
060-410366
060-411166
060-411766
060-411866
060-310166
060-310666
060-410966
060-310266
060-310766
060-319266
060-410466
060-410766
060-419266
060-312066
060-410566
060-312166
060-312266
060-313766
060-314166
060-314266
060-410666
060-411666

Product details

Gross weight	1.088 Kilogram
Net weight	1.039 Kilogram
Volume	1.874 Liter
EAN	5702423142774

Type	KPS31
Product group	Switches and thermostats
Product Name Description	Pressure switch

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UL
CE evaluated	Yes
China RoHS compliance	Yes
Contact function	SPDT gold
Contact rating	AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR max. 50 A for gold 1…30 mA, 5...30 V
Contains batteries	No
Differential [bar]	0.1 bar
Differential [psi]	1.5 psi
Electrical conn. comments	Metal cable gland
Electrical conn. Male/Female	Female
Electrical connection	Screwed cable entry
Electrical connection size	Pg 13.5
Electrical connection standard	DIN 40430
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP67
EU RoHS compliance	Out of scope
Identical product	060-311066
Max. test pressure [bar] Pe	6 bar
Max. test pressure [psig]	87 psig

Max. Working Pressure [bar]	6 bar
Max. Working Pressure [psig]	87 psig

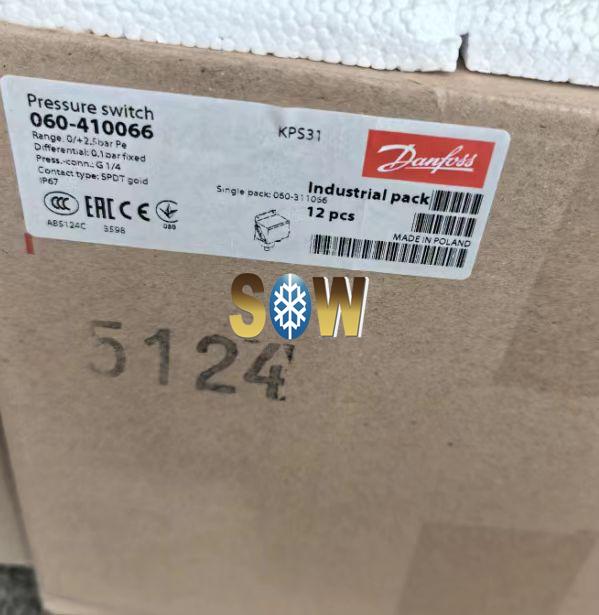

Packing format	Industrial pack
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Pressure Switch
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]	2.5 bar
Regulation range [bar] Pe [min]	0 bar
Regulation range [MPa] Pe [max]	0.25 MPa
Regulation range [MPa] Pe [min]	0 MPa
Regulation range [psig] Pe [max]	36 psig
Regulation range [psig] Pe [min]	0 psig
Reset function	Auto
SCIP dossier no.	d1127e97-408e-40d0-9aba-98480f7dad9c
SCIP dossier product name	KPS Pressure Switch
Serviceable	No
UL approval file name	E73170
UL evaluated	Yes
