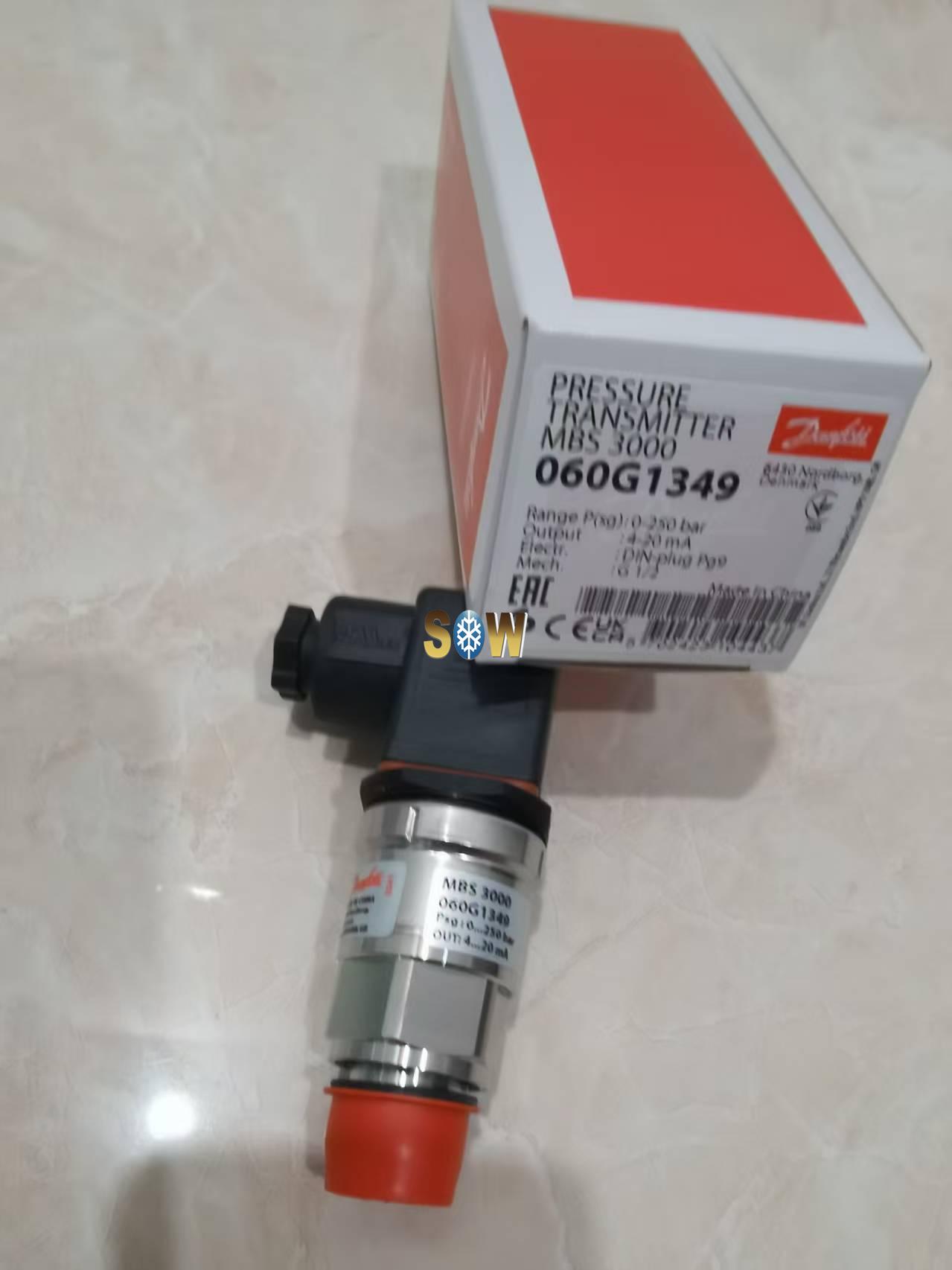

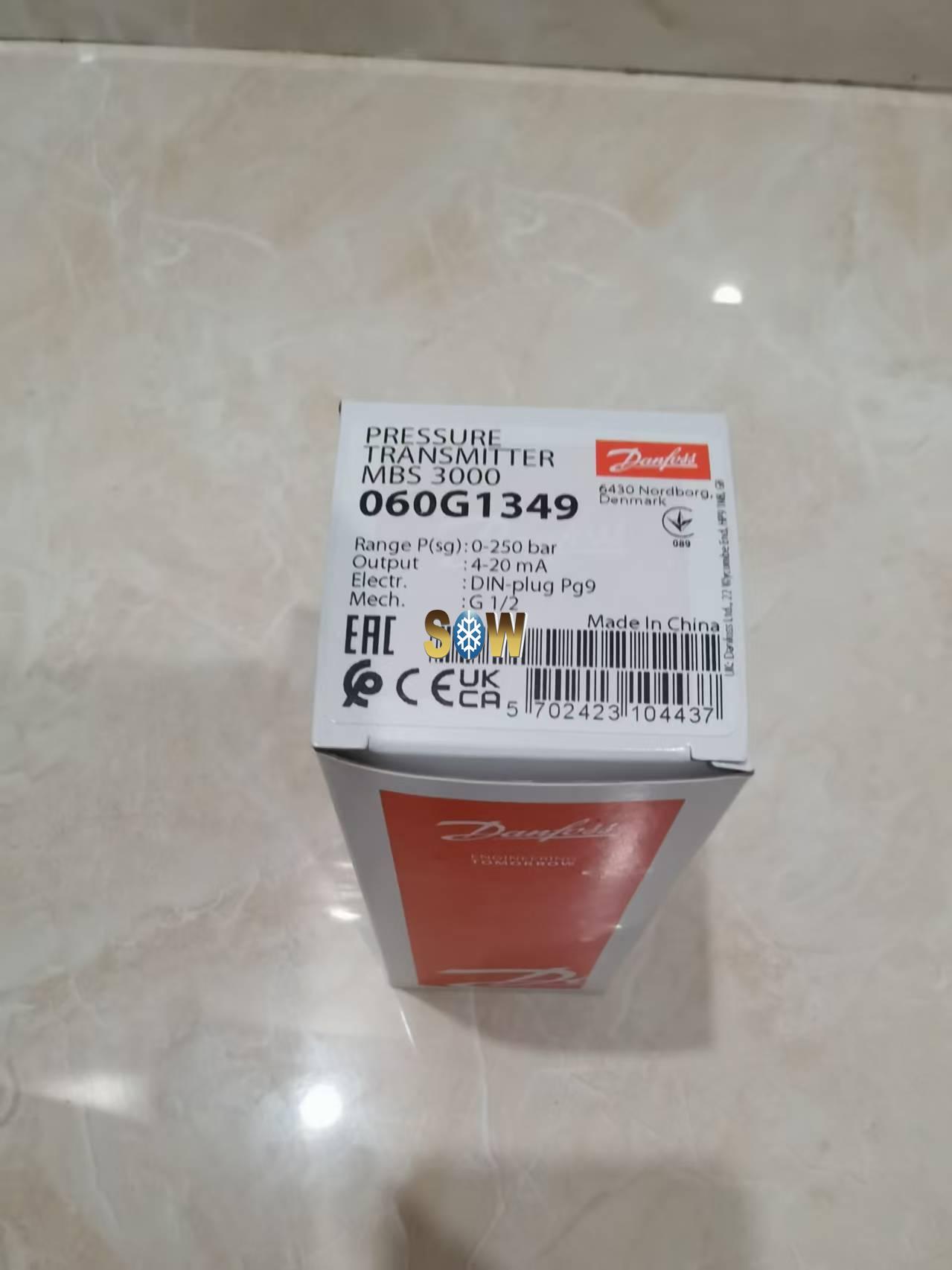

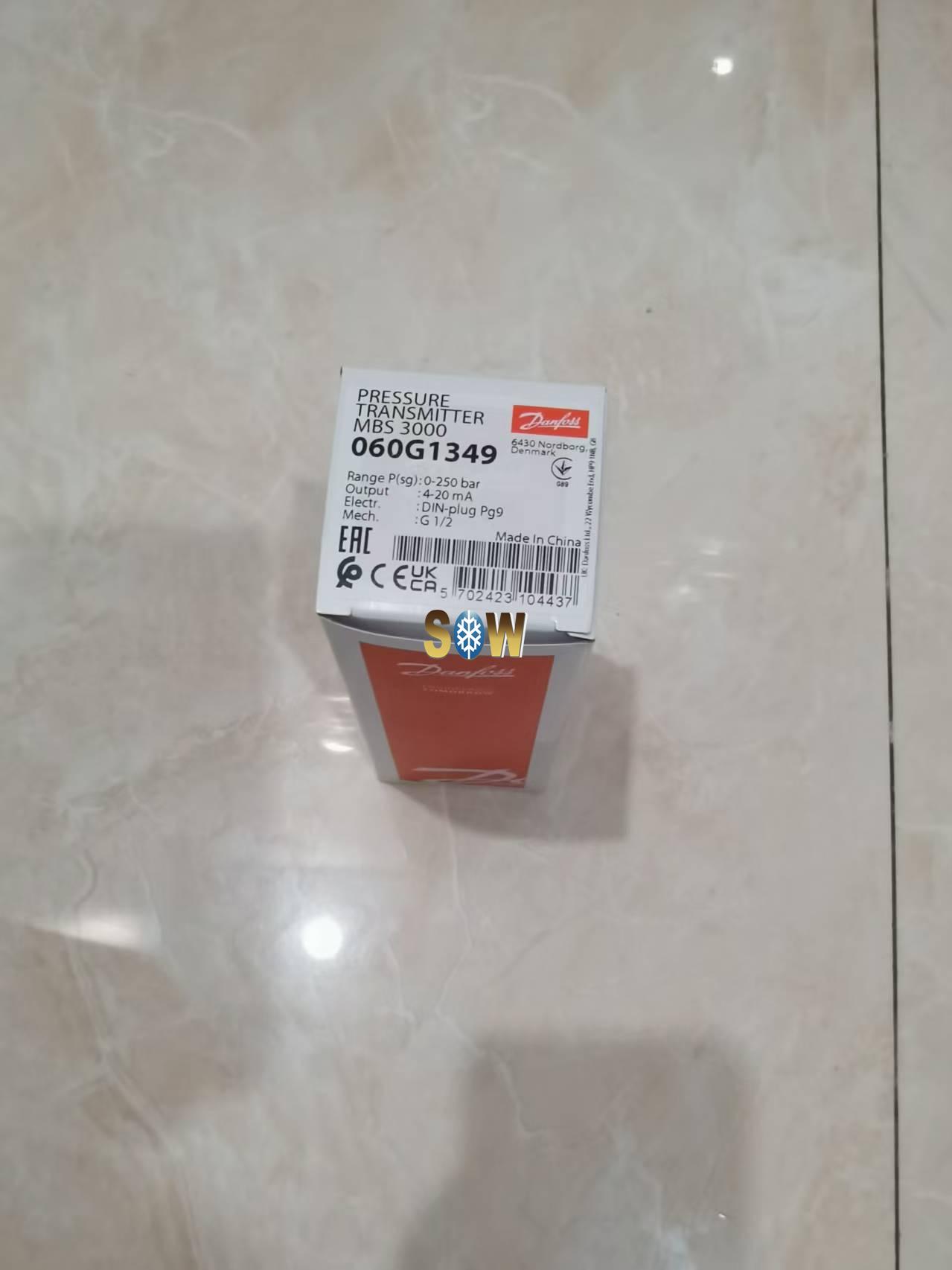

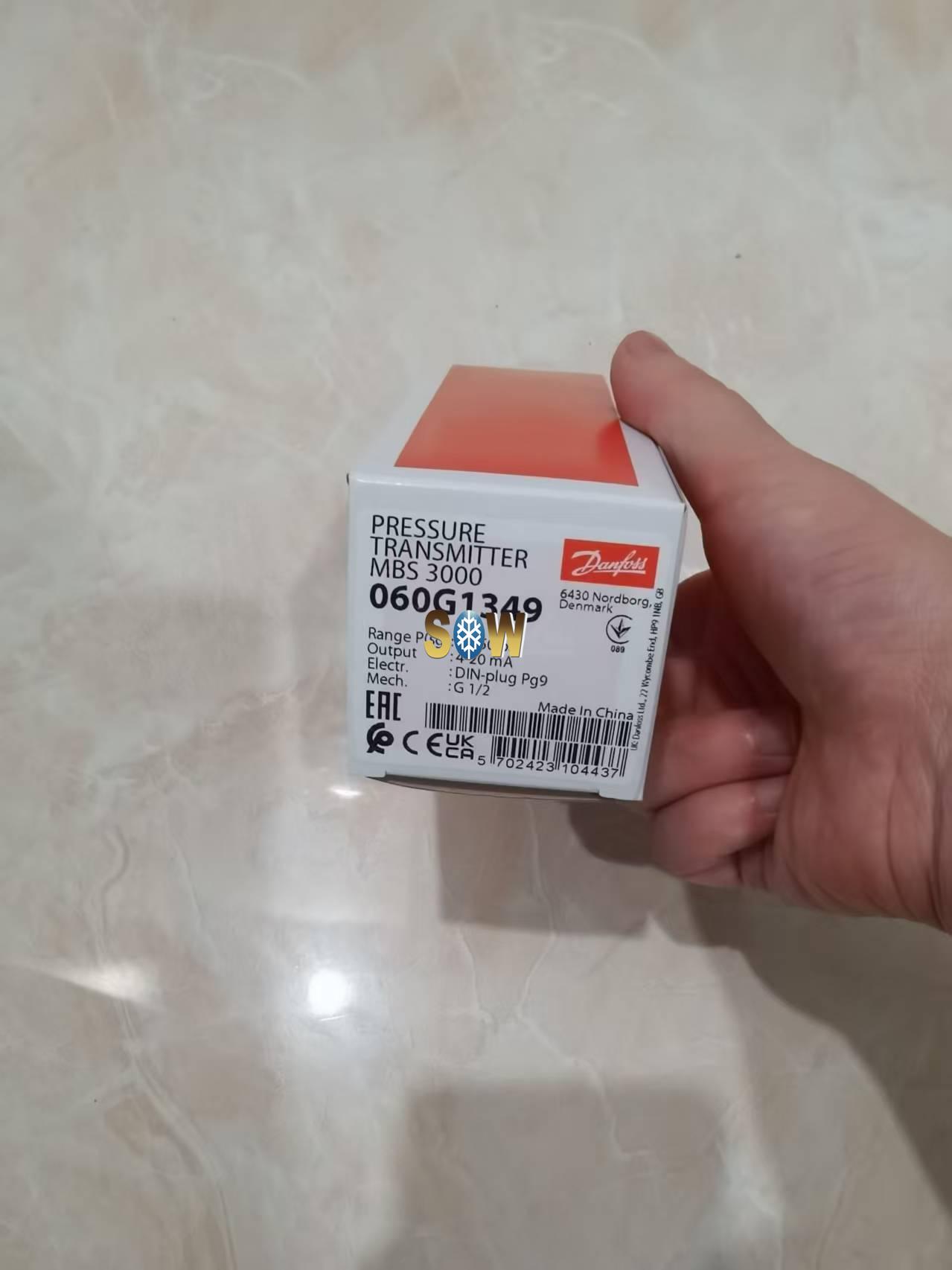

Name:	Danfoss Pressure transmitter, MBS 3000,060G1349
Brand:	Danfoss
Model No.:	MBS 3000
Part No.:	060G1349
Country of origion:	China
G.W:	0.212kgs/pc
Pressure range [bar]:	0 bar - 250 bar
Pressure reference:	Sealed gauge
Output signal:	Current
Electrical connection:	Angular connector
Pressure connection type:	G
Pressure connection size:	1/2
Specification key:	MBS 3000-3431-A1GB08-2

Danfoss Pressure transmitter, MBS 3000,060G1349

Product details

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	1 %
Accuracy, typical [±FS%]	0.5 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval comments	ATEX Ex ec IIA T4 Gc
Autofrettage Pressure	1600 bar
CE evaluated	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	80 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	176 °F
Compensated temp. range [°F] [min]	32 °F
Contain batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	No
High Clipping Level	22.4
Identical product	060G4118
In scope of WEEE	Yes
International Article Number	5702423104437
Intrinsically safe	No

Low Clipping level	3.6
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.5 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	1500 bar
Overload pressure max. [psi]	21756 psi
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/2
Pressure connection standard	DIN 3852-E ISO 1179-2 (Form E)
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [max]	250 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	3625 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Sealed gauge
Pulse-snubber	No
Quantity per packing format	14 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 3000-3431-A1GB08-2
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
UL evaluated	Yes
