Danfoss Program. controller, 6 relays, MCX06D 080G0112-Product Center-Star-Worths Refrigeration Co.,Ltd.-

Name:	Danfoss Program. controller, 6 relays, MCX06D 080G0112
Brand:	Danfoss
Model No.:	MCX06D
Part No.:	080G0112
Country of origion:	Romania
G.W:	0.35kgs/pc
Function:	Programmable controller
Supply voltage [V] AC:	24
Communication type:	CANBUS; RS485; MODBUS
Packing format:	Multi pack
Quantity per packing format:	16

Danfoss Program. controller, 6 relays, MCX06D 080G0112

Product details

1 Primary battery SUM weight Kg	0.001
1 Primary battery weight Kg	0.001
Analog inputs (AI) [pc]	4 pc
Analog outputs (AO) [pc]	3 pc
Approval	CE CMIM EAC GOST R UL
Battery qty	1
Battery type or Name	Lithium coin cell (CR1620)
Buzzer	Yes
CE evaluated	Yes
China RoHS compliance	Yes
Communication type	CANBUS MODBUS RS485

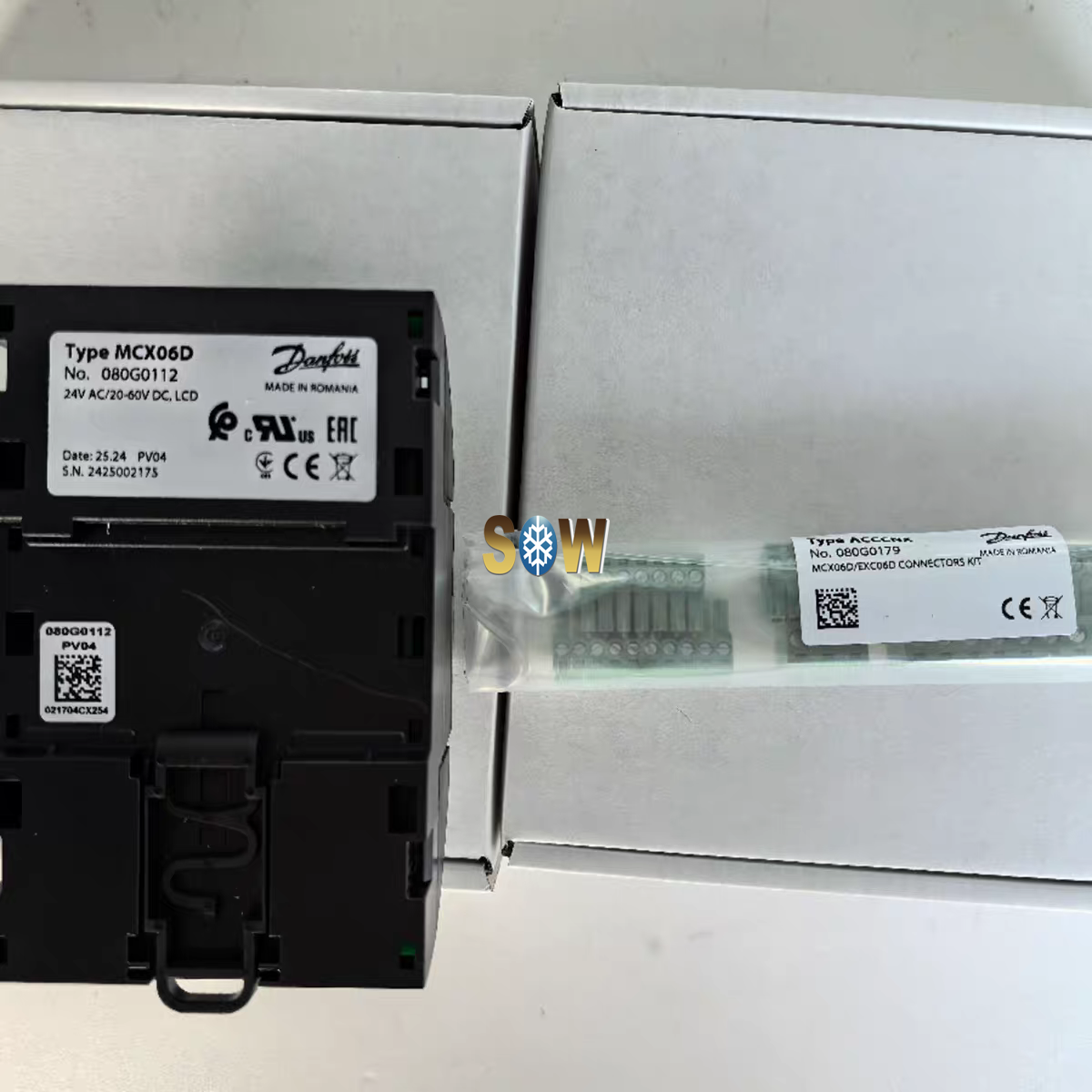

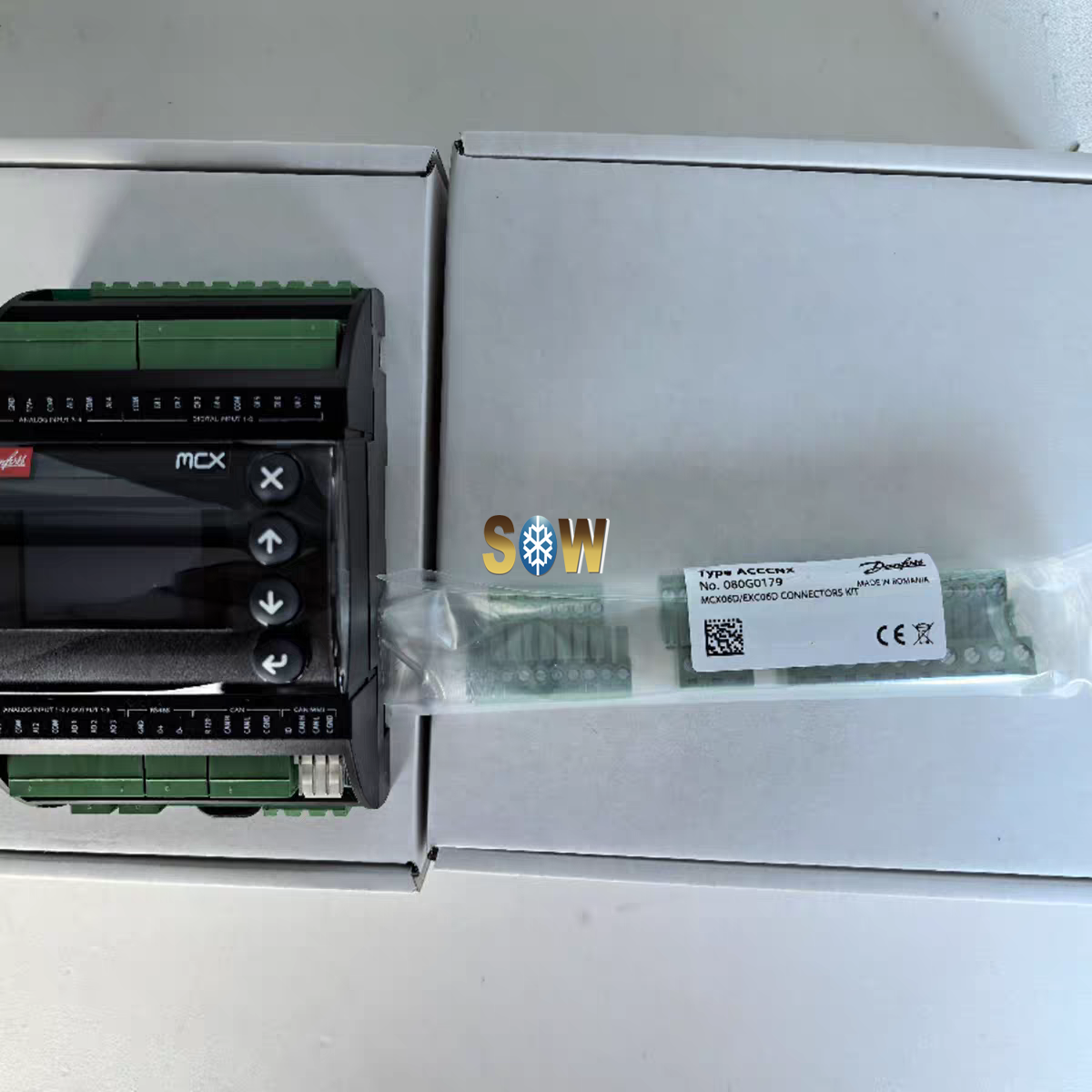

Connector kit Code No.	080G0179
Connector kit included	Yes
Contain batteries	Yes
Digital inputs (DI) [pc]	8 pc
Digital outputs (DO) [pc]	6 pc
Display type	LCD
Division	25
EEE category	5 small equipment (any external dimension < 50 cm)
Enclosure rating IP	IP40

EU RoHS compliance	Yes
EU RoHS exemption clause	No
Frequency [Hz]	50/60 Hz
Function	Programmable controller
Identical product	080G0167
In scope of WEEE	Yes
Mounting method	DIN rail
Packing format	Multi pack
PFAS content [Yes/No]	No
Power consumption [W]	6 W
Product accessories	Electron. control accessories
Quantity per packing format	16 pc
REACH Candidate List substances	No
Real time clock	Yes
Serviceable	No
Supply voltage [V] AC	24 V
Supply voltage [V] DC	24 V
Type designation	MCX06D
UL evaluated	Yes
