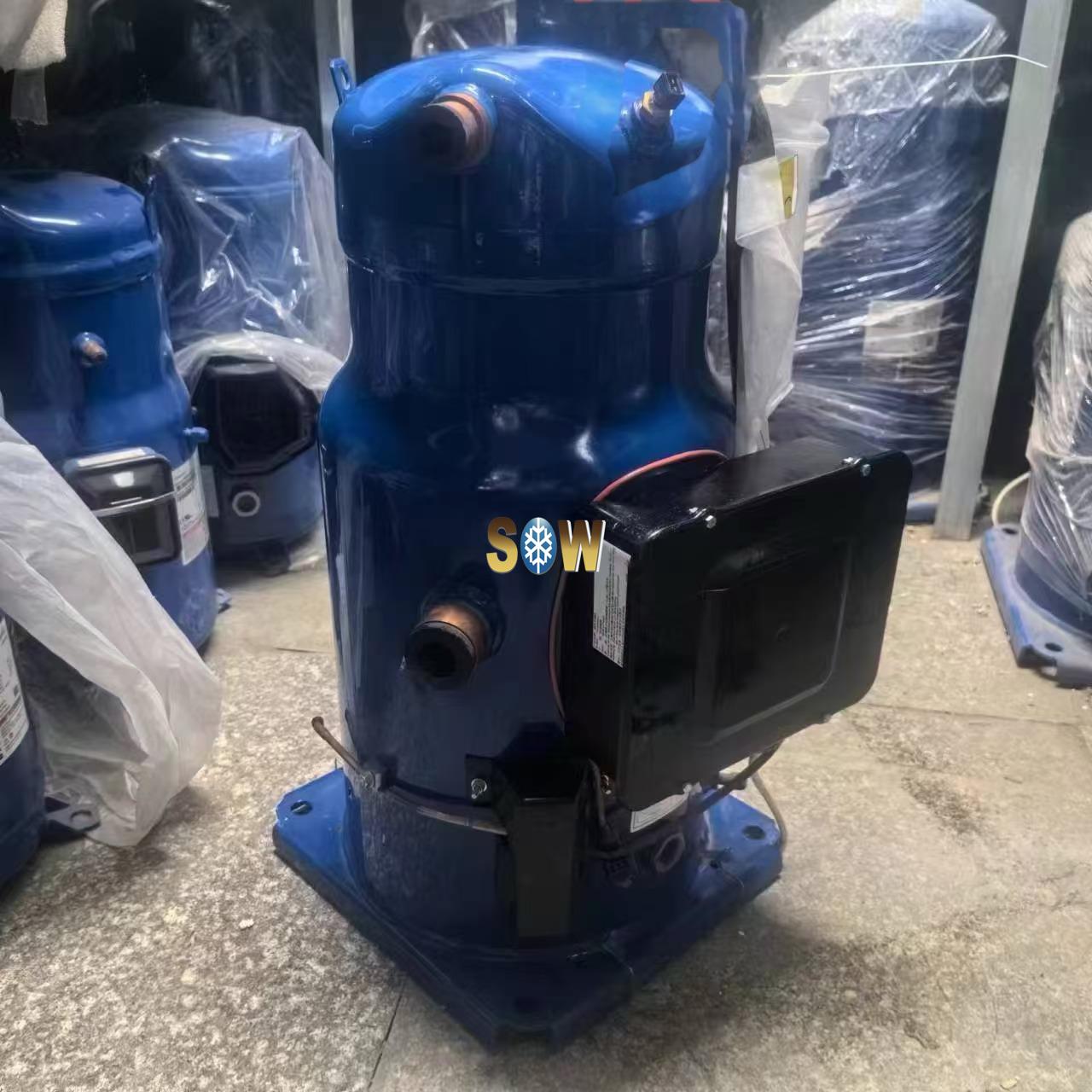

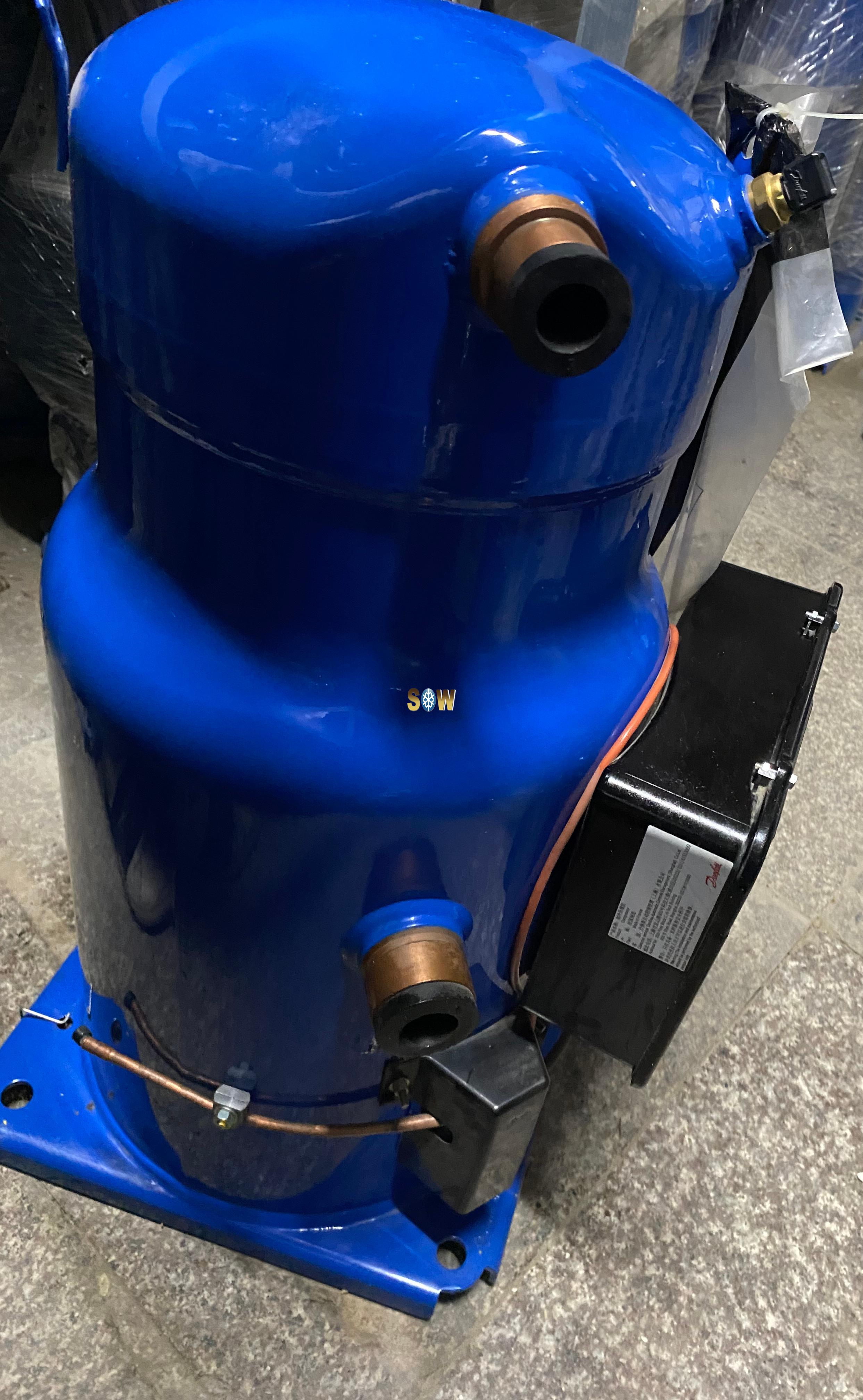

Danfoss Scroll Compressor PSH051A4AKA for Heat Pump

Key information:

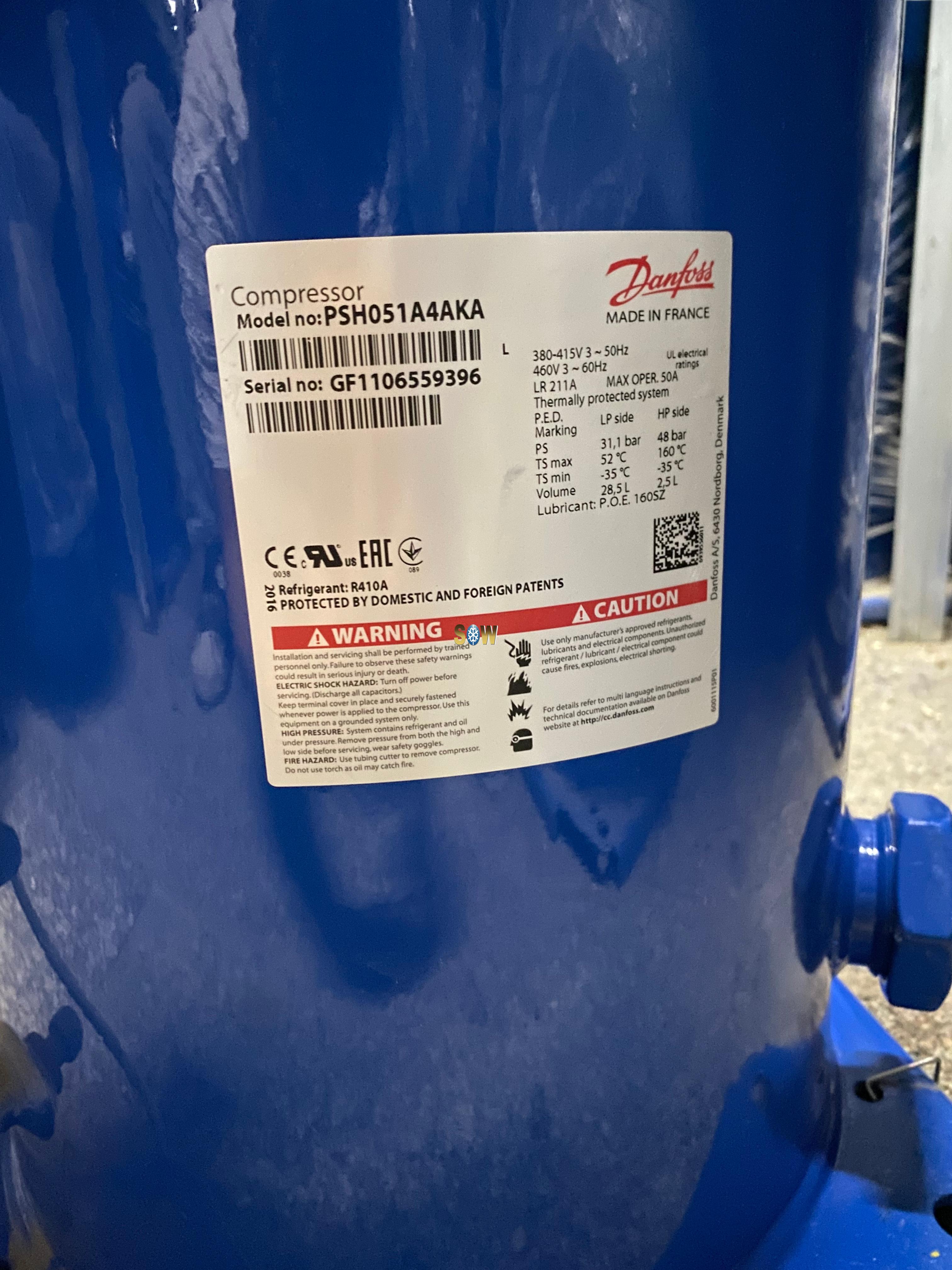

Model:  PSH051A4AKA
Type:  Scroll compressor
Capacity control:  Fixed speed
Nominal cooling capacity:  182.58 kBtu/h
Nominal cooling capacity at 60Hz:  53.5 kW
Refrigerant:  R410A
Refrigerant charge (Max):  7.9 kg
Oil type:  POE
Oil charge:  3.6 L
Compressor power supply:  400/3/50 460/3/60   V/Ph/Hz
Phase:  3
Frequency (Hz):  50/60
Rotational speed at 50Hz:  2900 rpm
Rotational speed at 60Hz:  3500 rpm
IP protection class:  IP54
Connection type:  Brazed
Suction connection pipe size:  1 3/8 in
Discharge connection pipe size:  7/8 in

Nomenclature:


Technical Specifications:

Dimensions:
