Name:	Danfoss Scroll compressor, HLM072T4LC6
Brand:	Danfoss
Model No.:	HLM
Part No.:	HLM072T4LC6
Country of origion:	China
G.W:	41.208kgs/pc
Refrigerant:	R22
Segment usage:	Air conditioning
Compressor power supply[V]:	380-415/3/50 460/3/60
Packing format:	Industrial pack

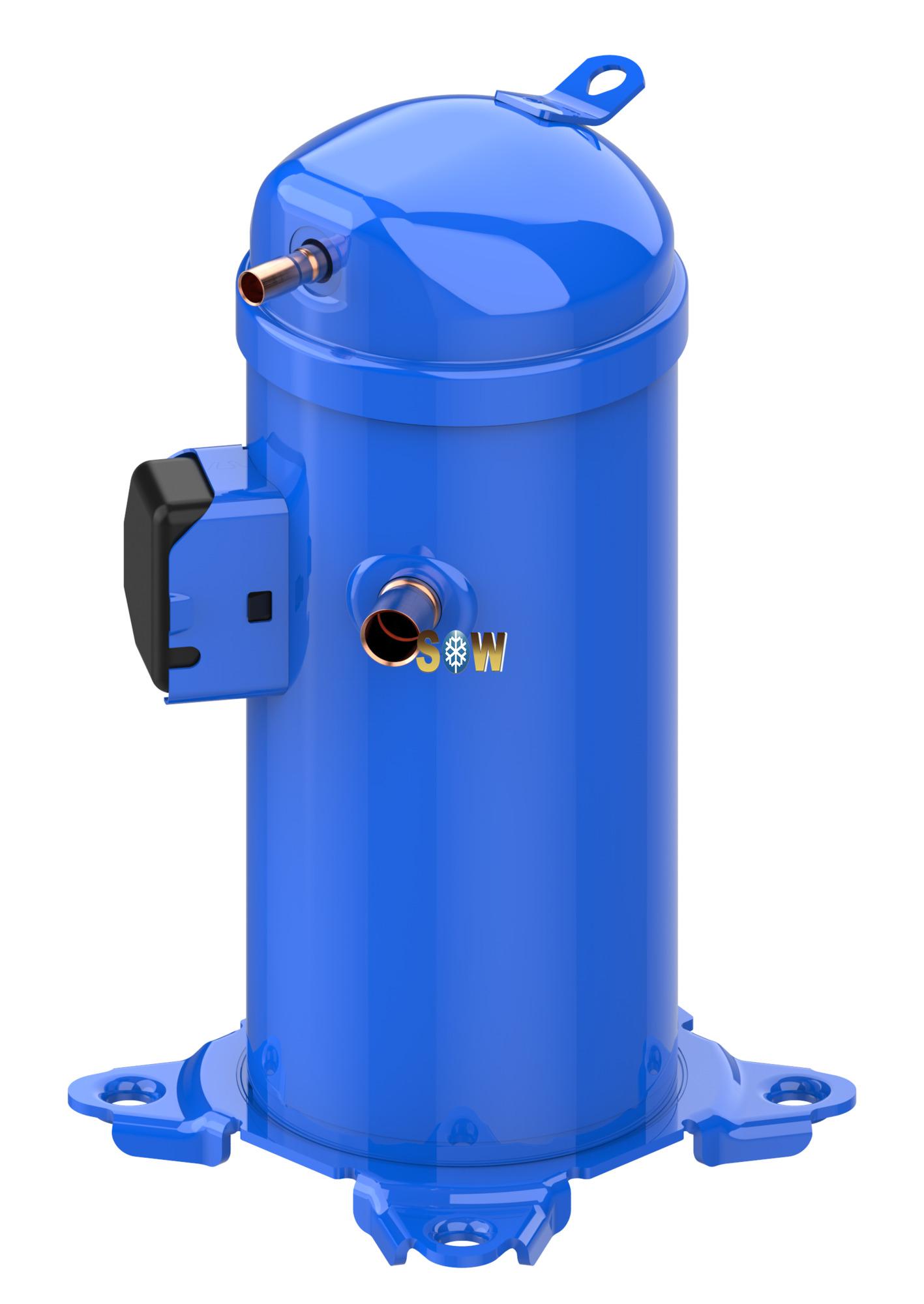

Danfoss Scroll compressor, HLM072T4LC6

Product details

Gross weight	41.208 Kilogram
Net weight	37 Kilogram

Volume	0.06 Cubic meter
EAN	5702428405911

Brand technique	Scroll compressor
Capacity control	Fixed speed
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
Colour	Blue
Compressor power supply [V]	380-415/3/50 460/3/60
Configuration code	Single
Connection type	Brazed
Contain batteries	No
Description	HLM072T4
Diameter [mm]	184 mm
Discharge connection height [mm]	422 mm
Discharge connection pipe size [in]	1/2 in
Discharge connection size [in]	1/2 in
Drawing number	0XR6089B-1
Economizer	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	7(c)-I 6(a) 6(a)-I 6(c) 7(a) 8(b)
Family	HLM
Fitting standard	ODF
Frequency [Hz]	50/60
Gauge port HP	None
Gauge port LP	None
Gaz equalization	None
Glass mounting	None
High value of nominal voltage at 50Hz [V]	415 V
High value of nominal voltage at 60Hz [V]	460 V
High value of voltage range at 50Hz [V]	457 V
High value of voltage range at 60Hz [V]	506 V
In scope of WEEE	No
IP protection class	IP22
Length [mm]	239 mm
Low value of nominal voltage at 50Hz [V]	380 V
Low value of nominal voltage at 60Hz [V]	460 V
Low value of voltage range at 50Hz [V]	342 V
Low value of voltage range at 60Hz [V]	414 V
LRA	82 A
Max pressure (PS) - high side	31.1 bar
Max pressure (PS) - low side	26.2 bar
MCC	15 A

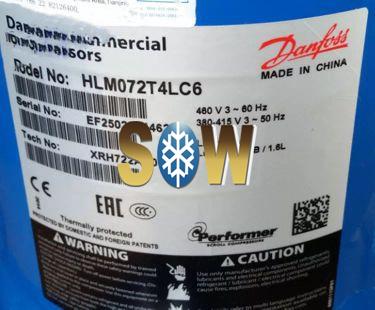

Model number	HLM072T4LC6
Motor protection	Internal overload protector
Network power supply [V/Ph/Hz]	380-415/3/50 460/3/60
Oil charge [L]	1.57 L
Oil equalization	None
Oil reference	160ABM
Oil type	Alkylbenzene
Packing format	Industrial pack
Packing quantity	12
Phase	3
Power connections	Screw connectors 10-32 UNF x 9.5
Product group	Hermetic compressors
Product Name Description	Scroll compressor HLM
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]	5.44 kg
Refrigerants	R22
RLA	9.6 A
Rotational speed at 50Hz [rpm]	2900 rpm
Rotational speed at 60Hz [rpm]	3500 rpm
SCIP dossier no.	22cfab5a-a26e-446d-9517-3ee5f4753699
Segment usage	Air conditioning
Shipped instructions	Installation instructions
Shipped mounting	Mounting kit with grommets and sleeves
Shipped oil	Initial oil charge
Suction connection height [mm]	280 mm
Suction connection material	-
Suction connection pipe size [in]	7/8 in
Suction connection size [in]	7/8 in
Swept volume [cm3]	98.57 cm³
Technology	Scroll
Torque earth [Nm]	2 N-m
Torque power [Nm]	3 N-m
Total height [mm]	455 mm
Type	HLM072
Viscosity [cP]	32 cP
Width [mm]	239 mm
Winding resistance 1-2 [Ohm]	1.85
Winding resistance 1-3 [Ohm]	1.83
Winding resistance 2-3 [Ohm]	1.87
