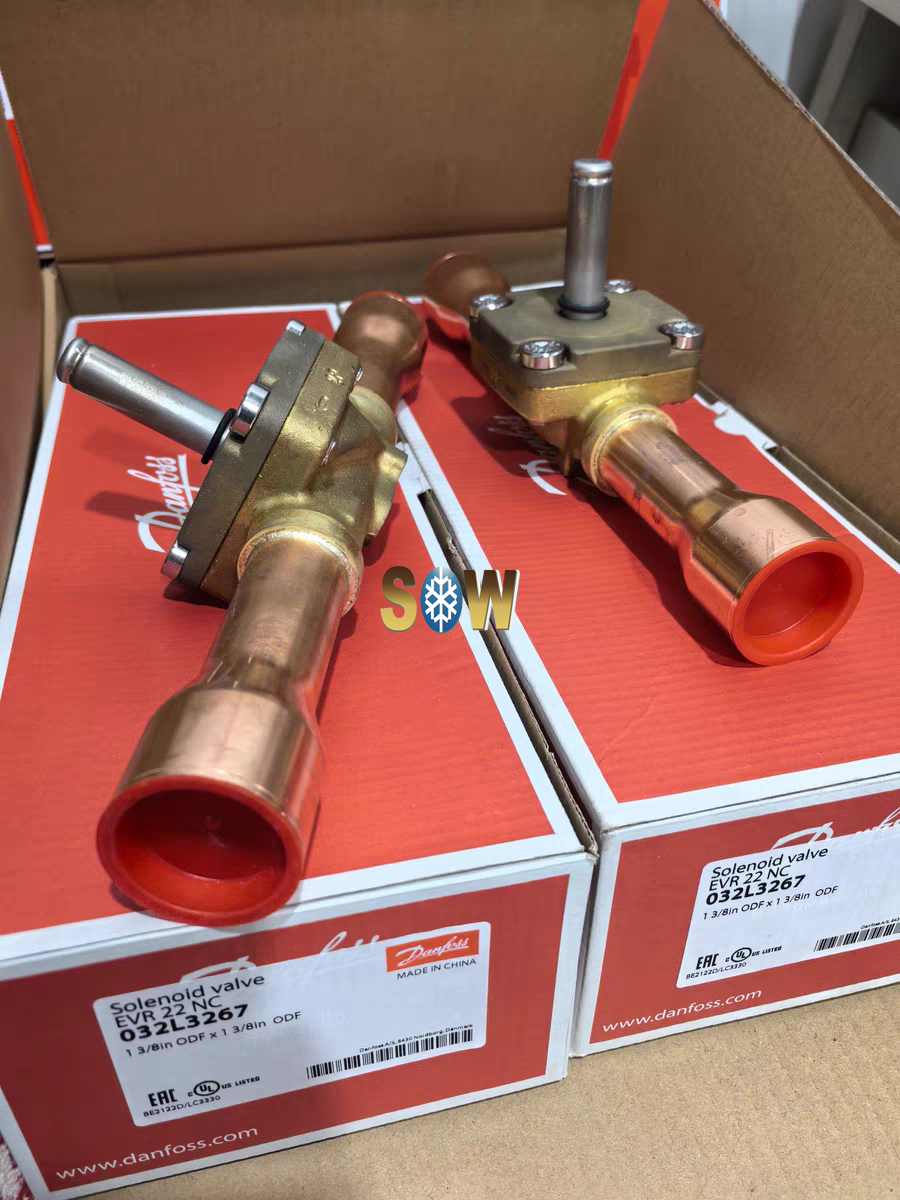

Name:	Danfoss Solenoid valve, EVR 22, Solder, ODF, 1 3/8 in, Function: NC 032L3267
Brand:	Danfoss
Model No.:	EVR22
Part No.:	032L3267
Country of origion:	China
G.W:	1.729kgs/pc
Function:	NC
Body material:	Brass
Kv value [m³/h]:	6.000
Packing format:	Multi pack

Danfoss Solenoid valve, EVR 22, Solder, ODF, 1 3/8 in, Function: NC 032L3267

Product details

Gross weight	1.729 Kilogram
Net weight	1.562 Kilogram

Volume	4.994 Liter
EAN	5702428952668

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Ambient temperature range [°F] [max]	175 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	EAC LLC CDC EURO-TYSK UL
Body material	Brass
China RoHS compliance	Yes exceed limitations
Coil	No
Cv value [gal/min]	6.9 gal/min
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Fluid Group	2
Function	NC
In scope of WEEE and contain batteries	No
Inlet connection type	Solder, ODF
Inlet size [in]	1 3/8 in
Kv value [m³/h]	6 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	45.2 bar
Max. Working Pressure [psig]	655 psig
MaxOPD[bar] 10W AC	38 bar
MaxOPD[bar] 20W DC	20 bar
MaxOPD[bar] coil BJ/BX	38 bar
MaxOPD[psi] 10W AC	550 psi
MaxOPD[psi] 20W DC	290 psi
MaxOPD[psi] coil BJ/BX	550 psi

Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0.03 bar
MinODP [psi]	0.44 psi
MOPD[bar/psi]	Coil Dependend
Orifice size [mm]	24 mm
Outlet connection type	Solder, ODF
Outlet size [in]	1 3/8 in
Packing format	Multi pack
Parts Program name	EVR
PED category	Art. 4, par. 3
Product accessories	Solenoid valve accessories
Product group	Solenoid valves
Product Name Description	Solenoid valve
Quantity per packing format	4 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234ze(E) R125 R134a R22 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R455A R463A R507A R512A R513A R513B R515A R515B
SCIP dossier no.	95debbe1-872f-4331-8148-b4a92f85f8c0
SCIP dossier product name	EVR 10-22
Serviceable	Solenoid valve spare parts
Type	EVR 22
Type designation	Solenoid valve, Solder
UK RoHS compliance	Out of scope
UL approved refrigerants	R125 R134a R22 R290 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R463A R507A R512A R513A R513B R515A R515B R600 R600a
UL evaluated	Yes
Valve operation	Servo-diaphragm
