Location:Index--->Product Center >> Danfoss Solenoid Valve&Coil >> 032F6220 Danfoss Solenoid valve, EVRA 20


|
|
||||||||||||||||||||||||||
Product Description

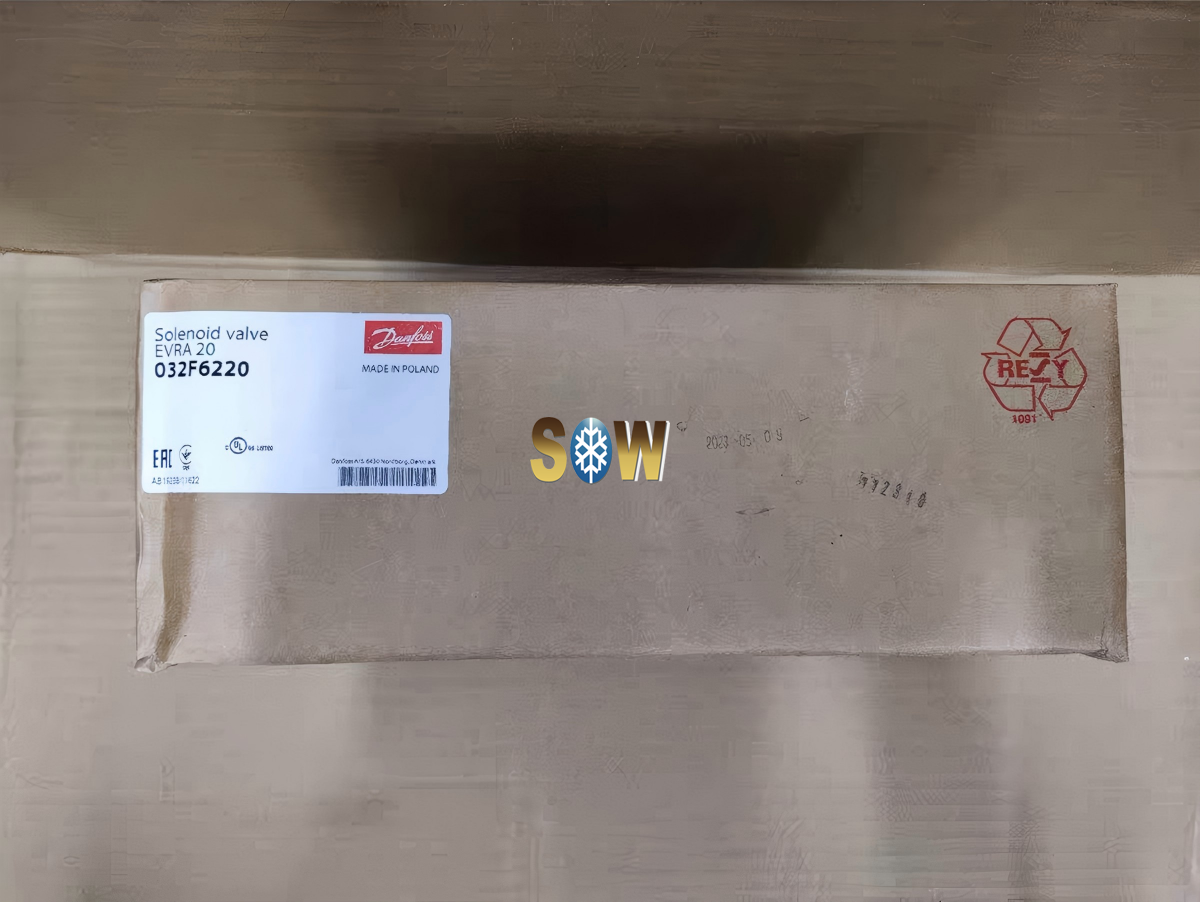

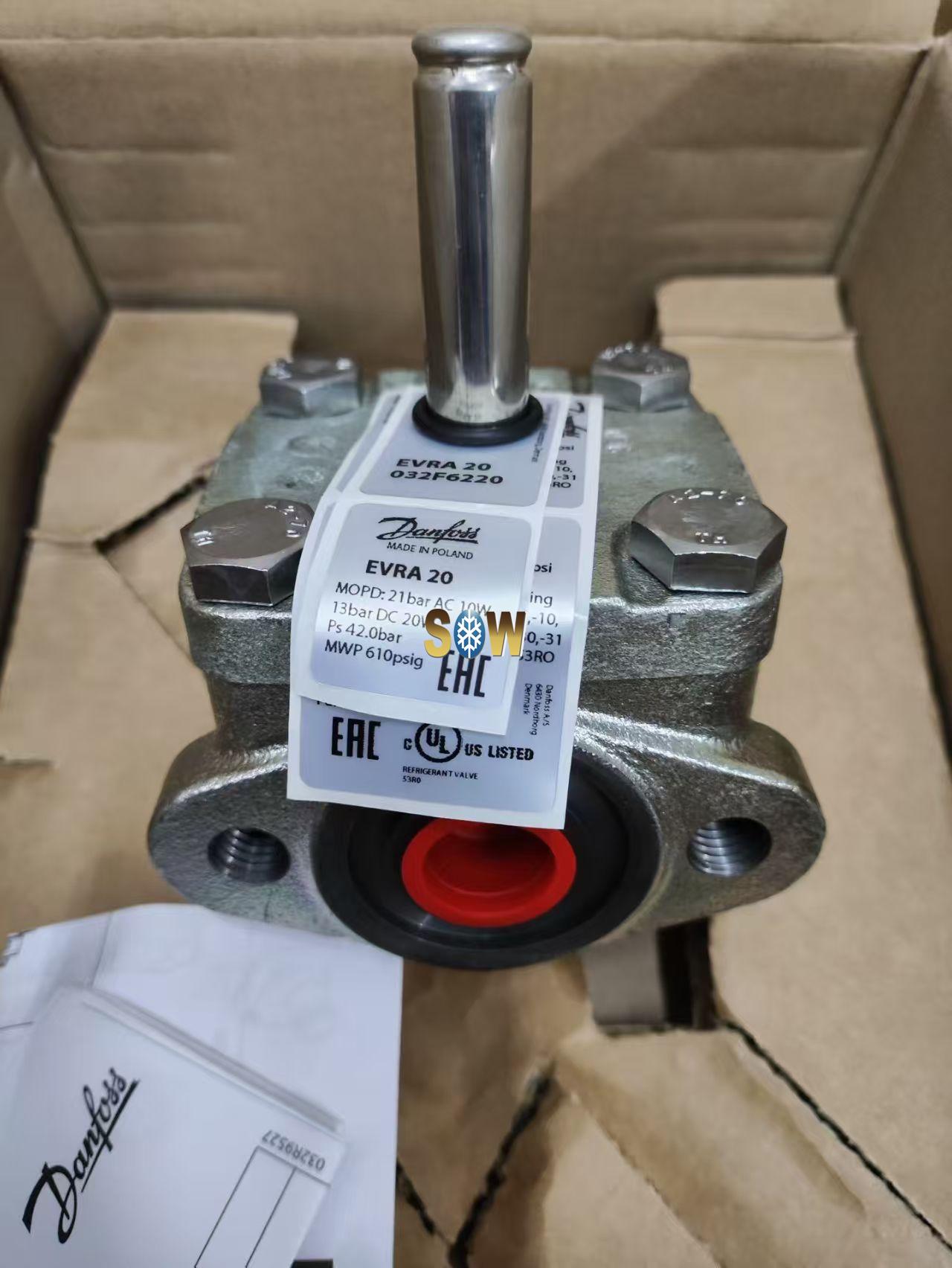

032F6220 Danfoss Solenoid valve, EVRA 20
Product details
| Gross weight | 2.68 kg |
| Net weight | 2.44 kg |
| EAN | 5702422178323 |
| Gross weight | 2.68 kg |
| Net weight | 2.44 kg |
| EAN | 5702422178323 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Body material | Cast iron |
| Coil | No |
| Cv value [gal/min] | 5.2 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection type | FLANGE |
| Kv value [m³/h] | 4.5 m3/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 13 bar |
| MaxOPD[psi] 14W AC | 300 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0.05 bar |
| MinODP [psi] | 0.72 psi |
| Orifice size [mm] | 20 mm |
| Outlet connection type | FLANGE |
| Packing format | Single pack |
| Parts Program name | EVRA / EVRAT |
| Product accessories | Flanges Solenoid valve accessories |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 |
| Serviceable | Solenoid valve spare parts |
| Type | EVRA 20 |
| Type designation | Solenoid valve |
| Valve operation | SERVO-DIAPHRAGM |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Body material | Cast iron |
| Coil | No |
| Cv value [gal/min] | 5.2 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection type | FLANGE |
| Kv value [m³/h] | 4.5 m3/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 13 bar |
| MaxOPD[psi] 14W AC | 300 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0.05 bar |
| MinODP [psi] | 0.72 psi |
| Orifice size [mm] | 20 mm |
| Outlet connection type | FLANGE |
| Packing format | Single pack |
| Parts Program name | EVRA / EVRAT |
| Product accessories | Flanges Solenoid valve accessories |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 |
| Serviceable | Solenoid valve spare parts |
| Type | EVRA 20 |
| Type designation | Solenoid valve |
| Valve operation | SERVO-DIAPHRAGM |
