Name:	Danfoss Electric expansion valve, ETS 50C 034G7702
Brand:	Danfoss
Model No.:	ETS 50C
Part No.:	034G7702
Country of origion:	Denmark
G.W:	0.417kgs/pc
Inlet connection type:	Solder ODF
Inlet size [mm]:	28.00
Outlet size [mm]:	28.00

Product Description

Danfoss Electric expansion valve, ETS 50C 034G7702

Product details

Gross weight	0.417 Kilogram
Net weight	0.32 Kilogram

Volume	1.687 Liter
EAN	5702428888028

Ambient temperature range [°C] [max]	70 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	158 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX CCC CE CMIM EAC LLC CDC TYSK UKCA UR
Balanced port [Yes/No]	Yes
Body material	Stainless steel
Brand	Colibri
China RoHS compliance	Out of scope
Compatible Danfoss controllers	EKE 1A EKE 1B EKE 1C MCX 061V MCX 152V
Connection material	Bi-metal: Steel/copper
Direction	Straightway
Electrical conn. Male/Female	Male
Electrical connection	M12
Electrical connection size	4 pin
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
EX Sales text	-40 / +70C II 3G Ex ec IIB T4 Gc
Flow direction	Bi-flow
Flow direction indicator	Laser engraved 2-way arrow
Fluid Group	1
Full travel time speed [s] [max]	6 s
Full travel time speed [s] [min]	3 s
In scope of WEEE and contain batteries	No
Inlet connection type	Solder ODF
Inlet size [in]	1 1/8 in
Inlet size [mm]	28 mm
Kv value [m³/h]	2.4 m³/h
Lubricants compatibility	MO POE
Manual operation option	AST-G service driver
Max allowed duty cycle [%]	100 %
Max tot PowerCons CurrDrive[W]	7.2 W
Max tot PowerCons VoltDrive[W]	7.2 W
Max. Working Pressure [bar]	50 bar
Max. Working Pressure [psig]	725 psig
MaxOPD [bar]	40 bar
MaxOPD [psi]	580 psi
MaxOPD reverse [bar]	40 bar
MaxOPD reverse [psi]	580 psi
Motor type	Bi-polar
Oil free refrigerants	R1234ze(E) R134a R513A R515A R515B R516A

Operating current max. [A]	0.8 A
Outlet connection type	Solder ODF
Outlet size [in]	1 1/8 in
Outlet size [mm]	28 mm

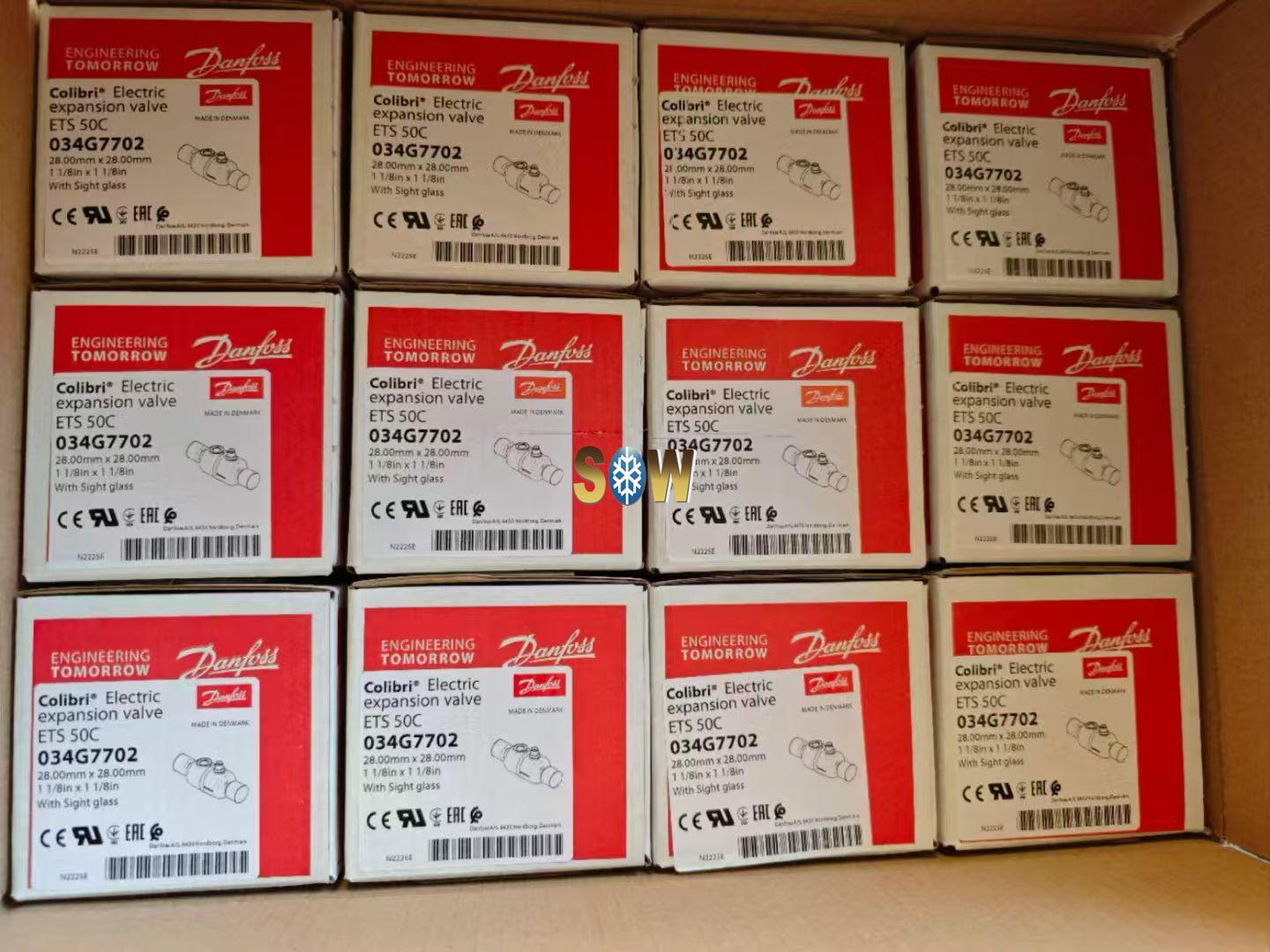

Packing format	Multi pack
PED category	Art. 4, par. 3
Phase current (peak) [mA]	800 mA
Phase current (RMS) [mA]	600 mA
Phase inductance [µH]	14000 μH
Product accessories	Stepper valve accessories
Product group	Expansion valves
Product Name Description	Electric expansion valve
Quantity per packing format	12 pc
Rated cap. cond. note	Full stroke open, normal flow
Rated cap. conditions [IMP]	tcond=90 °F tevap=40 °F tliq=82 °F
Rated cap. conditions [SI]	tcond=32 °C tevap=5 °C tliq=28 °C
Rated cap. R404A/R507A [kW]	200 kW
Rated cap. R404A/R507A [TR]	93.3 TR
Rated capacity R134a [kW]	210 kW
Rated capacity R134a [TR]	60.5 TR
Rated capacity R22 [kW]	267.7 kW
Rated capacity R22 [TR]	76.1 TR
Rated capacity R407C [kW]	294 kW
Rated capacity R407C [TR]	84.5 TR
Rated capacity R410A [kW]	323 kW
Rated capacity R410A [TR]	93.3 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9)
Refrigerant temperature [ºC] [max]	70 °C
Refrigerant temperature [ºC] [min]	-40 °C
Refrigerant temperature [ºF] [max]	158 °F
Refrigerant temperature [ºF] [min]	-40 °F
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22 R227ea R23 R245fa R290 R32 R404A R407A R407B R407C R407F R407H R410A R412A R413A R417A R422A R422B R422D R427A R438A R442A R444B R447A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R502 R507A R512A R513A R513B R515A R515B R516A R600 R600a
Resistance [kOhm]	0 kOhm
SCIP dossier no.	a7e2b719-80cd-47e9-b4fb-ab4f8fb9cd50
SCIP dossier product name	ETS 12C-100C with sight glass
Serviceable	No
Sightglass	Type SG (N indicator)
Step mode	2-phase full step Half step Microstep (recommended)
Total steps	600 (full steps)
Type	ETS 50C
UK RoHS compliance	Out of scope
UL approved refrigerants	R134a R227ea R23 R404A R407A R407C R407F R410A R417A R422A R422D R427A R438A R448A R449A R450A R452A R507A R513A
