Location:Index--->Product Center >> Danfoss Thermostatic Expansion Valves TG Series >> Danfoss Element for expansion valve, TE 12, R404A/R507A 067B3349


|
|
||||||||||||||||||||
Product Description

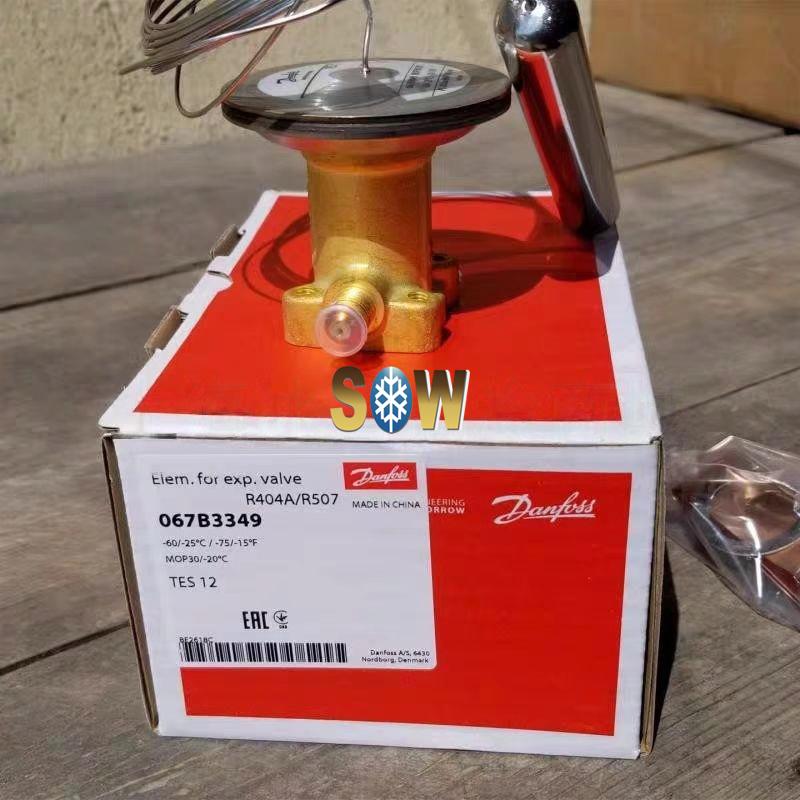

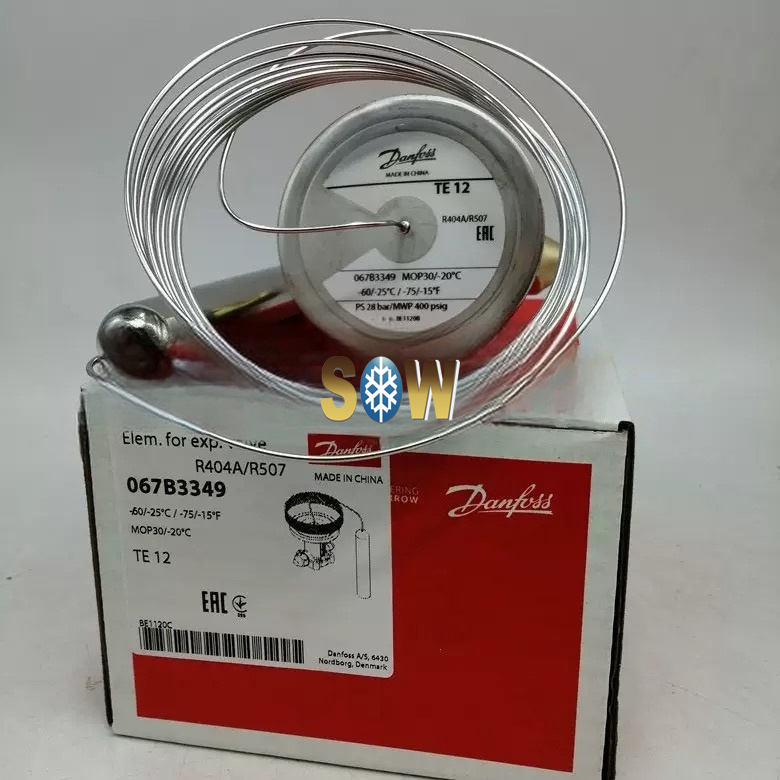

Danfoss Element for expansion valve, TE 12, R404A/R507A 067B3349
Product details
| Gross weight | 0.708 Kilogram |
| Net weight | 0.57 Kilogram |
| Volume | 2.155 Liter |
| EAN | 5702428148993 |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 118 in |
| Capillary tube length [mm] | 3000 mm |
| China RoHS compliance | Yes |
| Equalization connection type | Flare |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Out of scope |
| In scope of WEEE and contain batteries | No |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 400 psig |
| MOP Point [psig] | MOP 30 |
| MOP Point [°C] | -20 °C |
| MOP Point [°F] | -5 °F |
| Packing format | Multi pack |
| Parts Program name | TE 12 |
| Pressure equalization | Externally equalized |
| Product group | Expansion valves |
| Product Name Description | Element for expansion valve |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R404A/R507A |
| SCIP dossier no. | 7a4717a2-7803-4273-9d94-59ccfb927c1e |
| SCIP dossier product name | TE |
| Temperature range [°C] [max] | -25 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | -15 °F |
| Temperature range [°F] [min] | -75 °F |
| Type | TE 12 |
| Type designation | Element |
| UK RoHS compliance | Out of scope |
