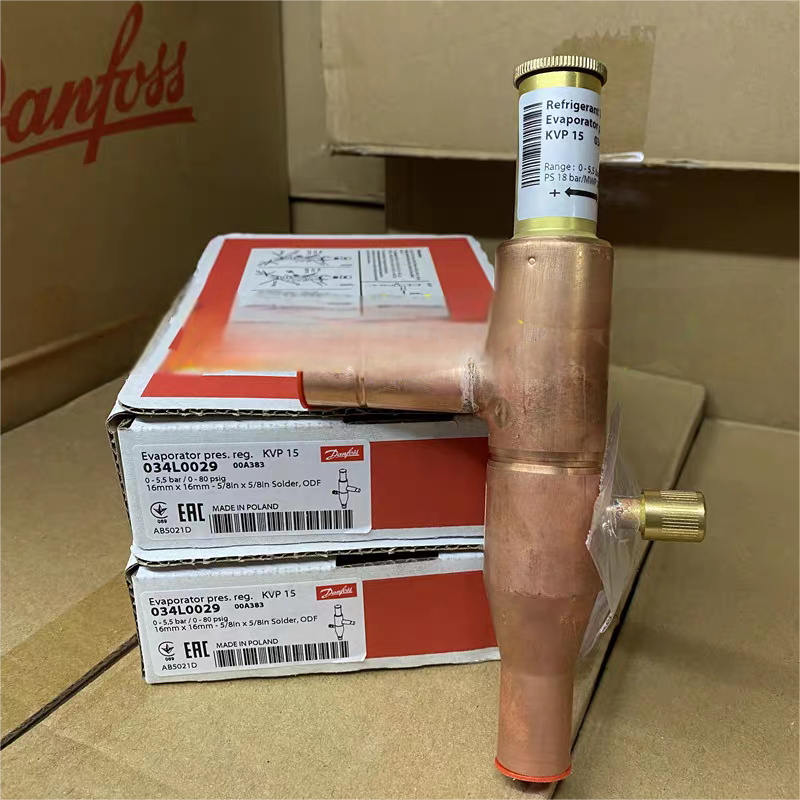

Name:	Danfoss Evaporator pressure regulator, KVP 15 034L0029
Brand:	Danfoss
Model No.:	KVP 15
Part No.:	034L0029
Country of origion:	Poland
G.W:	0.384kgs/pc
Max. Working Pressure [bar]:	18.0
Kv value [m³/h]:	2.500
Outlet connection type:	Solder, ODF
Inlet connection type:	Solder, ODF

Danfoss Evaporator pressure regulator, KVP 15 034L0029

Product details

Gross weight	0.384 Kilogram
Net weight	0.329 Kilogram

Volume	1.137 Liter
EAN	5702428411813

Approval	C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China
Approval file name	REFRIGERANT VALVE 53R0
China RoHS compliance	Yes
Cv value [gal/min]	2.9 gal/min
Equipment	Schrader valve access port
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Factory setting [bar]	2 bar
Factory setting [psig]	29 psig
Flow direction indicator	Engraved 1-way arrow
Identical product	034L0219
In scope of WEEE and contain batteries	No
Inlet connection type	Solder, ODF
Inlet size [in]	5/8 in
Inlet size [mm]	16 mm
Kv value [m³/h]	2.5 m³/h
Kv value note	AT MAX P-BAND
Lubricants compatibility	Oilfree applications
Max. test pressure [bar]	19.8 bar
Max. test pressure [psig]	286 psig
Max. Working Pressure [bar]	18 bar
Max. Working Pressure [psig]	260 psig
Medium temperature range [°C] [max]	130 °C
Medium temperature range [°C] [min]	-45 °C
Medium temperature range [°F] [max]	266 °F
Medium temperature range [°F] [min]	-49 °F
Oil free refrigerants	R1234ze(E) R513A
Other RoHS documentation	EAEU RoHS
Outlet connection type	Solder, ODF

Outlet size [in]	5/8 in
Outlet size [mm]	16 mm
P band max. [bar]	1.7 bar
P band max. [psi]	24.6 psi
Packing format	Multi pack
Product accessories	No
Product group	Press. and temp. regul. valves
Product Name Description	Evaporator pressure regulator
Quantity per packing format	12 pc
Rated cap. R404A/R507A [kW]	3.6 kW
Rated cap. R404A/R507A [TR]	1.2 TR
Rated capacity R134a [kW]	2.8 kW
Rated capacity R134a [TR]	0.9 TR
Rated capacity R22 [kW]	4 kW
Rated capacity R22 [TR]	1.3 TR
Rated capacity R407C [kW]	3.7 kW
Rated capacity R407C [TR]	1.2 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1234ze(E) R1270 R134a R22 R290 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A R600 R600a
Regulation range [bar] [max]	5.5 bar
Regulation range [bar] [min]	0 bar
Regulation range [psig] Pe [max]	80 psig
Regulation range [psig] Pe [min]	0 psig
SCIP dossier no.	842c526f-b213-4baa-869c-a91bb999a318
Serviceable	KV valves spare parts
Type	KVP 15
UK RoHS compliance	Out of scope
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A R515B R516A
