Product Description

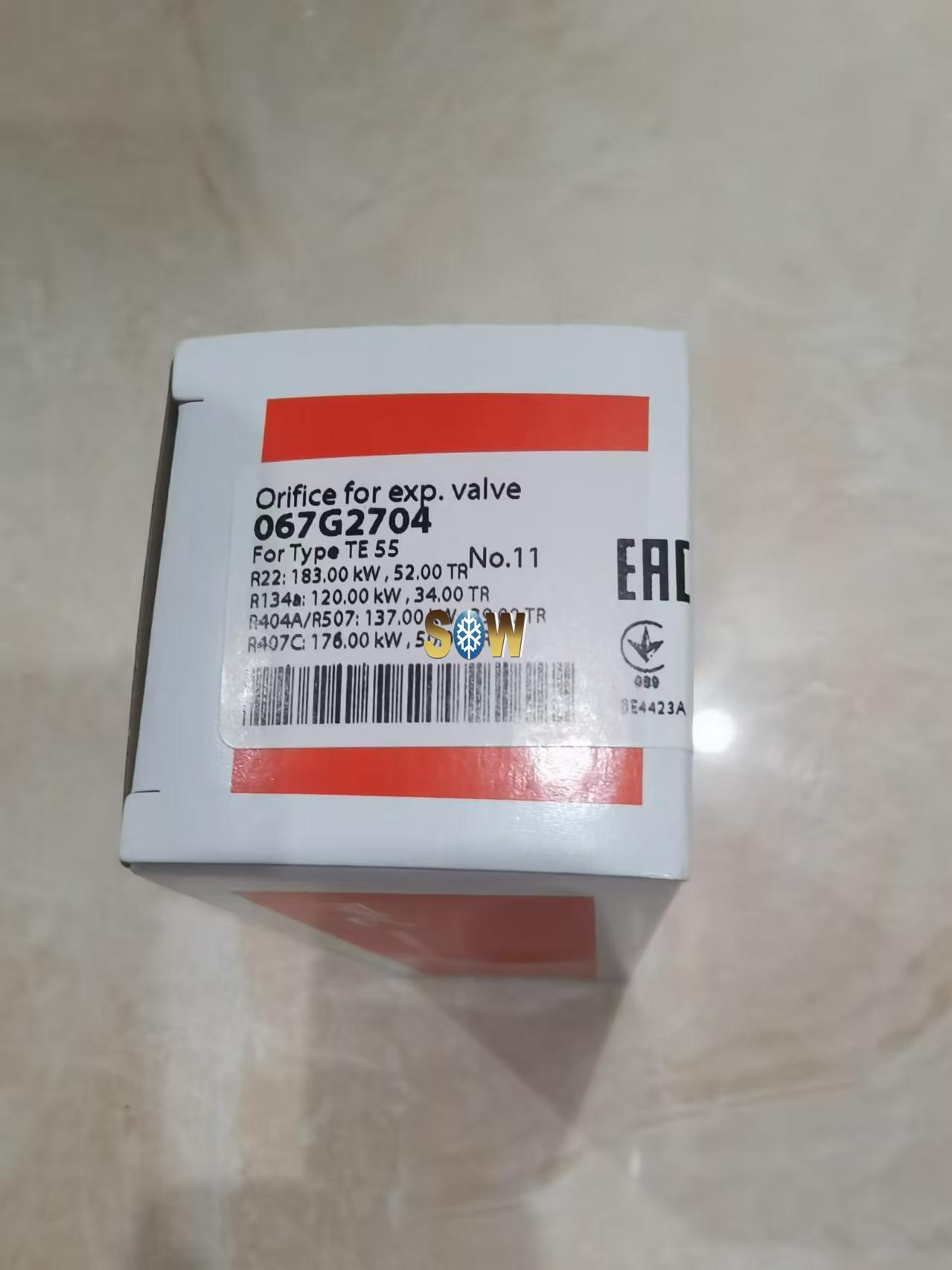

Danfoss Orifice for expansion valve 067G2704
Product details
Gross weight | 0.281 Kilogram |
Net weight | 0.25 Kilogram |
Volume | 0.283 Liter |
EAN | 5702428322232 |
Approval | EAC LLC CDC TYSK |
Balanced port [Yes/No] | Yes |
China RoHS compliance | Out of scope |
EU RoHS compliance | Yes with exemptions |
EU RoHS exemption clause | 6(a), 6(c) |
In scope of WEEE and contain batteries | No |
Orifice size | 11 |
Packing format | Multi pack |
Parts Program name | TE 55 |
Product accessories | TXV accessories |
Product group | Expansion valves |
Product Name Description | Orifice for expansion valve |
Quantity per packing format | 8 pc |
Rated cap. cond. Range N [IMP] | tcond=100 °F tevap=40 °F tliq=98 °F |
Rated cap. cond. Range N [SI] | tconc=38 °C tevap=4.4 °C tliq=37 °C |
Rated cap. R134a, Range N [kW] | 120 kW |
Rated cap. R134a, Range N [TR] | 34 TR |
Rated cap. R22, Range B [kW] | 89 kW |
Rated cap. R22, Range B [TR] | 25.3 TR |
Rated cap. R22, Range N [kW] | 183 kW |
Rated cap. R22, Range N [TR] | 52 TR |
Rated cap. R404A, Range B [kW] | 56.7 kW |
Rated cap. R404A, Range B [TR] | 16.2 TR |
Rated cap. R404A, Range N [kW] | 137 kW |
Rated cap. R404A, Range N [TR] | 39 TR |
Rated cap. R407A, Range N [kW] | 183 kW |
Rated cap. R407A, Range N [TR] | 52 TR |
Rated cap. R407C, Range N [kW] | 176 kW |
Rated cap. R407C, Range N [TR] | 50 TR |
Rated cap. R407F, Range N [kW] | 186 kW |
Rated cap. R407F, Range N [TR] | 53 TR |
Rated cap. R507, Range B [kW] | 56.7 kW |
Rated cap. R507, Range B [TR] | 16.2 TR |
Rated cap. R507, Range N [kW] | 137 kW |
Rated cap. R507, Range N [TR] | 39 TR |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R134a R22 R404A/R507A R407A R407C R407F R448A R449A R452A R513A |
SCIP dossier no. | 7a4717a2-7803-4273-9d94-59ccfb927c1e |
SCIP dossier product name | TE |
Serviceable | TXV spare parts |
Type | ORF |
UK RoHS compliance | Out of scope |
Used for product | TE 55 |
