Name:Danfoss Thermostatic Expansion Valves TGEZ5 067N4153 R407C/-40℃
Place of Origin:China
Brand:Danfoss
Model NO.:067N4153
Conn.size.:1/2x5/8 x 1/4inch
Inlet Type:Solder,ODF
Outlet Type:Solder,ODF
Orifice Cap.:19,00 kW (5,00 TR)
Orifice:6
Refrigerant:R407C
Weight:0.364 KG

Product Description

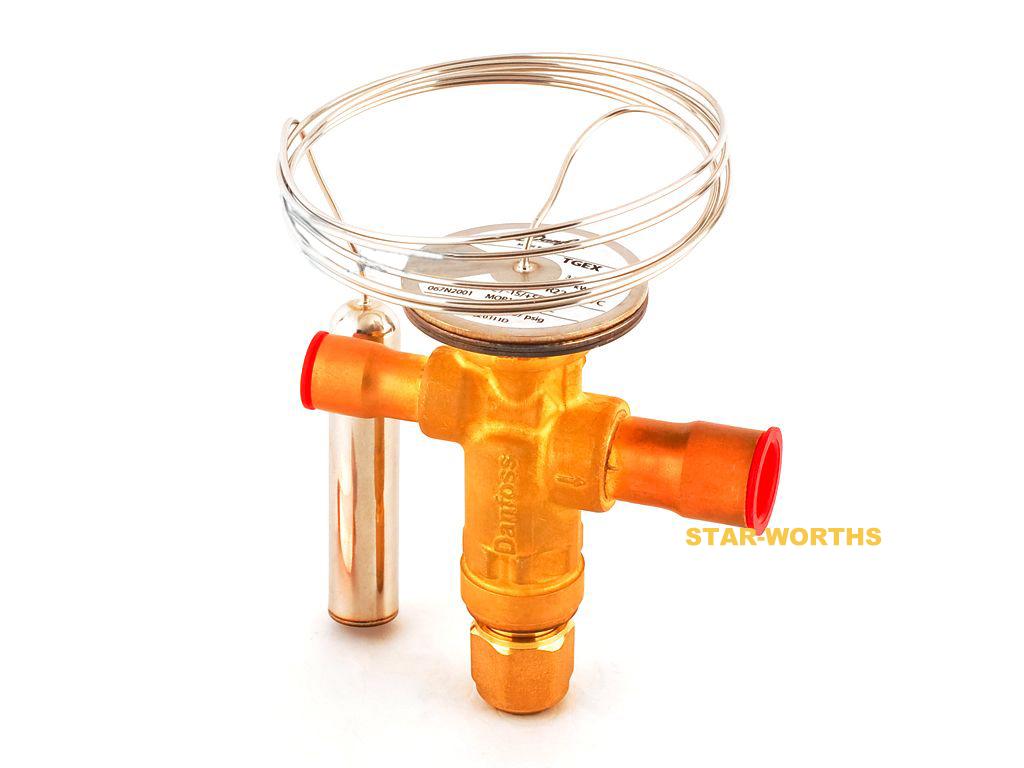

Danfoss Thermostatic Expansion Valves TGEZ5 067N4153 R407C/-40℃

Max.operating temperature ,valve body:110℃/230℉.
Max.working pressure: 46bar/667psig.
Max.test pressure: 51bar/740psig.

Type

Orifice cap.[kW]

Connection ODF*ODF(inch)

Code No.

Temp.range

With MOP Point

Temp.range

Without MOP Point

TGEZ2.5

9,00 kW

3/8x5/8 x 1/4

067N4000

067N4150

9,00 kW

1/2x5/8 x 1/4

067N4001

067N4151

TGEZ3.5

13,00 kW

1/2x7/8 x 1/4

067N4002

067N4152

TGEZ5

19,00 kW

1/2x5/8 x 1/4

067N4003

067N4153

19,00 kW

1/2x7/8 x 1/4

067N4004

067N4154

19,00 kW

5/8x7/8 x 1/4

067N4005

067N4155

TGEZ7

25,00 kW

5/8x7/8 x 1/4

067N4006

067N4156

TGEZ10

36,00 kW

5/8x7/8 x 1/4

067N4007

067N4157

36,00 kW

5/8x11/8 x 1/4

067N4008

067N4158

TGEZ12

42,00 kW

5/8x7/8 x 1/4

067N4009

067N4159

42,00 kW

5/8x11/8 x 1/4

067N4010

067N4160

TGEZ15

53,00 kW

5/8x11/8 x 1/4

067N4011

067N4161

53,00 kW

5/8x11/8 x 1/4

067N4012

067N4162

TGEZ18

62,00 kW

7/8x11/8 x 1/4

067N4013

067N4163

62,00 kW

7/8x13/8 x 1/4

067N4014

067N4164

TGEZ24

84,00 kW

7/8x13/8 x 1/4

067N4015

067N4165

84,00 kW

11/8x13/8 x 1/4

067N4016

067N4166

TGEZ27

95,00 kW

7/8x13/8 x 1/4

067N4017

067N6167

95,00 kW

11/8x13/8 x 1/4

067N4018

067N6168

TGEZ34

121,00 kW

11/8x13/8 x 1/4

067N4019

067N6169
