Name:	068-2015 Danfoss Orifice for expansion valve, ORF
Brand:	Danfoss
Model No.:	No.2 for TE 12
Part No.:	068-2015
Country of origion:	China
G.W:	18g/pc
Used for product:	T 2 TE 2
Temperature range [°C]:	-40 - 10
Orifice size:	02

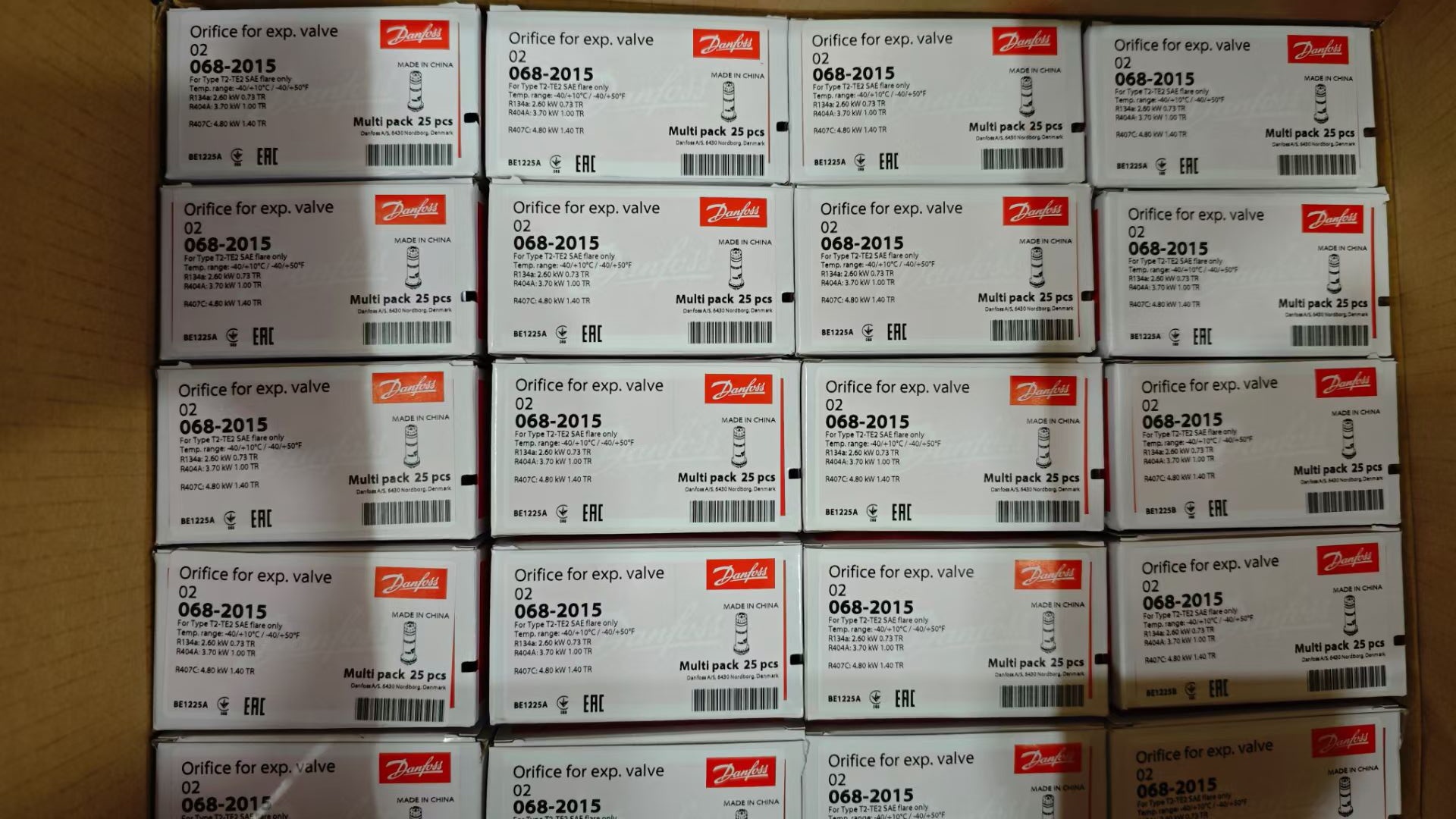

068-2015 Danfoss Orifice for expansion valve, ORF

Product details

Gross weight	18 Gram
Net weight	13 Gram

Volume	0.019 Liter
EAN	5702422027638

Approval	EAC LLC CDC TYSK
China RoHS compliance	Out of scope
Design	SAE flare only
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a), 6(c)
Fluid Group	1
In scope of WEEE and contain batteries	No
Orifice size	02
Packing format	Multi pack
Parts Program name	T2/TE2
PED category	Art. 4, par. 3
Product accessories	TXV accessories
Product group	Expansion valves
Product Name Description	Orifice for expansion valve
Quantity per packing format	25 pc
Rated cap. cond. Range N [IMP]	tcond=100 ºF tevap=40 ºF tliq=98 ºF
Rated cap. cond. Range N [SI]	tcond=38 ºC tevap=4.4 ºC tliq=37 ºC
Rated cap. R134a, Range N [kW]	2.6 kW
Rated cap. R134a, Range N [TR]	0.73 TR
Rated cap. R22, Range B [kW]	2.3 kW
Rated cap. R22, Range B [TR]	0.66 TR
Rated cap. R22, Range N [kW]	4.7 kW
Rated cap. R22, Range N [TR]	1.3 TR
Rated cap. R404A, Range B [kW]	1.9 kW

Rated cap. R404A, Range B [TR]	0.54 TR
Rated cap. R404A, Range N [kW]	3.7 kW
Rated cap. R404A, Range N [TR]	1 TR
Rated cap. R407C, Range N [kW]	4.8 kW
Rated cap. R407C, Range N [TR]	1.4 TR
Rated cap. R507, Range B [kW]	1.9 kW
Rated cap. R507, Range B [TR]	0.54 TR
Rated cap. R507, Range N [kW]	3.7 kW
Rated cap. R507, Range N [TR]	1 TR
Rated cap. R513A, Range N [kW]	2.2 kW
Rated cap. R513A, Range N [TR]	0.62 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a/R513A R22/R407C R23 R236fa R404A/R507A R407A R407C R448A R449A R452A
SCIP dossier no.	c164ed45-f10d-4d73-9eae-355ccb479f4b
SCIP dossier product name	T2 /TE2 - Thermostatic Expansion Valve
Serviceable	No
Temperature range [°C] [max]	10 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	50 °F
Temperature range [°F] [min]	-40 °F
Type	ORF
UA address	UA_2L.png
UK RoHS compliance	Out of scope
Used for product	T 2 TE 2
