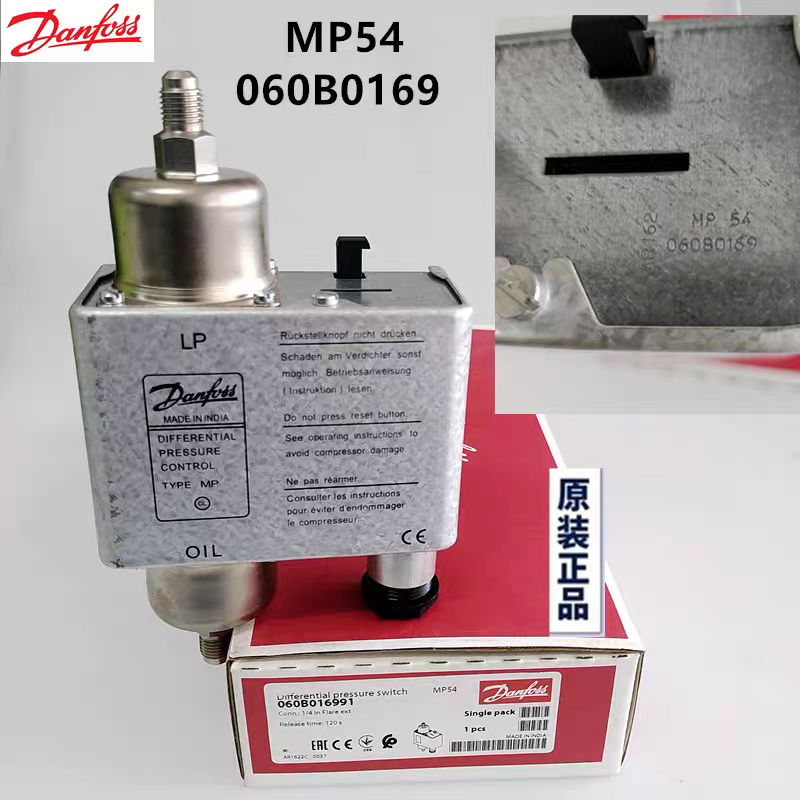

Name:	060B016991 Danfoss Differential pressure switch, MP54
Brand:	Danfoss
Model No.:	MP54
Part No.:	060B016991
Country of origion:	India
G.W:	0.766kgs/pc
Max. Working Pressure [bar]:	17.0
Enclosure rating IP:	IP20
Pressure connection size:	1/4 in
Pressure connection type:	Flare
Reset function:	Manual Min

060B016991 Danfoss Differential pressure switch, MP54

Product details

Gross weight	0.766 Kilogram
Net weight	0.65 Kilogram

Volume	1.988 Liter
EAN	5702424499792

Adjustment	Cut out for falling pressure
Amb. Temp. Note	Bellows max 100 °C/212 °F
Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	140 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CCC CE CMIM DNV∙GL EAC LLC CDC EURO-TYSK LVD RoHS China TYSK UKCA
China RoHS compliance	Yes
Contact differential [bar]	0.2 bar
Contact function	SPDT
Contact rating	AC15=2 A, 250 V DC13=0.2 A, 250 V
Electrical conn. Male/Female	Female
Electrical connection	Screwed cable entry
Electrical connection size	Pg 13.5
Electrical connection standard	DIN 40430
Electrical spec. standard	EN 60947-5
EN 60947 electrical properties	Insulation: 250V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 2A
EN 60947 wiring properties	Flex, ferrules: 0.2-1.0 mm2 Flex, no ferrules: 0.2-1.5 mm2 Solid/stranded: 0.2-1.5 mm2
Enclosure rating IP	IP20
Equipment	Thermal time relay
EU RoHS compliance	Out of scope
Fixed Differential [bar]	0.65 bar
Fixed Differential [psi]	9 psi
Identical product	060B101066
In scope of WEEE and contain batteries	No
Max. test pressure [bar] Pe	22 bar

Max. test pressure [psig]	319 psig
Max. Working Pressure [bar]	17 bar
Max. Working Pressure [psig]	245 psig
Operat. range LP side [bar] Pe [max]	12 bar
Operat. range LP side [bar] Pe [min]	-1 bar
Operat. range LP side [psig]Pe [max]	175 psig
Operat. range LP side [psig]Pe [min]	-15 psig
Other RoHS documentation	Saudi Arabia RoHS
Packing format	Multi pack
Pressure connection size	1/4 in
Pressure connection standard	DIN 8906
Pressure connection type	Flare
Pressure Male/Female	Male
Product accessories	Generic accessories
Product description	Diff. Pressure Switch
Product group	Switches and thermostats
Product Name Description	Differential pressure switch
Quantity per packing format	21 pc
Refrigerants	R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B
Relay release time [s]	120 s
Reset function	Manual Min
Serviceable	No
Type	MP54
UK RoHS compliance	Out of scope
UL approved refrigerants	R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B
