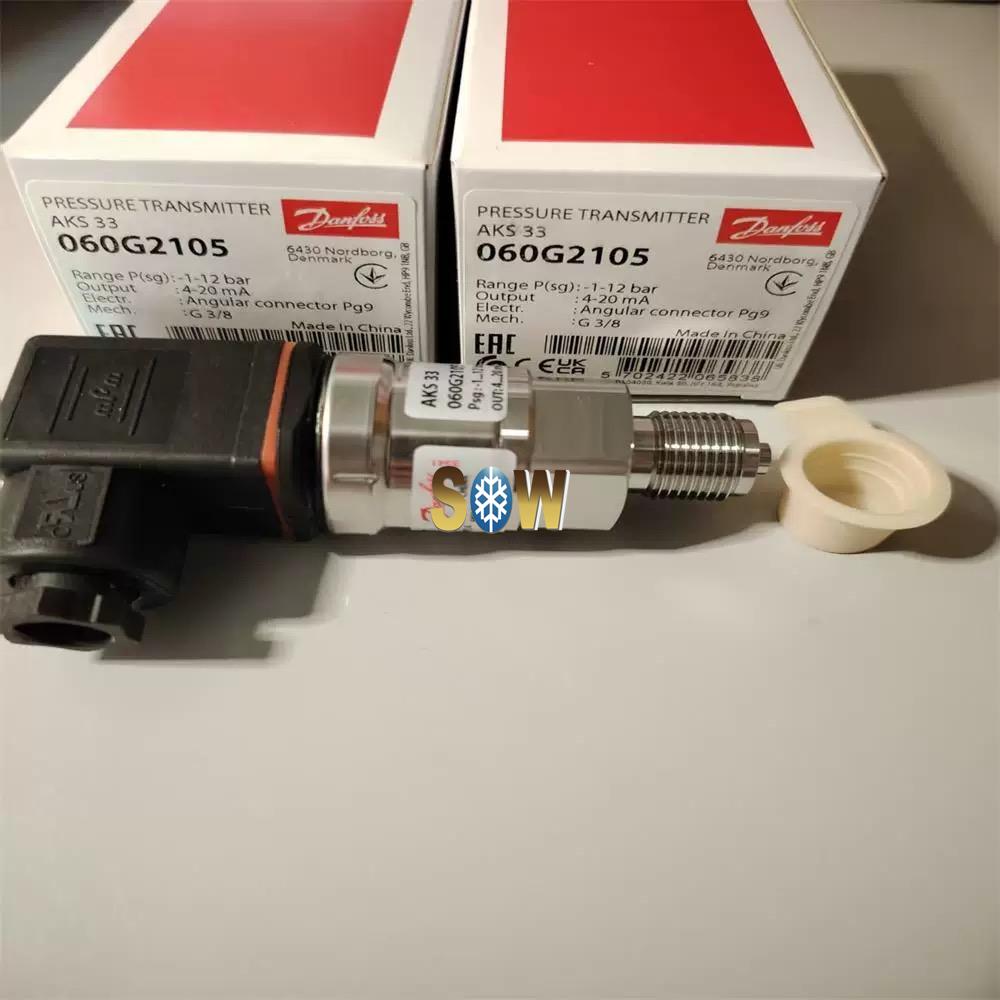

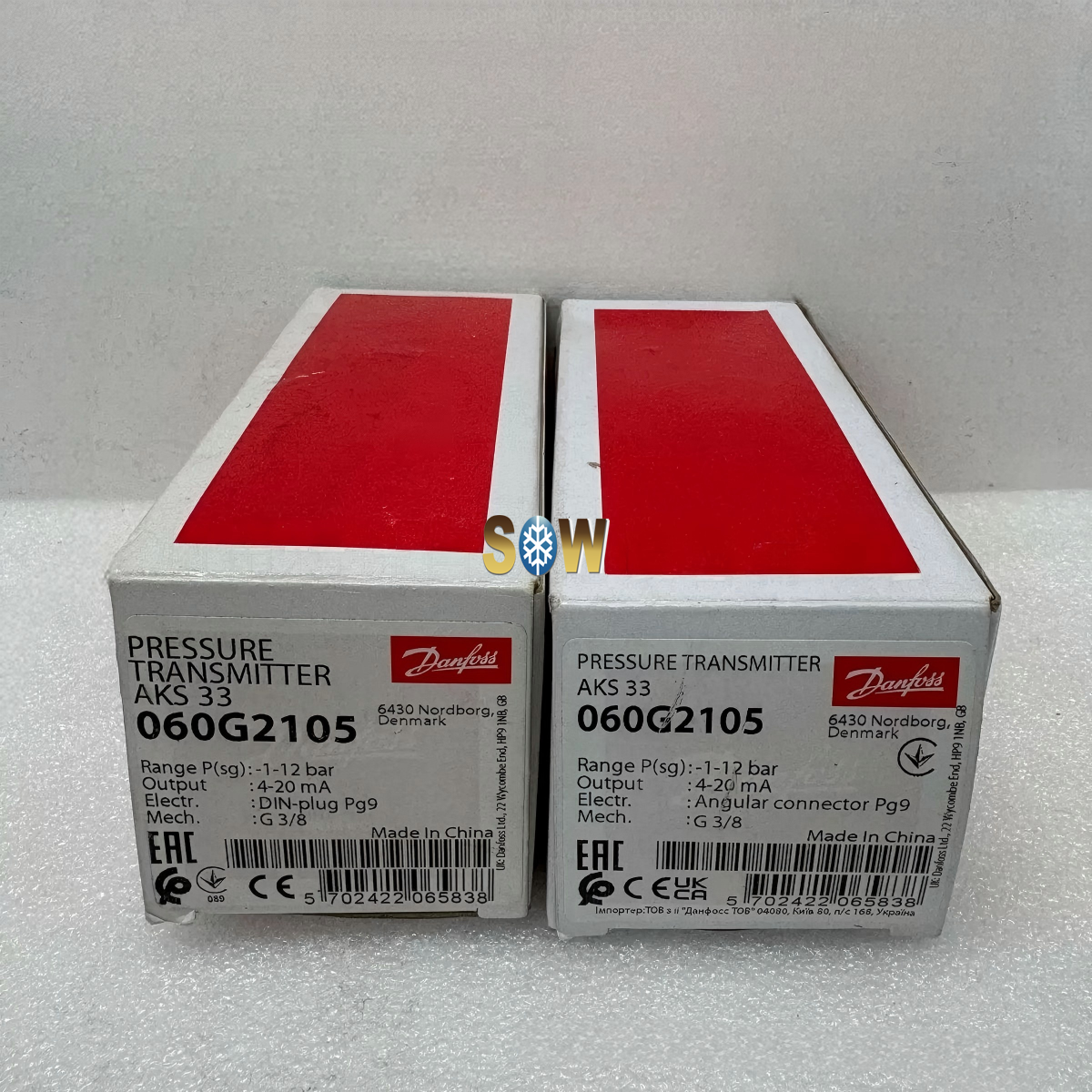

Name:	Danfoss Pressure transmitter, AKS 33,060G2105
Brand:	Danfoss
Model:	AKS33
Part No.:	060G2105
G.W:	0.19kgs/pc
Country of origion:	China
Pressure connection size:	3/8
Pressure connection type:	G
Specification key:	AKS 33-DH31-A1AB06-0
Electrical connection:	Angular connector
Output signal:	Current
Pressure reference:	Sealed gauge
Overload pressure max. [bar]:	33 bar
Pressure range [bar] [max]:	12 bar

Danfoss Pressure transmitter, AKS 33, -1.00 bar - 12.00 bar, -14.50 psi - 174.00 psi 060G2105

Product details

Gross weight	0.19 Kilogram
Net weight	0.168 Kilogram

Volume	0.411 Liter
EAN	5702422065838

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	0.8 %
Accuracy, typical [±FS%]	0.3 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX GOST POCC cUR
Approval comments	ATEX Ex ec IIA T4 Gc
Approval standard	6967179 E227388 E31024
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	40 °C
Compensated temp. range [°C] [min]	-30 °C
Compensated temp. range [°F] [max]	104 °F
Compensated temp. range [°F] [min]	-22 °F
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Out of scope
Flush diaphragm	No
High Clipping Level	22.4
Identical product	060G4439
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
International Article Number	5702422065838
Intrinsically safe	No
Low Clipping level	3.6
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C

Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.2 %
Other RoHS documentation	Saudi Arabia RoHS
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	33 bar
Overload pressure max. [psi]	479 psi
Packing format	Multi pack
Pressure connection size	3/8
Pressure connection standard	EN 837
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [max]	12 bar
Pressure range [bar] [min]	-1 bar
Pressure range [psi] [max]	174 psi
Pressure range [psi] [min]	-14.5 psi
Pressure reference	Sealed gauge
Product group	Sensors
Product Name Description	Pressure transmitter
Pulse-snubber	No
Quantity per packing format	14 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	5d3ddba9-4ab7-49e8-8c1e-73e8e21d0b89
SCIP dossier product name	Sensor AKS 33
Specification key	AKS 33-DH31-A1AB06-0
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
Supply voltage [V] DC [min]	9 V
Type	AKS 33
UK RoHS compliance	Out of scope
