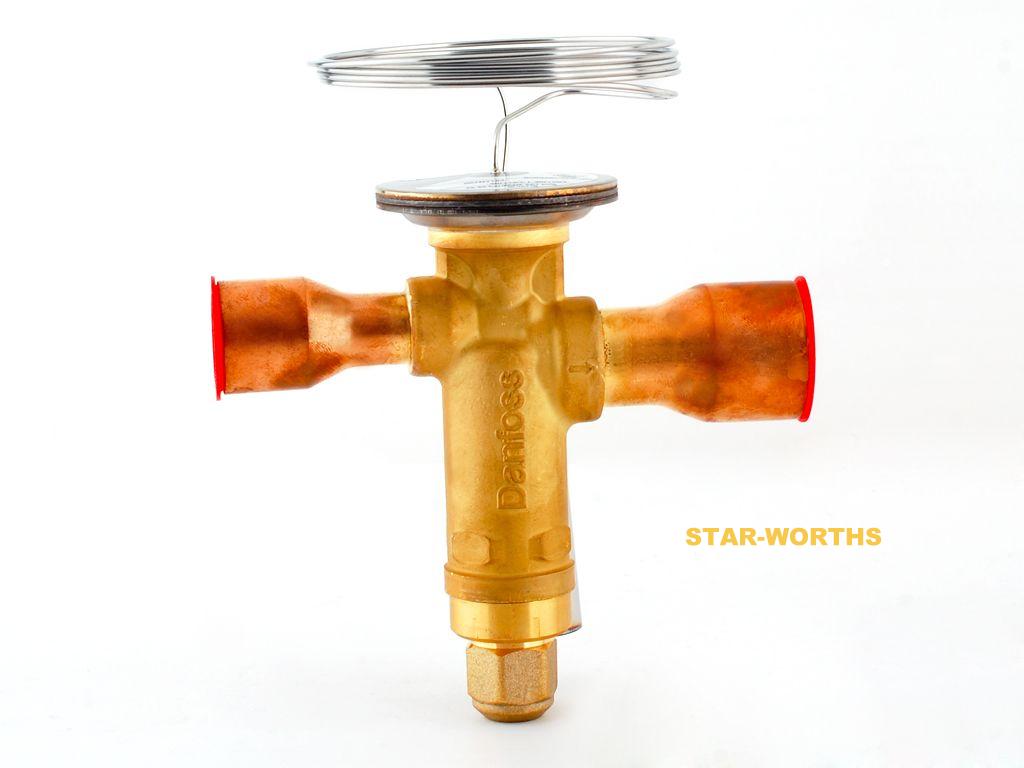

Name:Danfoss Thermostatic Expansion Valves TGEL31 067N3166 R410/-40℃
Place of Origin:China
Brand:Danfoss
Model NO.:067N3166
Conn.size.:11/8x13/8x1/4inch
Inlet Type:Solder,ODF
Outlet Type:Solder,ODF
Orifice Cap.:110,00 kW (31,00 TR)
Orifice:26
Refrigerant:R410A
Weight:1KG

Product Description

Danfoss Thermostatic Expansion Valves TGEL31 067N3166 R410/-40℃

Max.operating temperature ,valve body:110℃/230℉.
Max.working pressure: 46bar/667psig.
Max.test pressure: 51bar/740psig.

Type

Orifice cap.[kW]

R410A

Connection ODF*ODF(inch)

Code No.

With MOP Point

Without MOP Point

TGEL3.5

12,00kw

3/8*5/8*1/4

067N3000

067N3150

12,00kw

1/2*5/8*1/4

067N3001

067N3151

TGEL4.5

16,00kw

1/2*7/8*1/4

067N3002

067N3152

TGEL6.5

24,00kw

1/2*5/8*1/4

067N3003

067N3153

24,00kw

1/2*7/8*1/4

067N3004

067N3154

24,00kw

5/8*7/8*1/4

067N3005

067N3155

TGEL9

32,00kw

5/8*7/8*1/4

067N3006

067N3156

TGEL13

45,00kw

5/8*7/8*1/4

067N3007

067N3157

45,00kw

5/8*11/8*1/4

067N3008

067N3158

TGEL15

54,00kw

5/8*7/8*1/4

067N3009

067N3159

54,00kw

5/8*11/8*1/4

067N3010

067N3160

TGEL19

68,00kw

5/8*11/8*1/4

067N3011

067N3161

68,00kw

7/8*11/8*1/4

067N3012

067N3162

TGEL23

79,00kw

7/8*11/8*1/4

067N3013

067N3163

79,00kw

7/8*13/8*1/4

067N3014

067N3164

TGEL31

110,00kw

7/8*13/8*1/4

067N3015

067N3165

110,00kw

11/8*13/8*1/4

067N3016

067N3166

TGEL35

125,00kw

11/8*13/8*1/4

067N3018

067N3168

TGEL46

161,00kw

11/8*13/8*1/4

067N3019

067N3169
