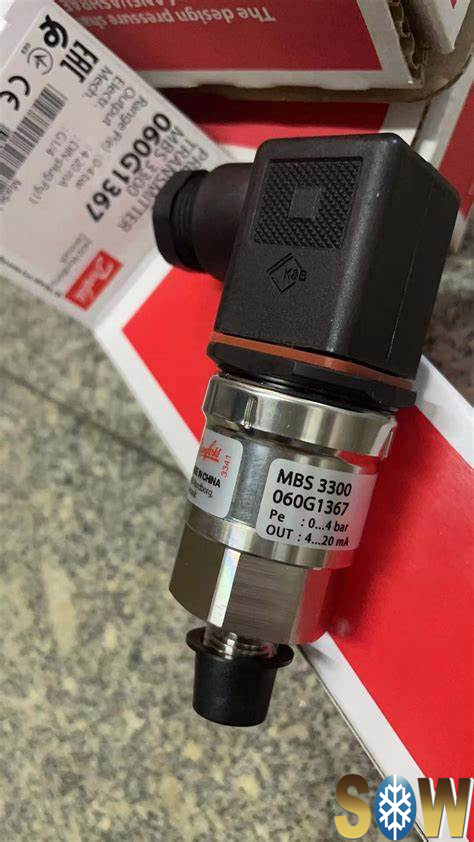

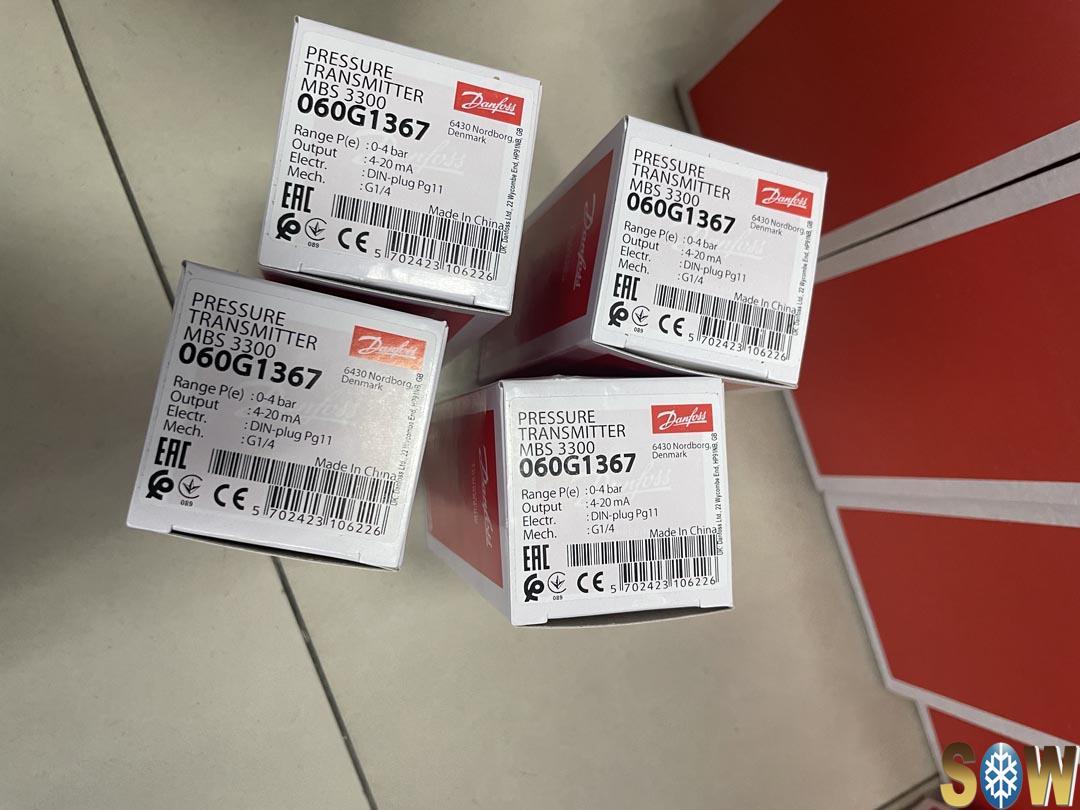

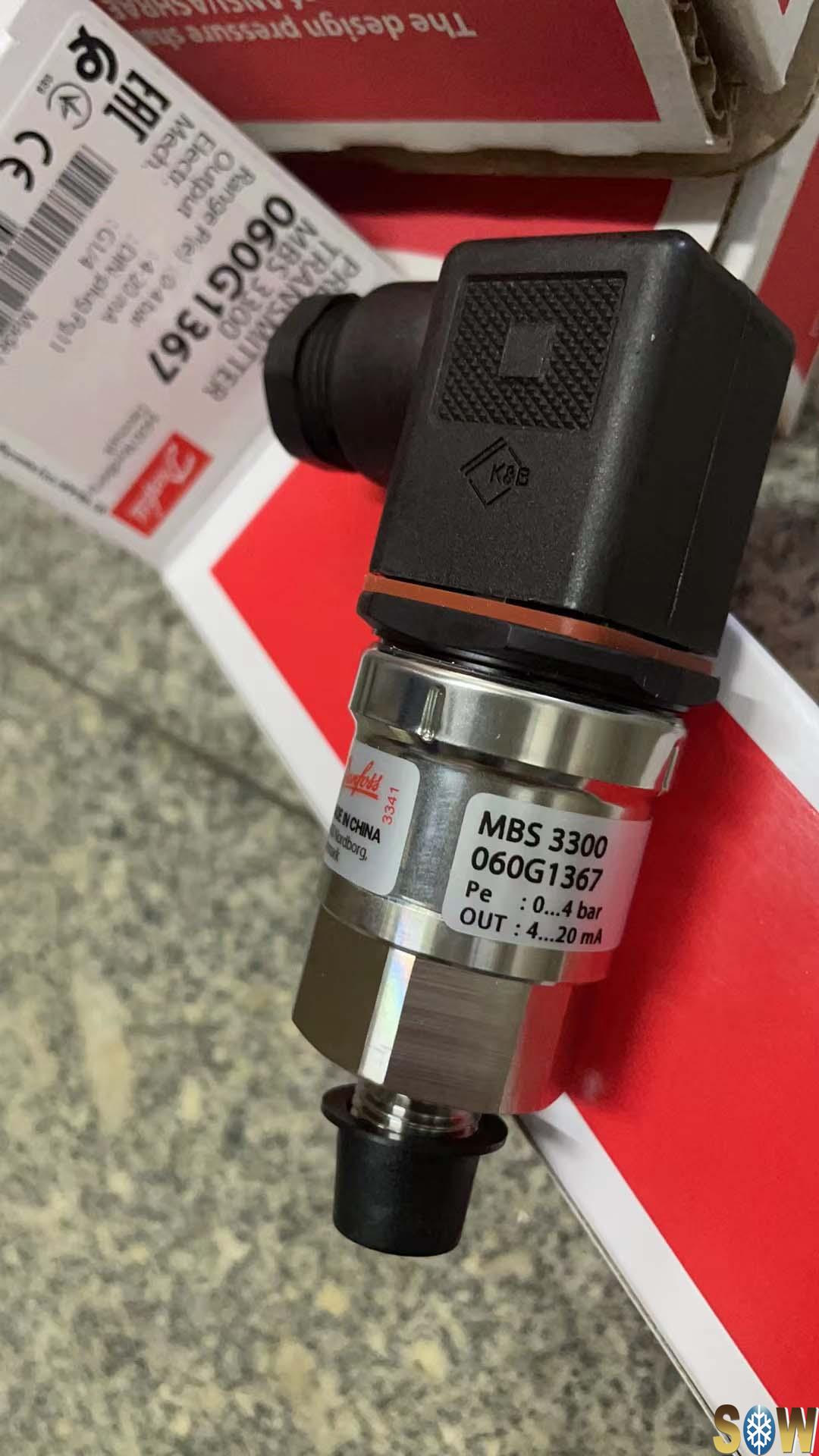

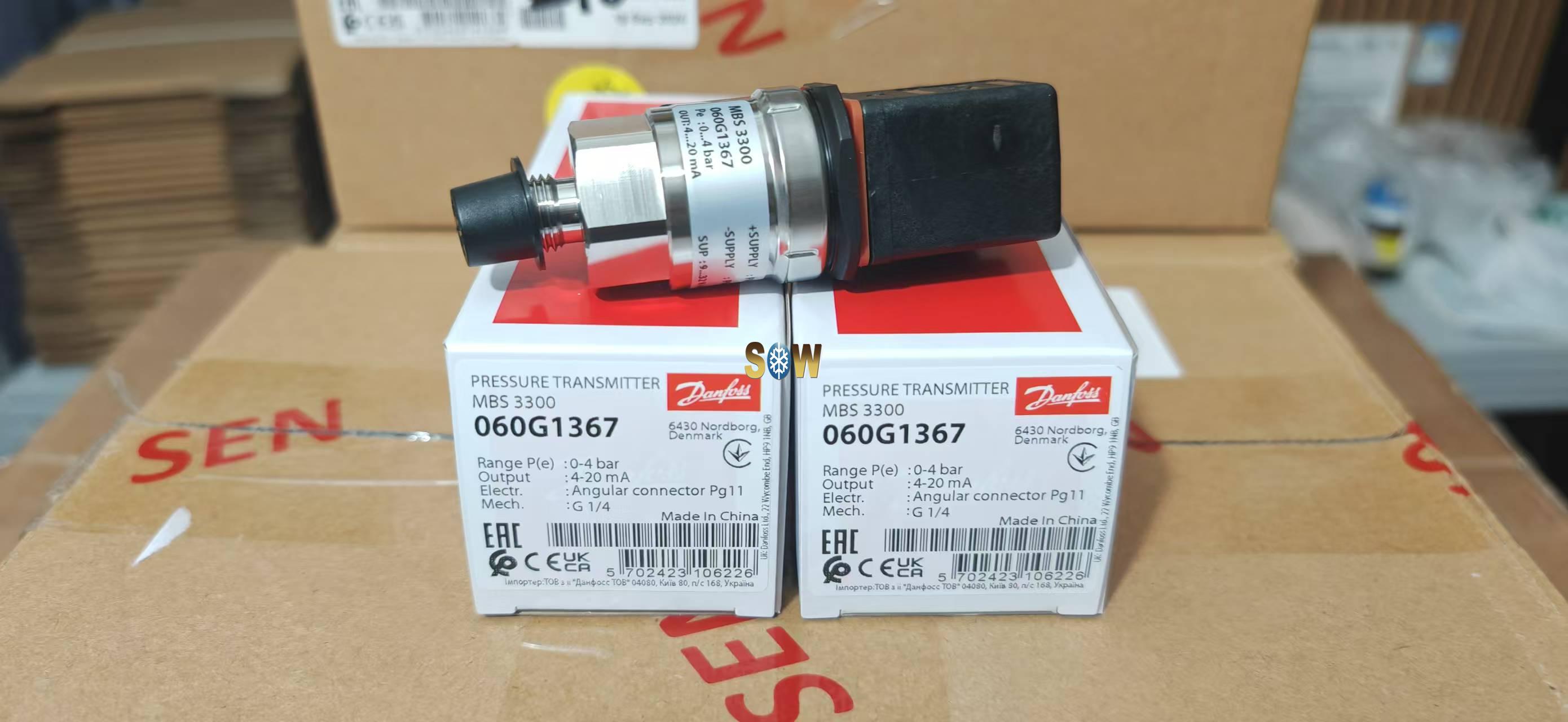

Danfoss Pressure transmitter, MBS 3300, 0.00 bar - 4.00 bar, 0.00 psi - 58.00 psi 060G1367

Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 3300-1611-A6AB04-0

Product details

Gross weight	0.174 Kilogram
Net weight	0.153 Kilogram

Volume	0.413 Liter
EAN	5702423106226

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	1 %
Accuracy, typical [±FS%]	0.5 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	100 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	212 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX
Approval comments	ATEX Ex ec IIA T4 Gc
China RoHS compliance	Yes
Compensated temp. range [°C] [max]	100 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	212 °F
Compensated temp. range [°F] [min]	32 °F
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
International Article Number	5702423106226
Intrinsically safe	No
Low Clipping level	3.6
Medium temperature range [°C] [max]	125 °C
Medium temperature range [°C] [min]	-40 °C

Medium temperature range [°F] [max]	257 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.5 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	8 bar
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/4
Pressure connection standard	EN 837
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [max]	4 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	58 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Gauge (relative)
Product group	Sensors
Product Name Description	Pressure transmitter
Pulse-snubber	No
Quantity per packing format	14 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	MBS 3300-1611-A6AB04-0
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
Supply voltage [V] DC [min]	9 V
Type	MBS 3300
UK RoHS compliance	Yes

Danfoss MBS 3100 Compact pressure transmitters for marine applications
Code no.	Type	Pulse-snubber	Adj. zero point and span	Pr. reference	Pressure range [bar]	Pressure range [psi]	Pressure conne. type	Electrical connection type	Output signal type	Accuracy, typical +/- FS [%]
060G1367	MBS 3100	No	No	Gauge (relative)	0,00 - 4,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1368	MBS 3100	No	No	Gauge (relative)	0,00 - 6,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1369	MBS 3100	No	No	Gauge (relative)	0,00 - 10,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1370	MBS 3100	No	No	Gauge (relative)	0,00 - 16,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1371	MBS 3100	No	No	Gauge (relative)	0,00 - 25,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1372	MBS 3100	No	No	Gauge (relative)	0,00 - 40,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1463	MBS 3100	No	No	Gauge (relative)	0,00 - 4,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1464	MBS 3100	No	No	Gauge (relative)	0,00 - 6,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1465	MBS 3100	No	No	Gauge (relative)	0,00 - 10,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1466	MBS 3100	No	No	Gauge (relative)	0,00 - 16,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1467	MBS 3100	No	No	Gauge (relative)	0,00 - 25,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1468	MBS 3100	No	No	Gauge (relative)	0,00 - 40,00 bar	-	G - 1/4 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1469	MBS 3100	No	No	Gauge (relative)	0,00 - 4,00 bar	-	G - 1/2 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1470	MBS 3100	No	No	Gauge (relative)	0,00 - 6,00 bar	-	G - 1/2 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1471	MBS 3100	No	No	Gauge (relative)	0,00 - 10,00 bar	-	G - 1/2 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1472	MBS 3100	No	No	Gauge (relative)	0,00 - 16,00 bar	-	G - 1/2 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
060G1473	MBS 3100	No	No	Gauge (relative)	0,00 - 25,00 bar	-	G - 1/2 Male	Pg 11, EN 175301-803-A, Male and Female	4 - 20 mA	0,5 %
