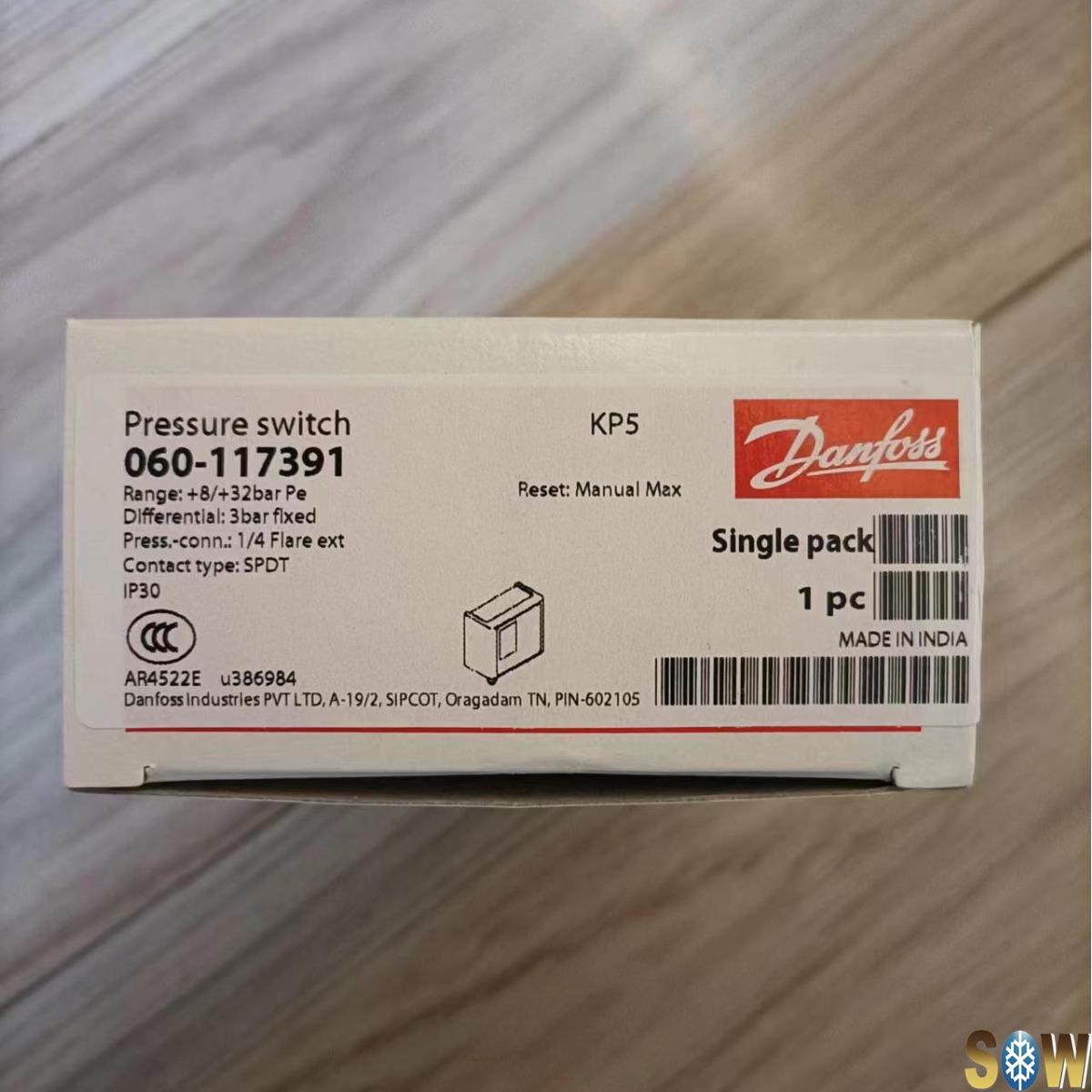

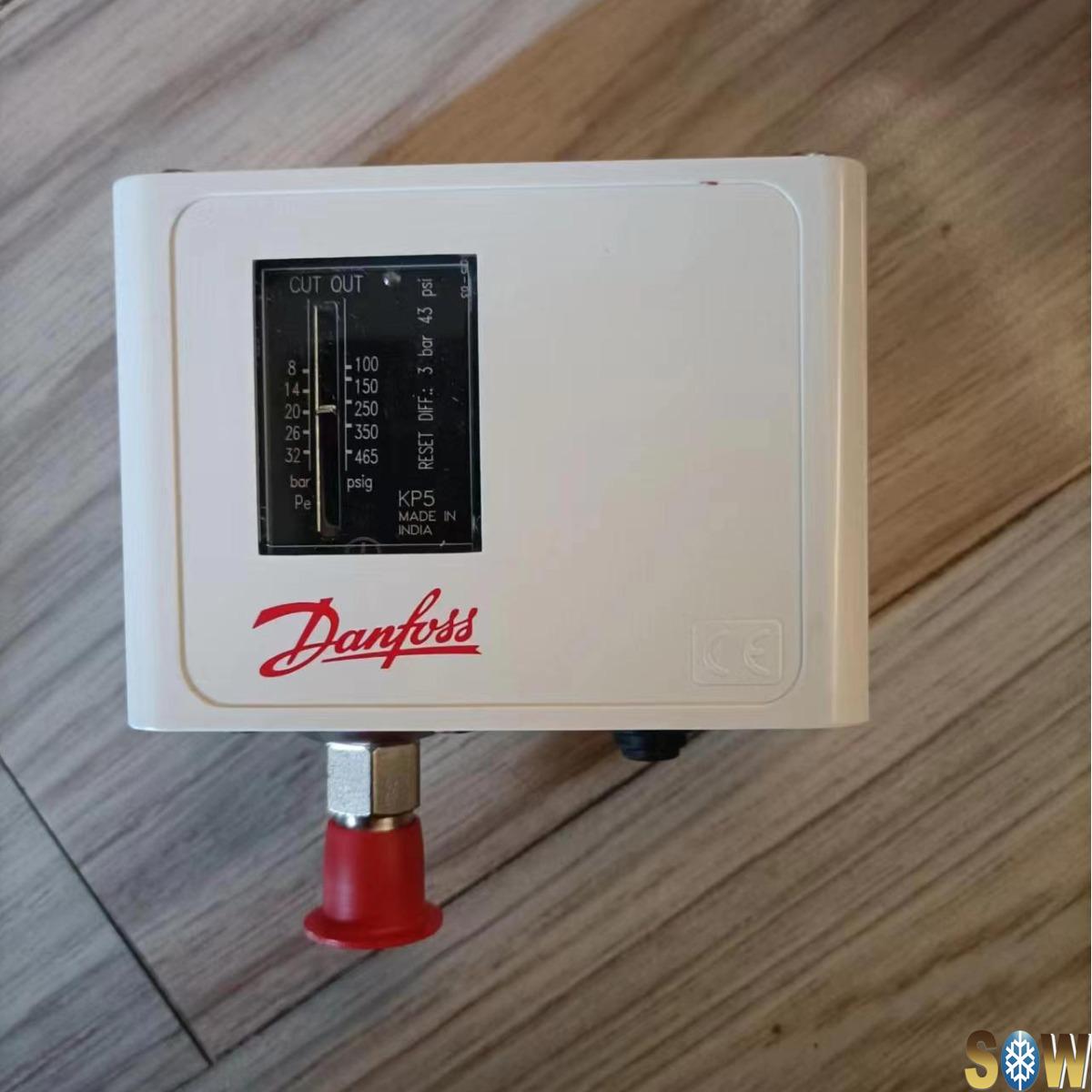

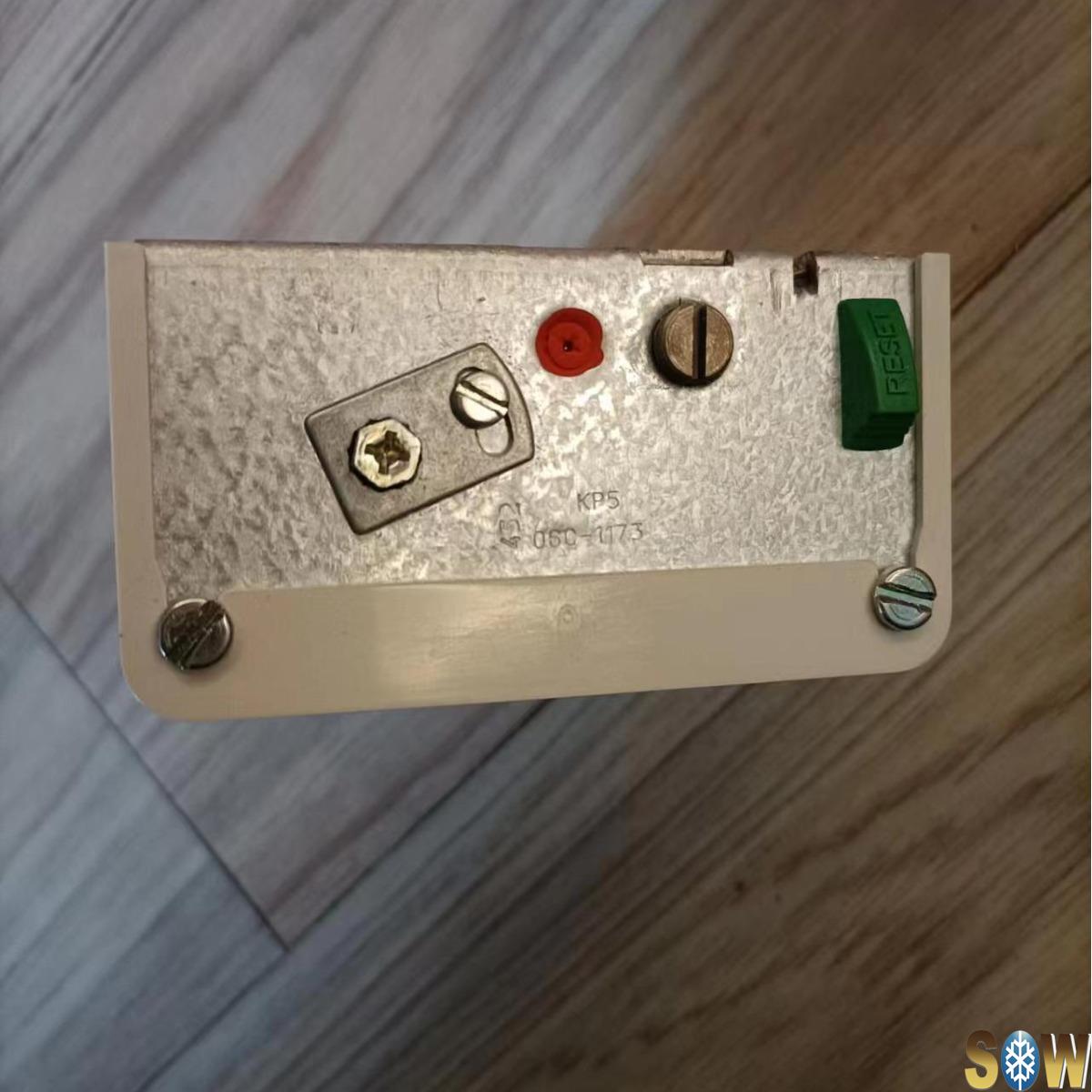

Name:	Danfoss pressure switch KP5 060-117391
Brand:	Danfoss
Model:	KP5
Part No.:	060-117391
G.W:	0.322kgs
Oil free refrigerants:	R134a R513A R515B
Pressure connection size:	1/4
Regulation range [bar] Pe:	8.00 - 32.00
Differential [bar]:	3.00
Contact function:	SPDT
Reset function:	Manual
Pressure connection type:	Flare
Enclosure rating IP:	IP30
Max. Working Pressure [bar]:	35.0

Product Description

Danfoss pressure switch KP5 060-117391

Kp5 060-1171 (Auto) Kp5 060-1173 (Manual) HP for DanFoss Kp Pressure Switch

Product Description

1. KP pressure controls are for use in refrigeration and air conditioning systems to give protection
Against excessively low suction pressure or excessively high discharge pressure.
2. KP pressure controls are also used for starting and stopping refrigeration compressors and fans
On air-cooled condensers.
3. KP pressure controls are fitted with a single-pole double-throw (SPDT) switch. The position of the

Switch is determined by the pressure control setting and the pressure at the connector.

Item No.	pressure	Low pressure		High pressure		Reset		Contact System	Product code
Item No.	pressure	Adjust range (bar)	Differential pressure (bar)	Adjust range (bar)	Differential pressure (bar)	Adjust range (bar)	Differential pressure (bar)	Contact System	1/4in 6mm flare	1/4in ODF solder	6mm ODF solder
KP1	Low	-0.2-7.5	0.7-4.0			Auto		SPDT	060-1101	060-1112	060-1110
KP1	Low	-0.9-7.0	Fixed 0.7			Manual			060-1103	060-1111	060-1109
KP2	Low	-0.2-5.0	0.4-1.5			Auto			060-1120		060-1123
KP5	High			8-32	1.8-6.0		Auto		060-1171	060-1179	060-1177
KP5	high			8-32	Fixed 3	Auto	Manual		060-1173	060-1180	060-1178
KP15	Dual	-0.2-7.5	0.7-4.0	8-32	Fixed 4	Auto	Auto	SPDT+ Low signal	060-1241	060-1254
KP15	Dual	-0.2-7.5	0.7-4.0	8-32	Fixed 4		Manual		060-1243
KP15	Dual	-0.9-7.0	Fixed 0.7	8-32	Fixed 4	Manual	Manual		060-1245
KP15	Dual	-0.2-7.5	0.7-4.0	8-32	Fixed 4	Auto	Auto	SPDT+ Low/high signal	060-1265	060-1299
KP15	Dual	-0.2-7.5	0.7-4.0	8-32	Fixed 4	Auto	Manual	SPDT+ Low/high signal	060-1264	060-1284
KP35	Low	-0.2-7.5	0.7-4.0			Auto		SPDT	060-1133 G1/4
KP36	Low	2-14	0.7-4.0			Auto			060-1108 G1/4
KP38	High			8-32	1.8-6.0		Auto		060-5081 G1/4
