Saginomiya Pressure Controls DNS-D606XM

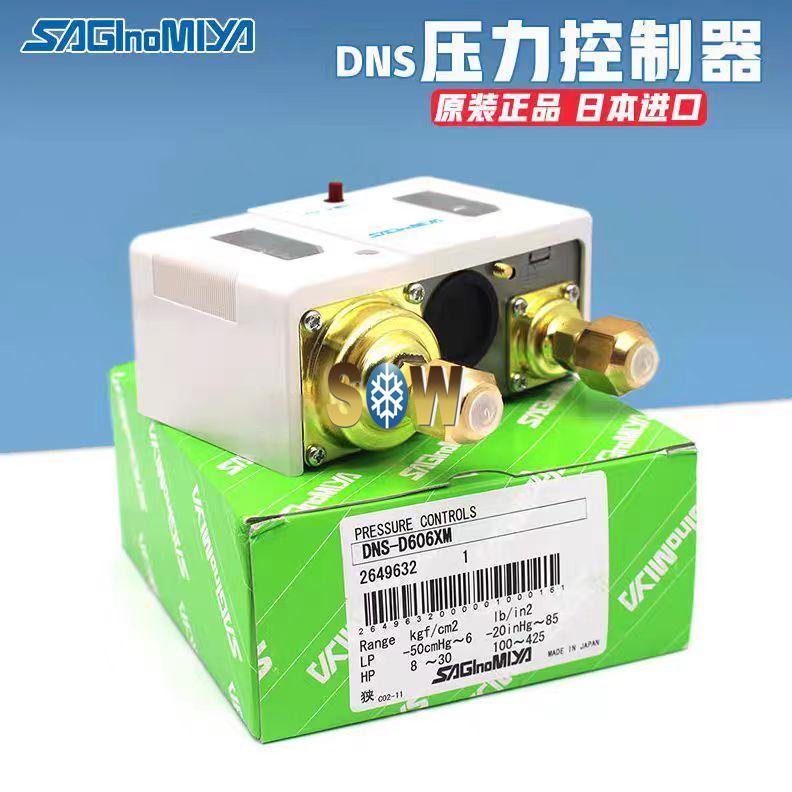

Saginomiya DNS – D606M | Dual Pressure Controller

Specification

• Maker : Saginomiya
• Type : DNS- D606M
• Range : -0.06……0.6 MPa
• Description : Dual Pressure Controller
• Condition : New & Surplus
• Saginomiya DNS-D606XM
• Type DNS is dual pressure controls that is integrated
• with over pressure protection of the high pressure side
• and control of low pressure side of the refrigeration unit.
• Scale plate with significantly clear visibility
• Compact and light weight

• Fluid temperature: －20 to 120°C
• Ambient temperature: －20 to 70°C

• Specifications

  Connection:1/4"

  Refrigerant:R22,R134a,R404a,R407C

  Reset function, left side:not present

  Reset function, right side:present

  Operat. range LP side Pe [Max]:0.4MPa (4kgf/cm2)

  Operat. range LP side Pe [Min]:-0.06MPa (-50cmHg)

  Fixed Differential:0.4MPa (4kgf/cm2)

  Diff.press.setting range [Max]:0.2MPa (2kgf/cm2)

  Diff.press.setting range [Min]:0.04MPa (0.4kgf/cm2)

  Operat. range HP side Pe [Min]:0.8MPa (8kgf/cm2)

  Operat. range HP side Pe [Max]:3MPa (30kgf/cm2)
