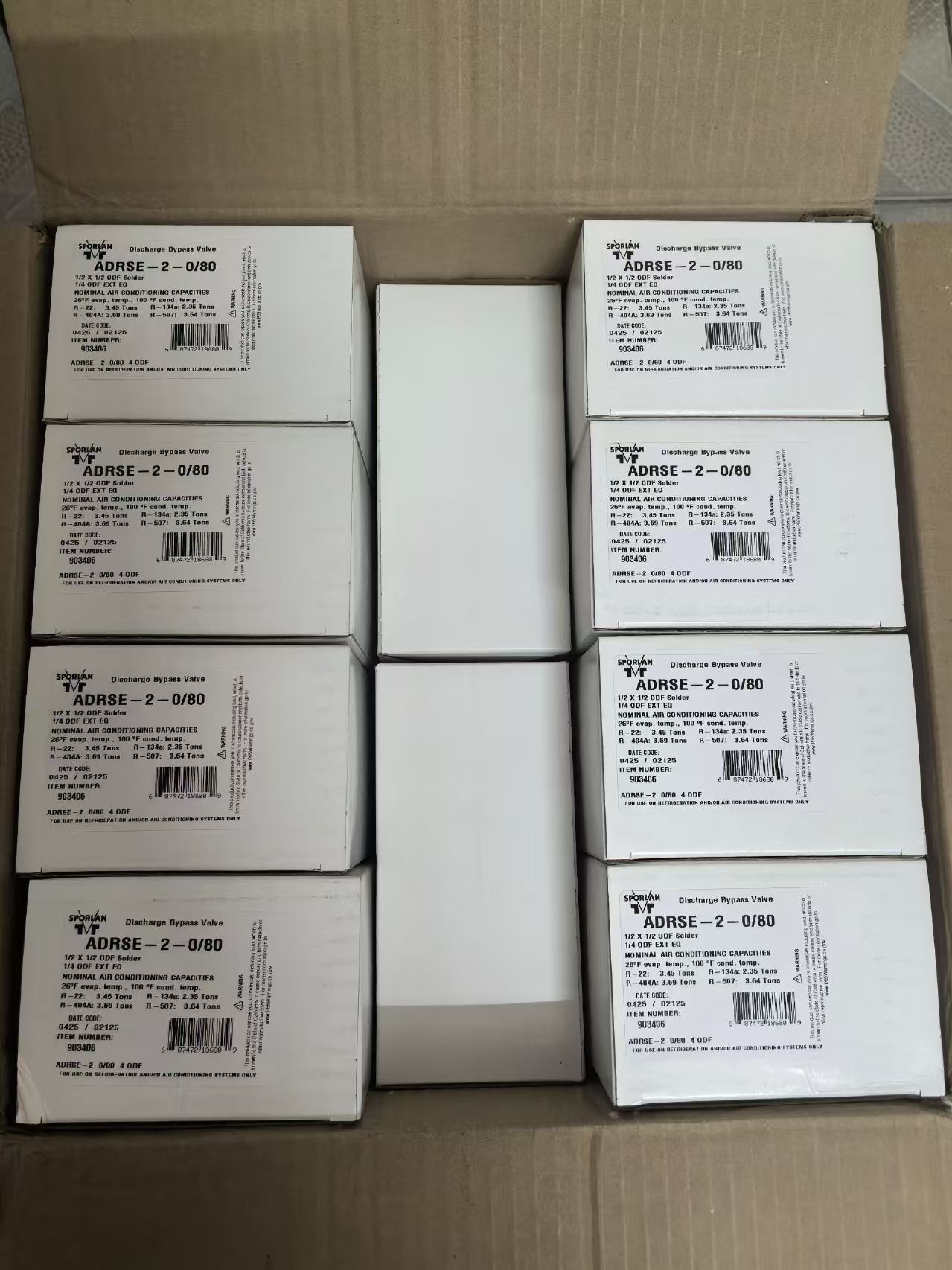

Sporlan ADRSE-2 1/2" ODF Discharge Bypass Valve (0/80 PSIG)

Discharge bypass valve, adjustable, external equalizer, 1/4" port, 1/2" ODF, 0 to 80 psi

Discharge bypass valves open on decrease in suction pressure to maintain a minimum evaporation pressure. The flow to the bypass valve is controlled by a solenoid valve. Discharge valves are preferably piped from the compressor discharge to the evaporator inlet using an auxiliary side connector but can also be piped to the suction line.

Adjustable model

Overall height: 6.44"

Valve capacity:

0/80 26°F evaporator, 100°F condensing— 3.45 tons,

0/30 -20°F evaporator, 100°F condensing— 3.63 tons

Capacity based on 6°F evaporator temperature change, 25°F superheat, 0°F subcooling, R22

Brand Name:Sporlan

URI Part Number:ADRSE2

Vendor Part Number:903406

Length (In.):7.40

Width (In.):5.20

Height (In.):3.60

Shipping Weight (Lbs.):2.56

Connection Size (In.):1/2

Connection Type:ODF

Equalizer:1/4 ODF

Overall Height (In.):6.44

Pressure Range (psi):0 to 80

Valve Capacity:26°F evaporator, 100°F condensing—3.45 tons

Prop65:WARNING: This product can expose you to chemicals including Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Description

BODY STYLE: S

PRESSURE RANGE ADJUSTMENT (PSIG): 0/80

VALVE TYPE: 2

INLET SIZE (INCH): 1/2" ODF

OUTLET SIZE (INCH): 1/2" ODF

PORT SIZE (INCH): 1/4"

TYPE: DR

EQUALIZER METHOD: Externally Equalized

CONNECTION TYPE: Solder or Flare

CONNECTION MATERIAL: Copper or Brass

The Sporlan Type ADR, HGB, and SHGB discharge bypass regulating valves have a brass body. The smaller capacity direct acting valves are available with SAE or ODF connections. The larger capacity pilot operated valves have extended copper connections. The direct acting valves are available with nonadjustable or adjustable settings. The pilot operated valves are available with adjustable settings. The primary function of these valves, referred to as DBV valves, is to limit the minimum evaporating pressure during periods of low load either to prevent coil icing or avoid operating the compressor at a lower suction pressure than it was designed to operate. Each valve is factory tested to ensure positive leak-free performance.

Features/Benefits:

Optional inlet strainer

Range of adjustable settings

The SHGB pilot operated valves have a solenoid stop feature

Design working pressure for the (A)DRI, (A)DRS, (A)DRP and (A)DRH valves is 500 psi (34.5 bar), SHGB valves is 450 psi (31 bar) and the HGB -1 through HGB-8 valves is 700 psi (48.3 bar)
