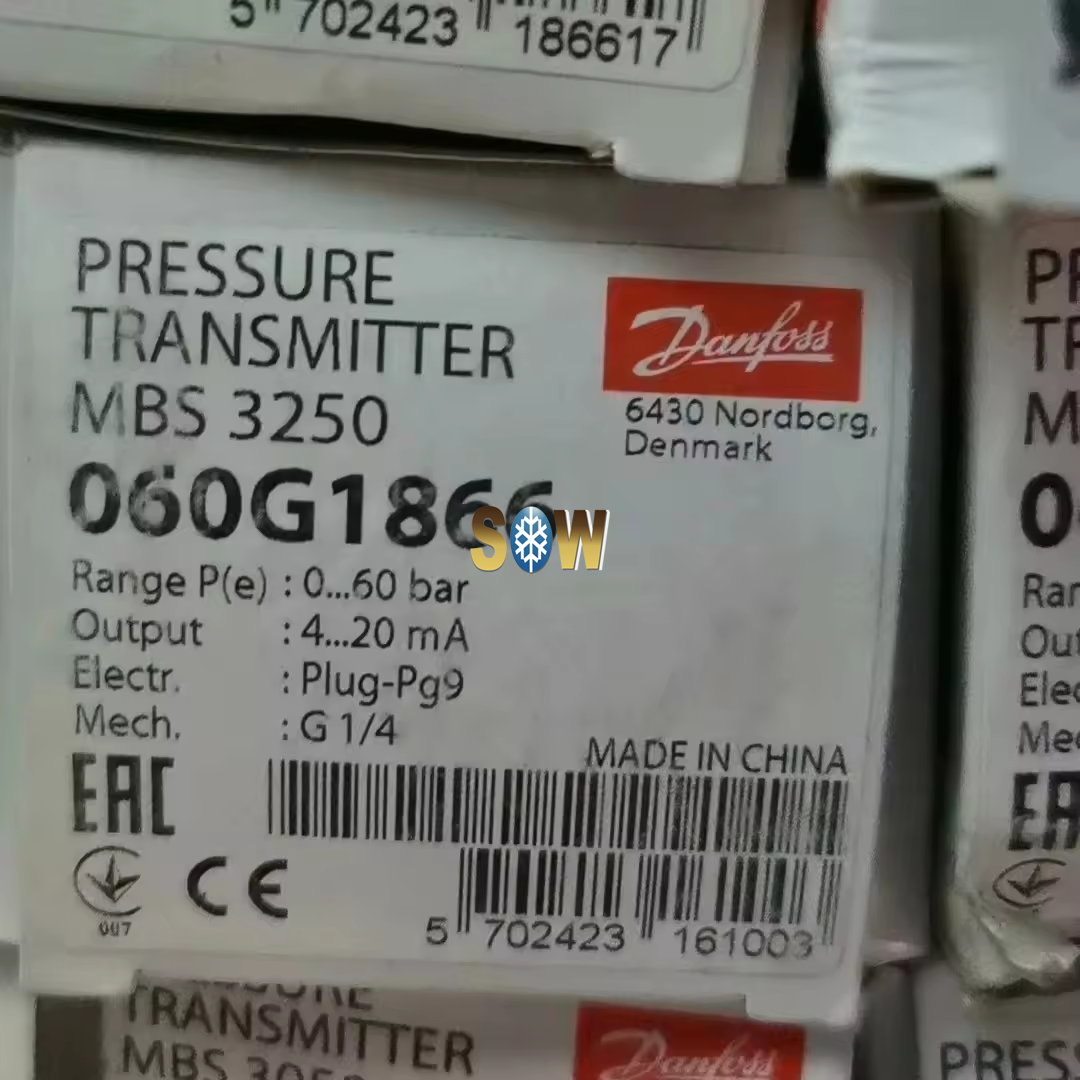

Name:	Danfoss Pressure transmitter, MBS 3250, 060G1866
Brand:	Danfoss
Model No.:	MBS 3250
Part No.:	060G1866
Country of origion:	China
G.W:	0.175kgs/pc
Product Name Description:	Pressure transmitter
Pressure range [bar]:	0.00 bar - 60.00 bar
Specification key:	MBS 3250-2831-A1GB04-1
Pressure connection size:	1/4
Pressure connection type:	G
Electrical connection:	Angular connector
Output signal:	Current
Pressure reference:	Sealed gauge

Danfoss Pressure transmitter, MBS 3250, 060G1866

Product details

Gross weight	0.175 Kilogram
Net weight	0.157 Kilogram

Volume	0.424 Liter
EAN	5702423161003

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	1 %
Accuracy, typical [±FS%]	0.5 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	100 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	212 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX
Approval comments	ATEX Ex ec IIA T4 Gc
China RoHS compliance	Yes
Compensated temp. range [°C] [max]	100 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	212 °F
Compensated temp. range [°F] [min]	32 °F
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
International Article Number	5702423161003
Intrinsically safe	No
Low Clipping level	3.6
Medium temperature range [°C] [max]	125 °C

Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	257 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.2 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	360 bar
Packing format	Multi pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/4
Pressure connection standard	DIN 3852-E ISO 1179-2 (Form E)
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [max]	60 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	870 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Sealed gauge
Product group	Sensors
Product Name Description	Pressure transmitter
Pulse-snubber	Yes
Quantity per packing format	14 pc
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
Specification key	MBS 3250-2831-A1GB04-1
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
Supply voltage [V] DC [min]	9 V
Type	MBS 3250
UK RoHS compliance	Yes
