Name:	Copeland Scroll Compressor 10HP ZR125KC-TFD-522
Brand:	Copeland
Model No.:	ZR125KC-TFD-522
Country of origional:	Thailand
Electrical power:	380-420V/3P/50Hz
Refrigerant:	R22
Locked Rotor Amps (LRA):	125,0
Rated Load Amps (RLA):	19,2
Horsepower (HP):	10,00
Cooling capacity (BTU/H):	104.600
N.W:	61.2（kg）
Size:	0.24250.24250.533

Product Description

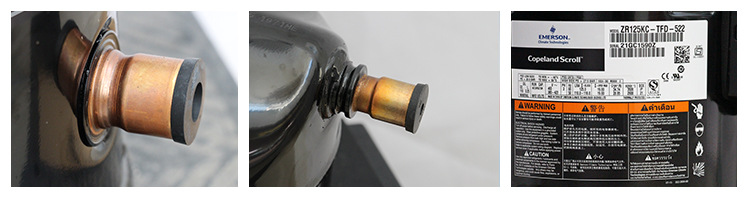

Copeland Scroll Compressor 10HP ZR125KC-TFD-522

Scroll Compressor (ZR Series)
Power: 1.5-15 HP
Med/High Temperature
Superior efficiency
Outstanding reliablity
Fewer moving parts

Very low noise/gas pulsation.

Compressors - air conDitioning (cont' D)
hBp compressor - 3 phase
Model NO.	Cooling Capacity (rating point 7.2)	nominal hp	Displ. cc/rev	nom current	Weight
Model NO.	Cooling Capacity (rating point 7.2)	nominal hp	Displ. cc/rev	FLa	(Kg)
ZR22K3-PFJ-522	5240	1.83	30.7	9.6	26
ZR28K3-PFJ-522	6970	2.33	39.2	12.9	27.3
ZR28K3E-PFJ-522	6970	2.33	39.2	12.9	27.3
ZR34K3-PF-J522	8260	2.83	46.1	13.6	29.5
ZR34K3E-PFJ-522	8260	2.83	46.1	13.6	29.5
ZR36K3-PFJ-522	8850	3	49.5	16.4	29.5
ZR40K3-PFJ-522	9620	3.33	54.19	17.1	32
ZR42K3-PFJ-522	10140	3.5	56.8	17.1	30
ZR47K3-PFJ-522	11500	3.9	64.1	19.3	32.6
ZR68KC-PFJ-522	16800	5.75	93	28.2	43.5
ZR28K3-TFD-522	6970	2.33	39.2	5	26
ZR28K3E-TFD-522	6970	2.33	39.2	5	26
ZR36K3-TFD-522	8850	3	49.5	5.7	29.5
ZR40K3-TFD-522	9260	3.33	51.2	6.4	32
ZR47KC-TFD-522	11400	3.9	63.2	7.2	32.6
ZR47KCE-TFD-522	11400	3.9	63.2	7.2	32.6
ZR48KC-TFD-522	11500	4.1	67.2	7.5	38
ZR48KCE-TFD-522	11500	4.1	67.2	7.5	38
ZR54KC-TFD-522	13000	4.5	73.2	8.2	35.5
ZR57KC-TFD-522	13660	4.75	76.9	8.2	36
ZR57KCE-TFD-522	13660	4.75	76	8.2	36
ZR61KC-TFD-522	14700	5	82.4	10	35.9
ZR61KCE-TFD-522	14700	5	82.4	10	35.9
ZR68KC-TFD-522	16500	5.75	93	10	38.2
ZR72KC-TFD-522	17800	6	98	10	38.2
ZR72KCE-TFD-522	17800	6	98	10	38.2
ZR81KC-TFD-522	19800	6.75	110.6	12	40
ZR81KCE-TFD-522	19800	6.75	110.6	12	40
ZR94KC-TFD-522	23000	8	127.2	16.2	59
ZR94KC-TFD-523	23200	8	127.2	16.2	58.2
ZR94KCE-TFD-523	23200	8	127.2	16.2	58.2
ZR108KC-TFD-522	26670	9	147.5	17.3	64
ZR108KCE-TFD-523	26670	9	147.5	17.3	64
ZR108KC-TFD-523	26900	9	144.5	17.3	62.7
ZR125KC-TFD-522	30660	10	171.4	19.2	64
ZR125KCE-TFD-523	31000	10	165.6	19.2	62.7
ZR125KC-TFD-523	31000	10	165.6	19.2	62.7
ZR144KC-TFD-522	34700	12	191.7	19.6	62.7
ZR144KCE-TFD-523	34700	12	191.7	19.6	62.7
ZR144KC-TFD-523	34700	12	191.7	19.6	62.7
ZR16M3-TWD-551	37700	13	204.3	25	103.1
ZR16M3E-TWD-551	37700	13	204.3	17.3	103
ZR19M3-TWD-551	45900	15	241.9	23.8	112.1
ZR19M3E-TWD-551	45900	15	241.9	23.8	119
