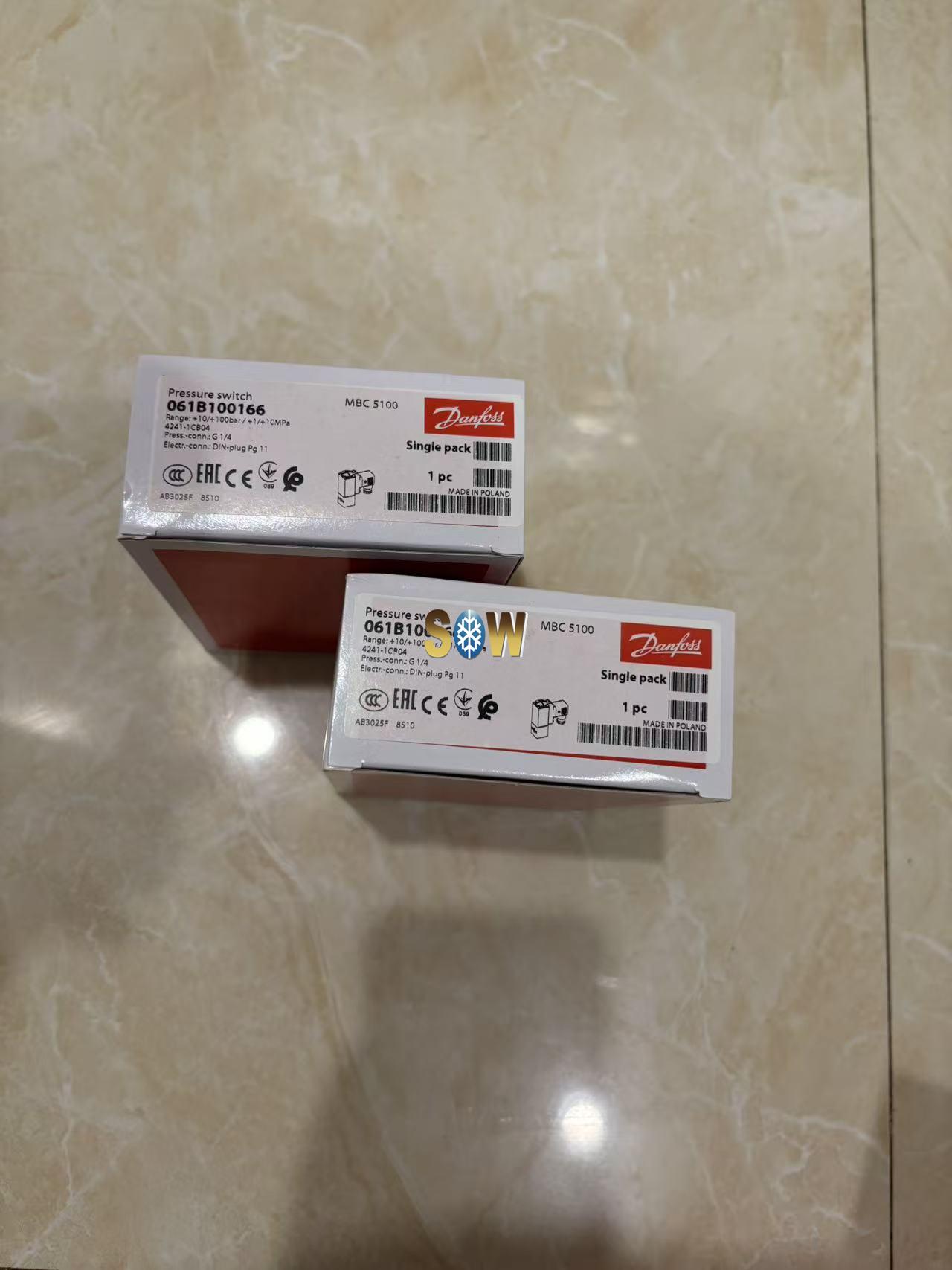

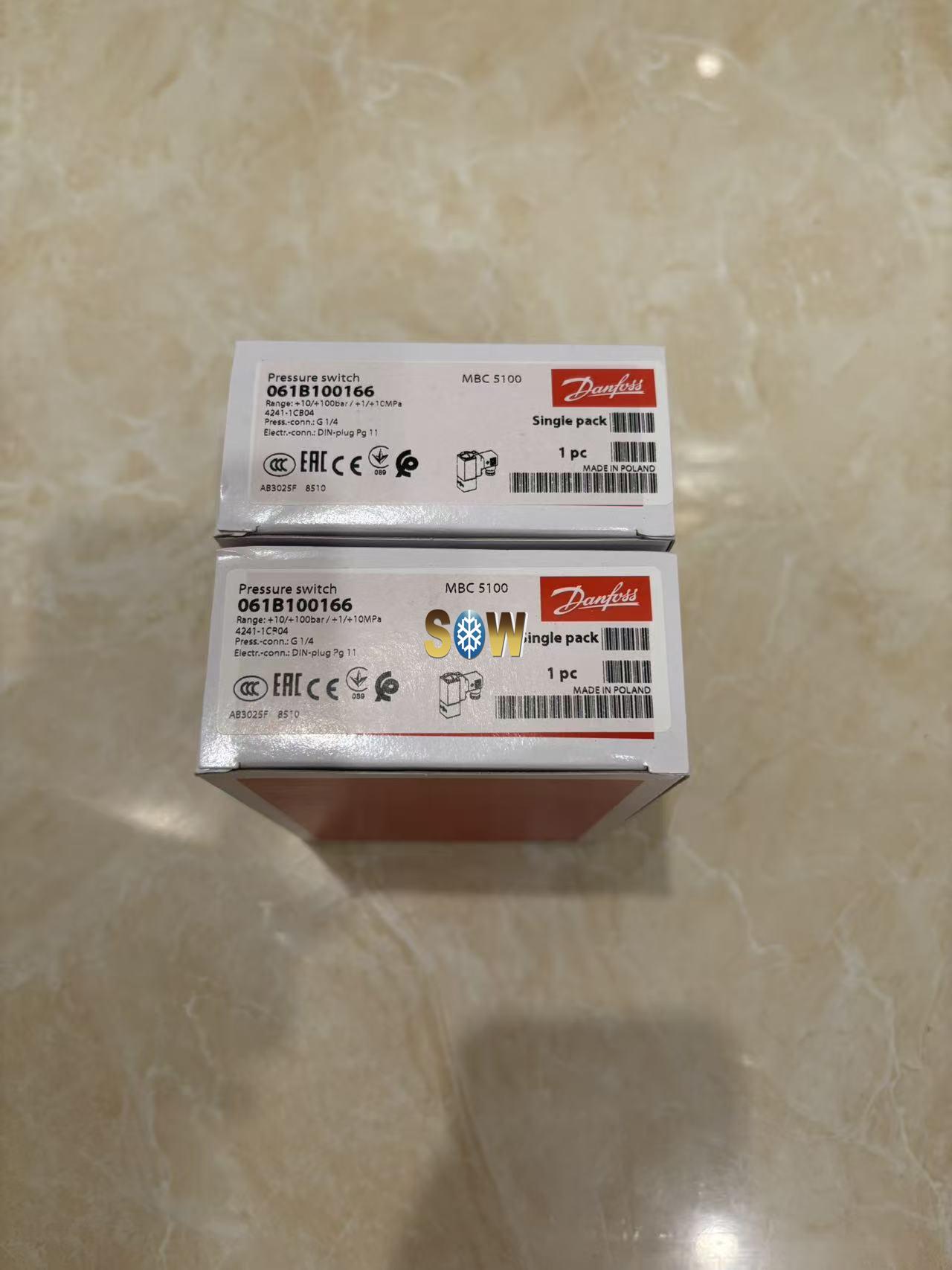

Name:	061B100166 Danfoss Pressure switch, MBC 5100
Brand:	Danfoss
Model No.:	MBC 5100
Part No.:	061B100166
Country of origion:	Poland
G.W:	0.296kgs/pc
Product Name Description:	Pressure switch
Max. Working Pressure [bar]:	150.0
Enclosure rating IP:	IP65
Pressure connection size:	1/4
Pressure connection type:	G
Reset function:	Auto
Regulation range [bar] Pe:	10.00 - 100.00

061B100166 Danfoss Pressure switch, MBC 5100

Product details

Gross weight	0.296 Kilogram
Net weight	0.248 Kilogram

Volume	0.703 Liter
EAN	5702423244478

Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-10 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	14 °F
Approval	ABS BV CCC CCS CE CMIM DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UKCA
Burst pressure [bar]	300 bar
China RoHS compliance	Yes
Contact function	SPDT
Contact rating	AC15=0.5 A, 250 V DC13=12 W, 125 V
Diff.@Max. range setting [bar]	12 bar
Diff.@Min. range setting [bar]	4 bar
Electrical conn. Male/Female	Female
Electrical connection	DIN-plug
Electrical connection size	Pg 11
Electrical connection standard	EN 175301-803-A
Electrical spec. standard	EN 60947-5
Enclosure rating IP	IP65
EU RoHS compliance	Out of scope
In scope of WEEE and contain batteries	No
Max. test pressure [bar] Pe	150 bar
Max. test pressure [psig]	2176 psig
Max. Working Pressure [bar]	150 bar
Max. Working Pressure [psig]	2175 psig

Other RoHS documentation	Saudi Arabia RoHS
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	ISO 228-1
Pressure connection type	G
Pressure Male/Female	Female
Pressure sensing element	Diaphragm
Product accessories	Switches accessories
Product description	Pressure Switch
Product group	Switches and thermostats
Product Name Description	Pressure switch
Quantity per packing format	32 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Regulation range [bar] Pe [max]	100 bar
Regulation range [bar] Pe [min]	10 bar
Regulation range [MPa] Pe [max]	10 MPa
Regulation range [MPa] Pe [min]	1 MPa
Reset function	Auto
SCIP dossier no.	c9549e84-c103-45b0-86ec-6021ce3385c8
Serviceable	No
Specification key	4241-1CB04
Type	MBC 5100
UK RoHS compliance	Out of scope
