Location:Index--->Product Center >> Danfoss Solenoid Valve >> Danfoss Solenoid Valve refrigeration system controls EVR10 032F1217 Flare

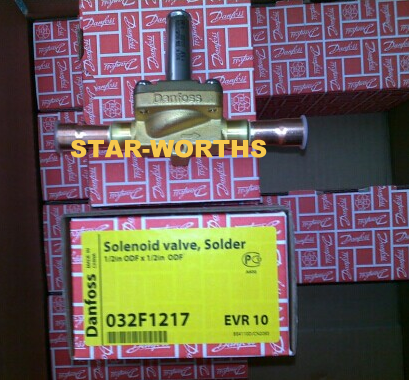

Name:	Danfoss Solenoid Valve refrigeration system controls EVR10 032F1217 Flare
Name:	EVR10 032F1217
Place of Origin:	China
Brand:	Danfoss
Actuator:	Electric
Connection Form:	Thread
Type:	Direct Acting
Refrigerant:	CFC HCFC HFC
Pressure:	High Temperature
Valve Structure:	Pilot Piston Structure
Power Supply:	AC
Usage:	Flow Control
Weight:	0.41kg
Application:	Industrial Usage, Household Usage

Product Description

Danfoss Solenoid Valve refrigeration system controls EVR10 032F1217 Flare

Specifications

Solenoid Valves can be used for air conditioning, refrigeration units and other industry systems

Complete range of solenoid valves for refrigeration, freezing and air conditioning plant

Supplied both normally closed (NC) and normally open (NO) with de-energized coil

Wide choice of coils for a. C. And d. C.
Suitable for all fluorinated refrigerants

Designed for media temperatures up to105 C

MOPD up to 25 bar with 12 W coil

Flare connections up to 5/8 in.

Solder connections up to 2 1/8 in.

Extended ends for soldering make installation easy It is not necessary to dismantle the valve when soldering in.

EVR are also available with flange connections

Solenoid valve & Coil
Type	Code
	EVR
Solenoid valve EVR 2	032F8056
Solenoid valve EVR 2	032F1201
Solenoid valve EVR 2	032F1202
Solenoid valve EVR 3	032F8116
Solenoid valve EVR 3	032F1204
Solenoid valve EVR 3	032F8107
Solenoid valve EVR 3	032F1206
Solenoid valve EVR 3	032F1207
Solenoid valve EVR 3	032F1208
Solenoid valve EVR 6	032F1209
Solenoid valve EVR 6	032F8072
Solenoid valve EVR 6	032F1212
Solenoid valve EVR 6	032F1213
Solenoid valve EVR 6	032F8079
Solenoid valve EVR 6	032F1236
Solenoid valve EVR 8	032F7122
Solenoid valve EVR 10	032F1214
Solenoid valve EVR 10	032F8095
Solenoid valve EVR 10	032F1217
Solenoid valve EVR 10	032F1218
Solenoid valve EVR 10	032F8098
Solenoid valve EVR 15	032F8101
Solenoid valve EVR 15	032F1227
Solenoid valve EVR 15	032F1228
Solenoid valve EVR 15	032F8100
Solenoid valve EVR 20	032F1240
Solenoid valve EVR 20	032F1244
Solenoid valve EVR 20	032F1245
Solenoid valve EVR 20	032F1264
Solenoid valve EVR 20	032F1254
Solenoid valve EVR 20	032F1274
Solenoid valve EVR 22	032F3267
Solenoid valve EVR 25	032F2200
Solenoid valve EVR 25	032F2201
Solenoid valve EVR 25	032F2205
Solenoid valve EVR 25	032F2206
Solenoid valve EVR 25	032F2207
Solenoid valve EVR 25	032F2208
Solenoid valve EVR 32	042H1103
Solenoid valve EVR 32	042H1104
Solenoid valve EVR 32	042H1105
Solenoid valve EVR 32	042H1106
Solenoid valve EVR 32	042H1107
Solenoid valve EVR 32	042H1108
Solenoid valve EVR 40	042H1109
Solenoid valve EVR 40	042H1110
Solenoid valve EVR 40	042H1111
Solenoid valve EVR 40	042H1112
Solenoid valve EVR 40	042H1113
Solenoid valve EVR 40	042H1114
Solenoid valve EVR 6 NO	032F8085
Solenoid valve EVR 6 NO	032F1290
Solenoid valve EVR 6 NO	032F1295
Solenoid valve & Coil
Solenoid valve EVR 10 NO	032F1291
Solenoid valve EVR 10 NO	032F8090
Solenoid valve EVR 10 NO	032F1296
Solenoid valve EVR 15 NO	032F8099
Solenoid valve EVR 15 NO	032F1299
Solenoid valve EVR 15 NO	032F3270
Solenoid valve EVR 20 NO	032F1260
Solenoid valve EVR 20 NO	032F1269
Solenoid valve EVR 20 NO	032F1279
Solenoid valve EVR 22 NO	032F3268
EVR 15 Solenoid valve without flange	032F1224
Solenoid valve EVR 15	032F1225
EVR 15 Solenoid valve without flange	032F1234
EVR 20 Solenoid valve without flange	032F1243
EVR 20 Solenoid valve without flange	032F1253
EVR 20 Solenoid valve without flange	032F1263
EVR 20 Solenoid valve without flange	032F1273
AC coil 24V50HZ	018F6257
AC coil 42V50HZ	018F6258
AC coil 48V50HZ	018F6259
AC coil 115V50HZ	018F6261
AC coil 220V50HZ	018F6251
AC coil 240V50HZ	018F6252
AC coil 380V50HZ	018F6253
AC coil 420V50HZ	018F6254
AC coil 24V60HZ	018F6265
AC coil 115V60HZ	018F6260
AC coil 220V60HZ	018F6264
AC coil 240V60HZ	018F6263
AC coil 110V50/60HZ	018F6280
AC coil 220V50/60HZ	018F6282
AC coil 12V50HZ 10W	018F6706
AC coil 24V50HZ 10W	018F6707
AC coil 42V50HZ 10W	018F6708
AC coil 48V50HZ 10W	018F6709
AC coil 115V50HZ 10W	018F6711
AC coil 220/230V 10W 50HZ	018F6701
AC coil 240V50HZ 10W with junction box	018F6702
AC coil 380/400V50HZ 10W	018F6703
AC coil 420V50HZ	018F6704
AC coil 24V60HZ	018F6715
AC coil 115V60HZ 10W	018F6710
AC coil 220V60HZ	018F6714
AC coil 240V/60HZ 10W	018F6713
AC coil 110V50/60HZ	018F6730
AC coil 220V50/60HZ	018F6732
AC coil 12V50HZ 10W	018F6181
AC coil 24V50HZ 10W	018F6182
AC coil 42V50HZ 10W	018F6183
AC coil 48V50HZ 10W	018F6184
AC coil 115V50HZ 10W	018F6186
AC coil 220/230V50HZ 10W	018F6176
AC coil 240V50HZ 10W	018F6177
